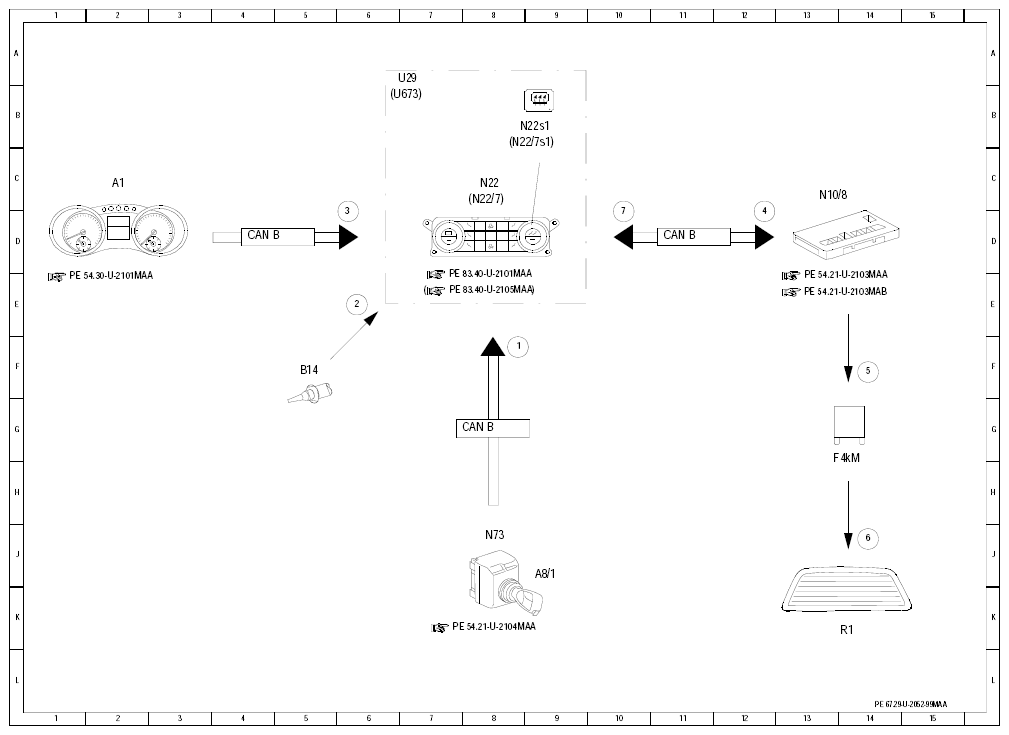

| 1 |
Circuit 15, status |
8 F |
| 2 |
Outside temperature, signal |
6 E |
| 3 |
Vehicle speed, signal |
6 D |
| 4 |
Heated rear window, request |
12 D |
| 5 |
Rear window heater relay, actuation |
14 F |
| 6 |
Rear window heater, actuation |
14 J |
| 7 |
Rear window heater status indication, signal |
10 D |
| A1 |
Instrument cluster |
2 C |
| A8/1 |
Transmitter key |
9 J |
| B14 |
Ambient temperature display temperature sensor |
5 F |
| CAN B |
Interior CAN |
4 D |
| CAN B |
Interior CAN |
7 G |
| CAN B |
Interior CAN |
11 D |
| F4kM |
Rear window defroster relay |
13 H |
| N10/8 |
Rear SAM control module |
13 C |
| N22 |
AAC push-button control module |
8 C |
| N22/7 |
Comfort AAC push-button control module |
8 C |
| N22/7s1 |
Rear window defroster switch |
8 C |
| N22s1 |
Rear window defroster switch |
8 B |
| N73 |
EIS [EZS] control unit |
8 J |
| R1 |
Heated rear window |
14 K |
| U29 |
Valid for AAC [KLA] |
6 B |
| U673 |
Valid for Comfort AAC [K-KLA] |
6 B |
