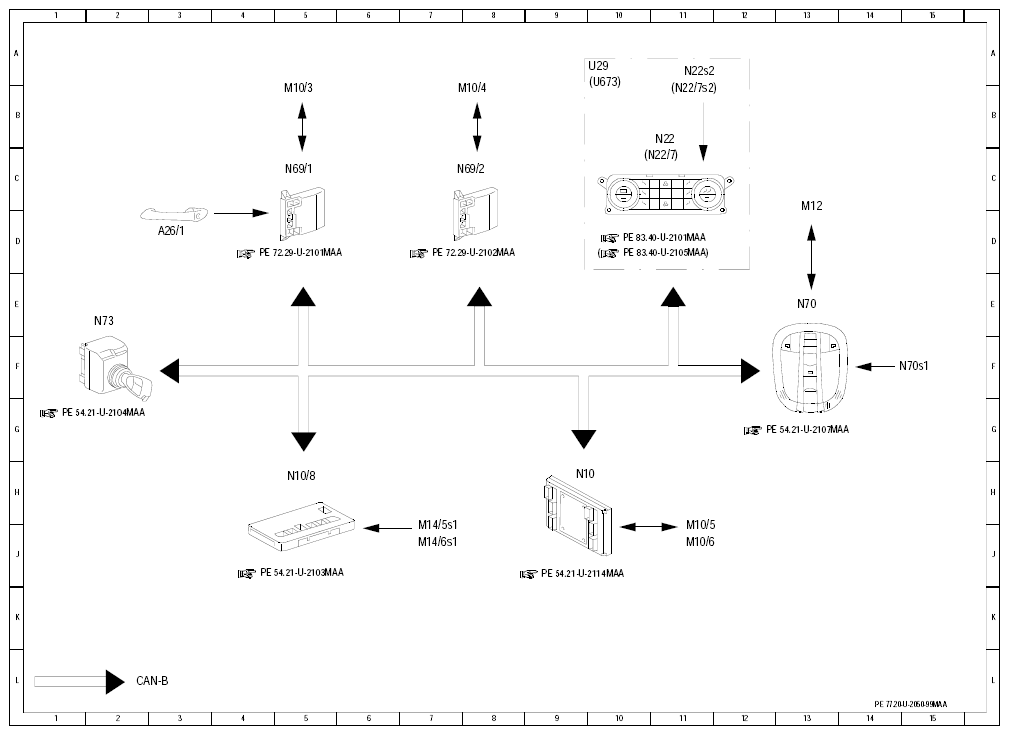

| A26/1 |
Left front IR receiver |
3 D |
| M10/3 |
Left front power window motor |
5 B |
| M10/4 |
Right front power window motor |
7 B |
| M10/5 |
Left rear power window motor |
11 J |
| M10/6 |
Right rear power window motor |
11 J |
| M12 |
Tilting/sliding roof (SR [SHD]) drive unit |
13 D |
| M14/5s1 |
Right front door rotary tumbler microswitch |
7 J |
| M14/6s1 |
Left front door rotary tumbler microswitch |
7 J |
| N10 |
Front SAM control unit |
9 H |
| N10/8 |
Rear SAM control unit |
5 H |
| N22 |
AAC [KLA] control and operating unit |
11 C |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
10 C |
| N22/7s2 |
Air recirculation switch |
11 B |
| N22s2 |
Air recirculation switch |
11 A |
| N69/1 |
Left front door control unit |
5 C |
| N69/2 |
Right front door control unit |
7 C |
| N70 |
Overhead control panel control unit |
13 E |
| N70s1 |
Roof switch |
14 F |
| N73 |
EIS [EZS] control unit |
2 E |
| U29 |
Valid for AAC [KLA] |
9 A |
| U673 |
Valid for comfort AAC [K-KLA] |
10 B |
