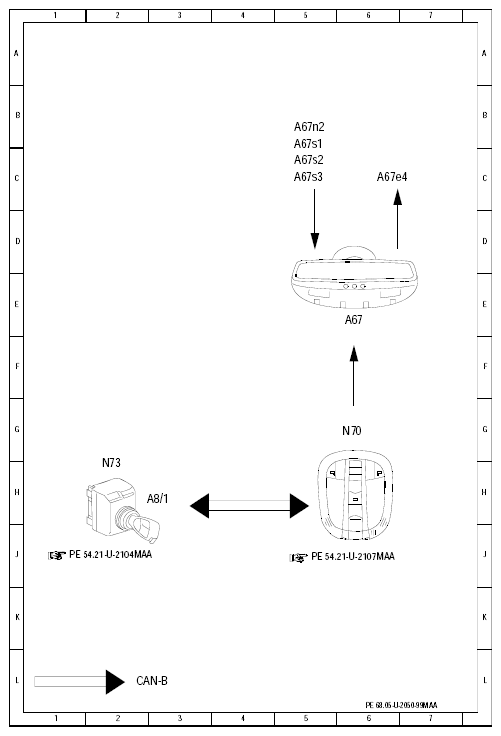

Function diagram of electrical system of garage door opener - PE68.05-U-2050-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| A67 | Interior rearview mirror unit | 6 E |
| A67e4 | Garage door opener indicator lamp | 6 C |
| A67n2 | Garage door opener transmitter unit (-A67n2-) | 5 B |
| A67s1 | Garage door opener push-button 1 | 5 C |
| A67s2 | Garage door opener push-button 2 | 5 C |
| A67s3 | Garage door opener push-button 3 | 5 C |
| A8/1 | Transmitter key | 2 H |
| N70 | Overhead control panel control module | 6 G |
| N73 | DI control module | 2 H |
