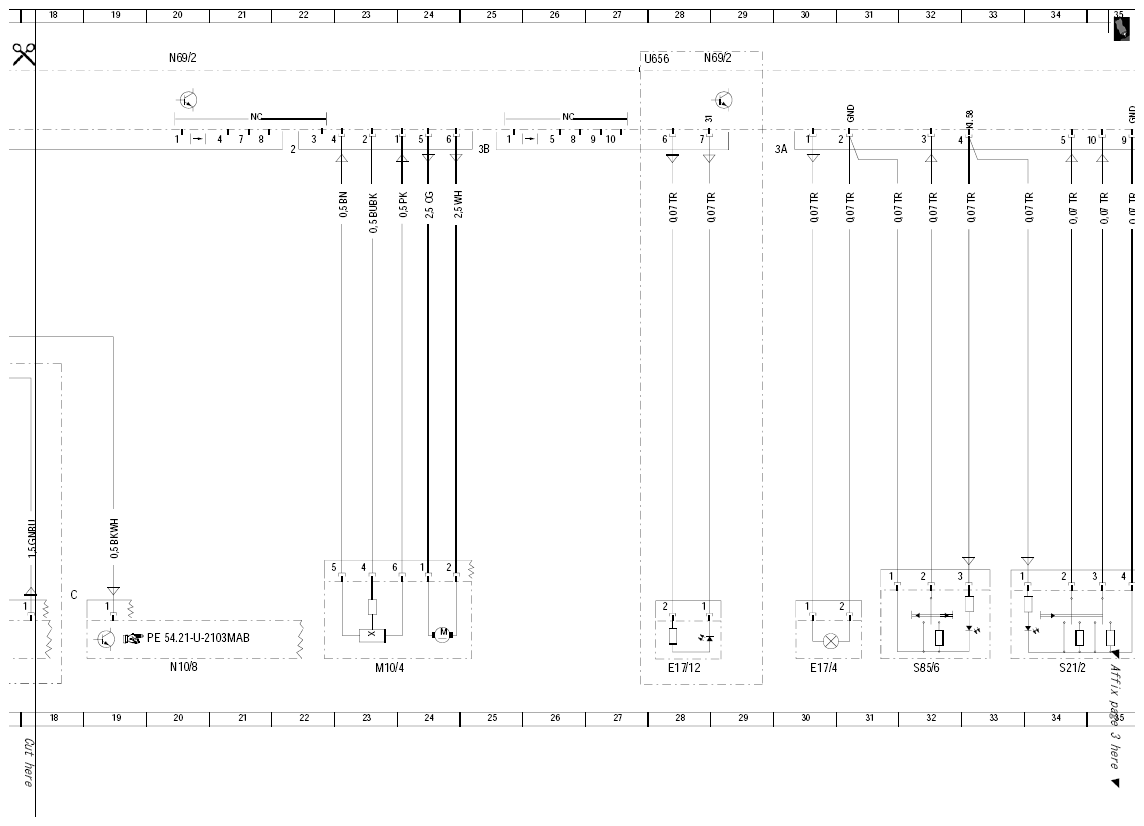

| E17/12 |
Right front door inside handle illumination |
28 L |
| E17/4 |
Right front door entrance/exit lamp |
30 L |

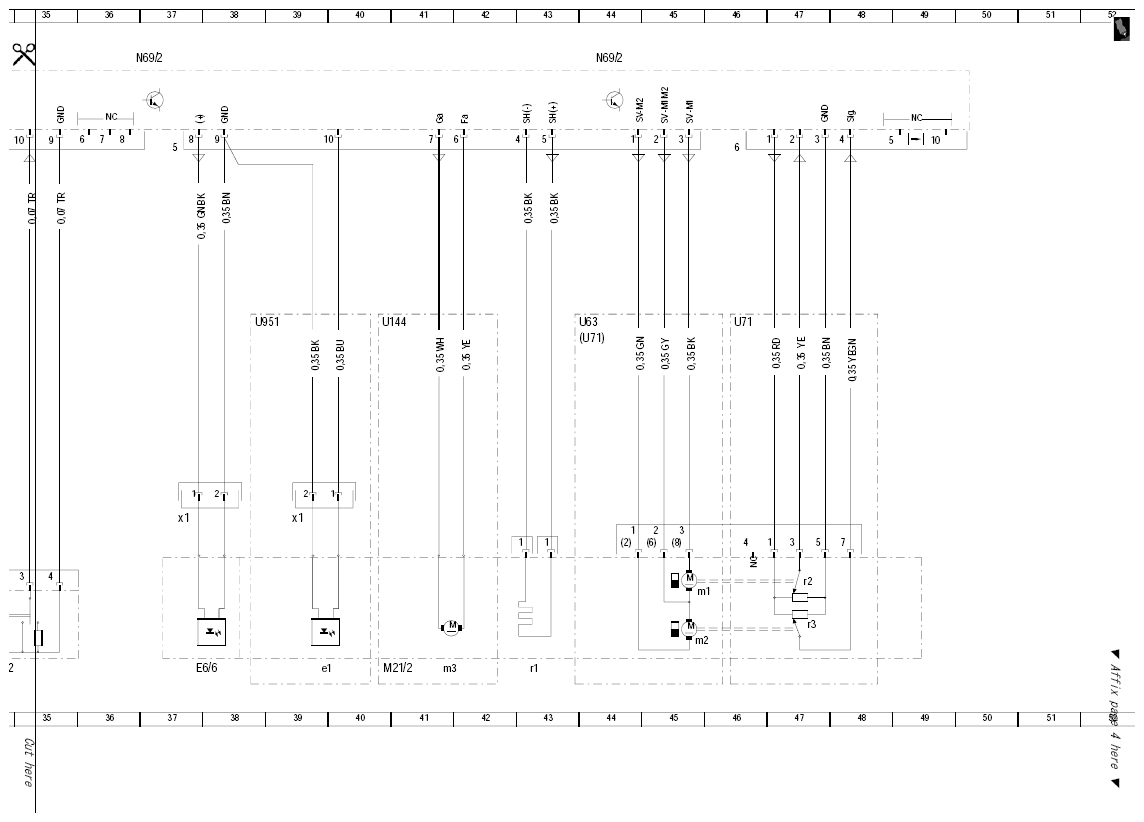

| E6/6 |
Right outside mirror turn signal lamp |
37 L |
| E6/6x1 |
Right outside mirror turn signal lamp electrical connector |
37 J |

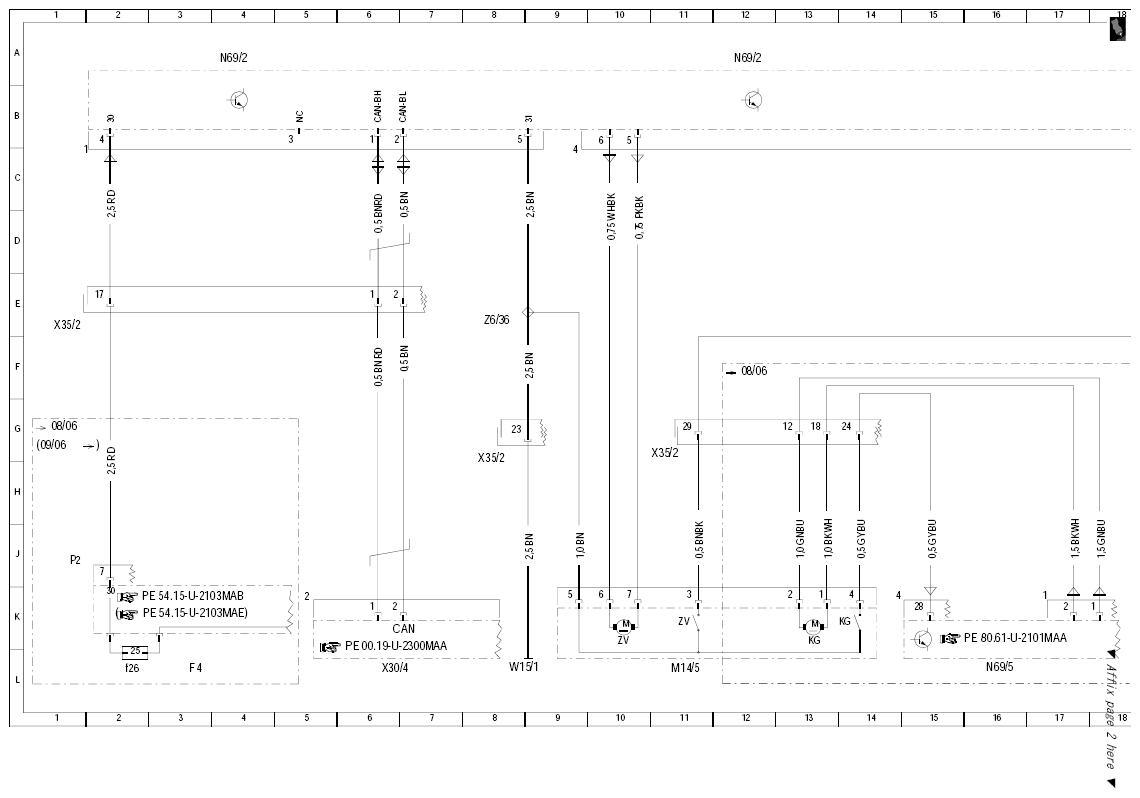

| F4 |
Load compartment fuse and relay box |
3 L |
| F4f26 |
Fuse 26 |
2 L |
| M10/4 |
Right front power window motor |
23 L |
| M14/5 |
Right front door CL [ZV] motor |
11 L |
| M21/2 |
Right electrically adjustable and heated outside mirror |
40 L |
| M21/2e1 |
Right outside mirror ambient lamp |
39 L |
| M21/2e1x1 |
Right outside mirror ambient lamp connector |
39 J |
| M21/2m1 |
Mirror up/down adjustment motor |
45 K |
| M21/2m2 |
Mirror in/out adjustment motor |
45 L |
| M21/2m3 |
Mirror fold-in motor |
41 L |
| M21/2r1 |
Mirror heater |
43 L |
| M21/2r2 |
Mirror up/down adjustment potentiometer |
47 K |
| M21/2r3 |
Mirror in/out adjustment potentiometer |
47 K |
| N10/8 |
Rear SAM control unit |
20 L |
| N69/2 |
Right front door control unit |
4 A |
| N69/2 |
Right front door control unit |
12 A |
| N69/2 |
Right front door control unit |
20 A |
| N69/2 |
Right front door control unit |
28 A |
| N69/2 |
Right front door control unit |
36 A |
| N69/2 |
Right front door control unit |
44 A |
| N69/5 |
KEYLESS-GO control unit |
16 L |
| S21/2 |
Front passenger power window switch |
34 L |
| S85/6 |
Right interior CL [ZV] switch |
32 L |
| U144 |
Valid for fold-out mirrors |
40 E |
| U63 |
Valid for seat adjustment without memory |
43 E |
| U656 |
Valid for interior light package |
27 A |
| U71 |
Valid for seat adjustment with memory |
43 F |
| U71 |
Valid for seat adjustment with memory |
46 E |
| U951 |
Valid for ambient lamps |
38 E |
| W15/1 |
Ground (right footwell) |
8 L |
| X30/4 |
Right voltage distributor (CAN) connector |
6 L |
| X35/2 |
Right front door separation point |
1 F |
| X35/2 |
Right front door separation point |
8 H |
| X35/2 |
Right front door separation point |
10 H |
| Z6/36 |
Right front door ground connector sleeve |
8 E |
