| 1 |
Circuit 15, status |
6 J |
| 1 |
Circuit 15, status |
6 B |
| 1 |
Circuit 15, status |
7 F |
| 1 |
Circuit 15, status |
15 F |
| 2 |
Door contact switch, status |
3 B |
| 2 |
Door contact switch, status |
5 J |
| 2 |
Door contact switch, status |
6 E |
| 2 |
Door contact switch, status |
16 E |
| 3 |
Power window switch, status |
4 K |
| 3 |
Power window switch, status |
7 G |
| 3 |
Power window switch, status |
17 F |
| 4 |
Power window motor, request |
6 G |
| 4 |
Power window motor, request |
16 H |
| 5 |
Power window motor, actuation |
2 J |
| 5 |
Power window motor, actuation |
7 E |
| 5 |
Power window motor, actuation |
18 F |
| 6 |
Power window motor, signal |
4 J |
| 6 |
Power window motor, signal |
6 E |
| 6 |
Power window motor, signal |
17 F |

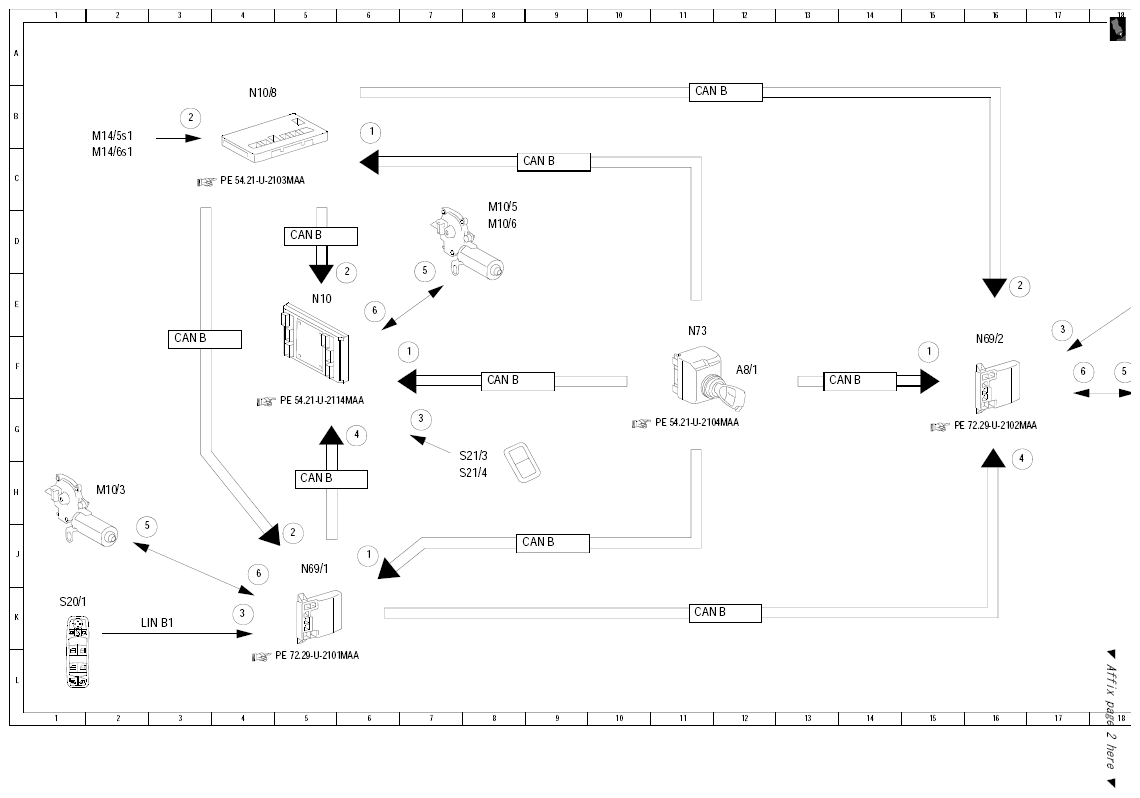

| A8/1 |
Transmitter key |
12 F |
| CAN B |
Interior CAN |
3 F |
| CAN B |
Interior CAN |
5 D |
| CAN B |
Interior CAN |
5 H |
| CAN B |
Interior CAN |
8 F |
| CAN B |
Interior CAN |
8 J |
| CAN B |
Interior CAN |
8 C |
| CAN B |
Interior CAN |
11 K |
| CAN B |
Interior CAN |
11 B |
| CAN B |
Interior CAN |
13 F |
| LIN B1 |
Front door LIN |
2 K |
| M10/3 |
Left front power window motor |
2 H |

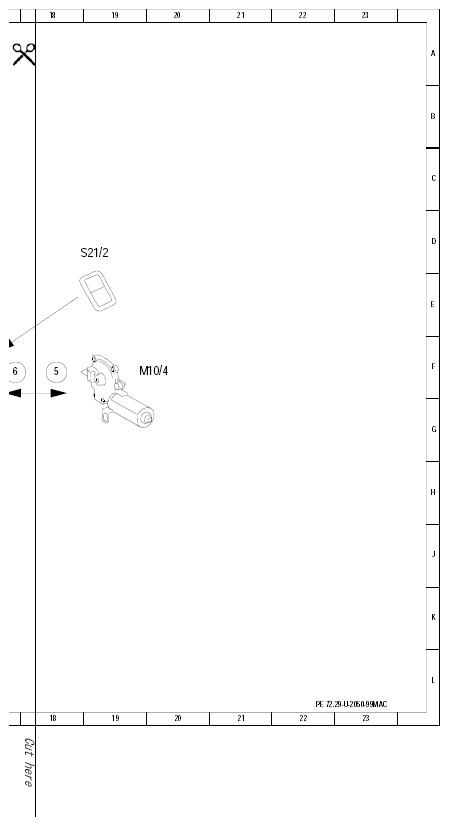

| M10/4 |
Right front power window motor |
19 F |
| M10/5 |
Left rear power window motor |
8 D |
| M10/6 |
Right rear power window motor |
8 D |
| M14/5s1 |
Right front door rotary tumbler microswitch |
2 B |
| M14/6s1 |
Left front door rotary tumbler microswitch |
2 C |
| N10 |
Front SAM control unit |
5 E |
| N10/8 |
Rear SAM control module |
4 B |
| N69/1 |
Left front door control module |
5 J |
| N69/2 |
Right front door control module |
16 F |
| N73 |
EIS [EZS] control unit |
11 F |
| S20/1 |
Power window and outside mirror adjustment switch group, driver |
1 K |
| S21/2 |
Front passenger power window switch |
18 D |
| S21/3 |
Left rear power window switch |
7 H |
| S21/4 |
Right rear power window switch |
7 H |
