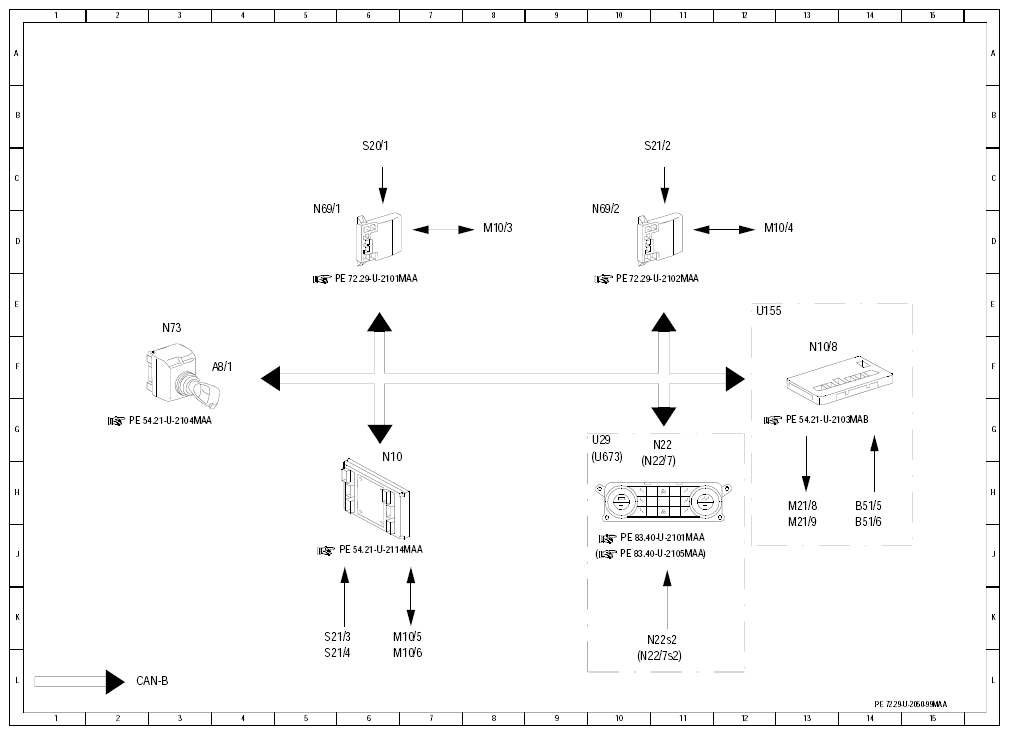

| A8/1 |
Transmitter key |
3 F |
| B51/5 |
Left vent window obstruction sensor strip |
14 H |
| B51/6 |
Right vent window obstruction sensor strip |
14 J |
| M10/3 |
Left front power window motor |
8 D |
| M10/4 |
Right front power window motor |
12 D |
| M10/5 |
Left rear power window motor |
6 K |
| M10/6 |
Right rear power window motor |
6 L |
| M21/8 |
Left vent window motor |
13 H |
| M21/9 |
Right vent window motor |
13 J |
| N10 |
Front SAM control unit |
6 H |
| N10/8 |
Rear SAM control module |
13 F |
| N22 |
AAC push-button control module |
11 G |
| N22/7 |
Comfort AAC push-button control module |
10 H |
| N22/7s2 |
Recirculated air switch |
10 L |
| N22s2 |
Recirculated air switch |
10 L |
| N69/1 |
Left front door control module |
5 D |
| N69/2 |
Right front door control module |
10 D |
| N73 |
DI control module |
3 F |
| S20/1 |
Power window and outside mirror adjustment switch group, driver |
6 C |
| S21/2 |
Front passenger power window switch |
10 C |
| S21/3 |
Left rear power window switch |
5 K |
| S21/4 |
Right rear power window switch |
5 L |
| U155 |
Valid for 164.8 |
12 E |
| U29 |
Valid for outside temperature indicator |
10 G |
| U673 |
Valid for Comfort AAC [K-KLA] |
10 H |
