Remove/install rear door lining - AR72.12-P-1010GZ

MODEL 164

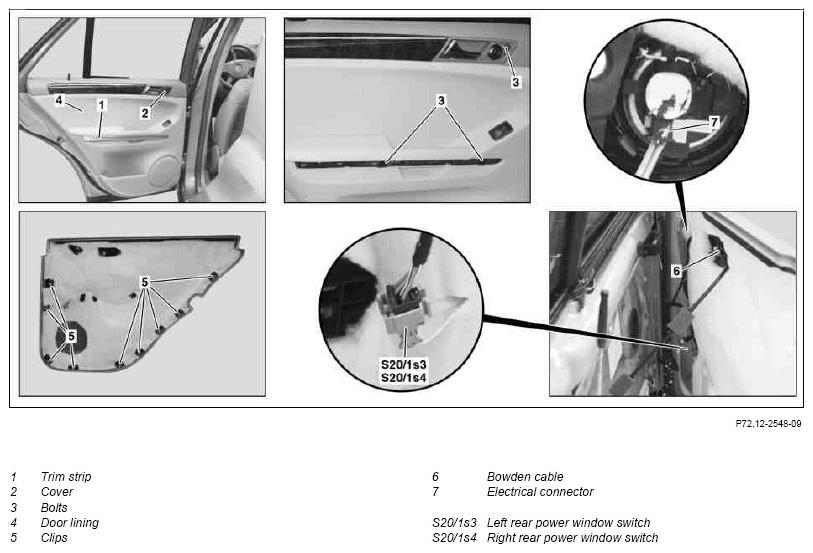

Fig 1: Identifying Rear Door Lining Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on 164.1

	Remove/install
1	Unclip trim strip (1)	Long wedge	Figure
2	Unclip cover (2)	Long wedge	Figure
3	Remove bolts (3)
4	Unclip door lining (4) from rear door	Position mounting wedge immediately next to clips (5) and carefully pry off door lining. Do not damage door lining and paint. Replace damaged clips.
		Mounting wedge	Figure
5	Remove Bowden cable (6) from door lining.	Do not kink Bowden cable.
6	Disconnect electrical connector (7)
7	Disconnect electrical connector from left rear power window switch (S20/1s3) or right rear power window switch (S20/1s4)	Do not damage ribbon cable!
8	Remove door lining.
9	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
