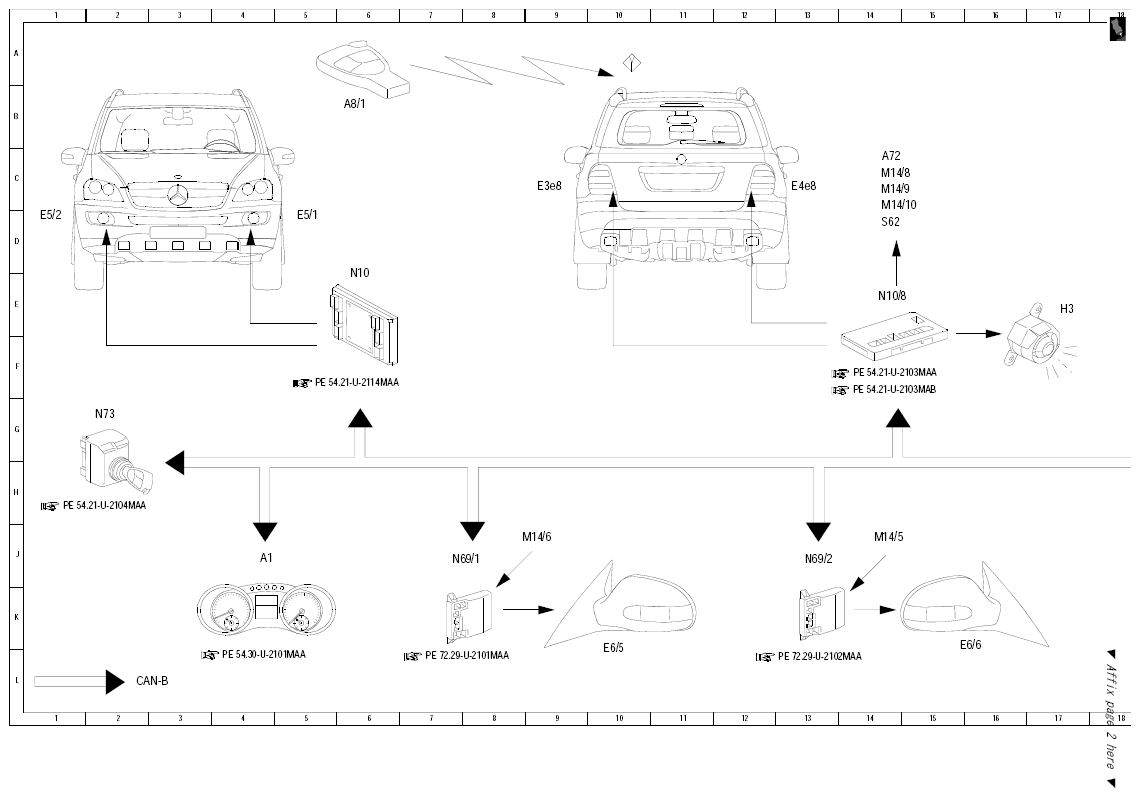

| A1 |
Instrument cluster |
4 J |
| A72 |
Rear door locking unit |
14 C |
| A8/1 |
Transmitter key |
6 B |
| E3e8 |
Left tail lamp, side-marker lamp, parking lamp |
9 C |
| E4e8 |
Right tail lamp, side-marker lamp, parking lamp |
13 C |
| E5/1 |
Left fog lamp |
5 D |
| E5/2 |
Right fog lamp |
1 D |
| E6/5 |
Left exterior mirror turn signal lamp |
10 L |
| E6/6 |
Right exterior mirror turn signal lamp |
15 L |
| H3 |
Alarm signal horn |
17 E |
| M14/10 |
Fuel filler flap CL motor |
14 D |
| M14/5 |
Right front door CL motor |
14 J |
| M14/6 |
Driver door CL motor |
8 J |
| M14/8 |
Left rear door CL motor |
14 C |
| M14/9 |
Right rear door CL motor |
14 C |
| N10 |
Front SAM control unit |
6 E |
| N10/8 |
Rear SAM control module |
14 E |
| N69/1 |
Left front door control module |
7 J |
| N69/2 |
Right front door control module |
13 J |

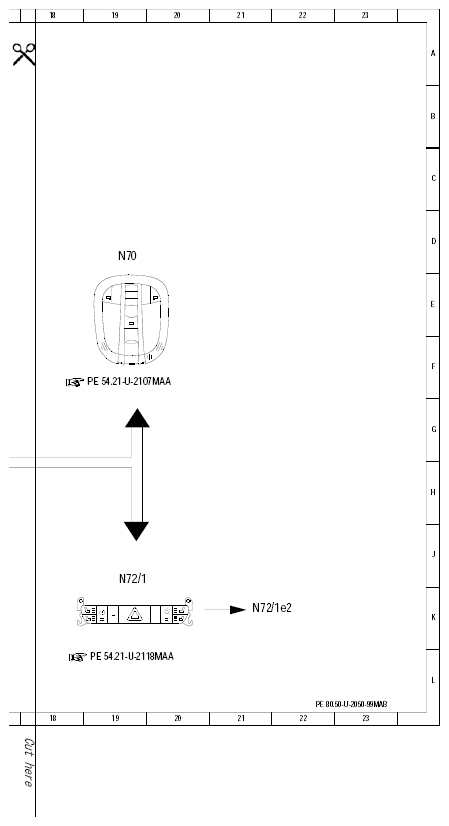

| N70 |
Overhead control panel control module |
19 D |
| N72/1 |
Upper control panel control module |
19 K |
| N72/1e2 |
ATA [EDW] function indicator |
21 K |
| N73 |
DI control module |
2 G |
| S62 |
ATA [EDW] hood switch |
14 D |
