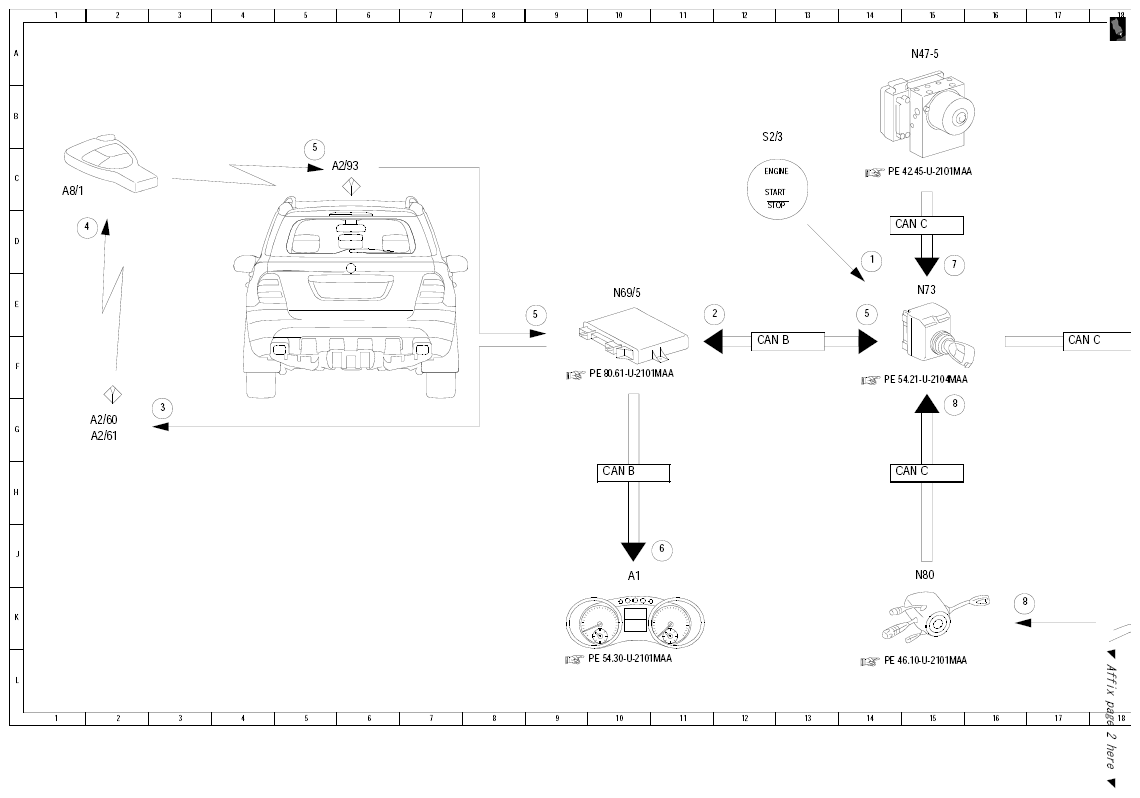

| 1 |
KEYLESS-GO start/stop button, status |
14 D |
| 10 |
Circuit 50, status |
19 E |
| 2 |
KEYLESS-GO control unit, request |
11 E |
| 3 |
KEYLESS-GO antenna, actuation |
3 G |
| 4 |
Transmitter key, request |
1 D |
| 5 |
Access authorization code, signal |
5 C |
| 5 |
Access authorization code, signal |
9 E |
| 5 |
Access authorization code, signal |
14 E |
| 6 |
Instrument cluster, message |
11 J |
| 7 |
Service brake, status |
15 E |
| 8 |
DIRECT SELECT gear selector switch, status |
15 G |
| 8 |
DIRECT SELECT gear selector switch, status |
16 K |
| 9 |
Circuit 15, status |
19 E |
| A1 |
Instrument cluster |
10 J |
| A2/60 |
Cockpit KEYLESS-GO antenna |
2 G |
| A2/61 |
Interior KEYLESS GO antenna |
2 G |
| A2/93 |
Roof antenna module |
5 C |
| A8/1 |
Transmitter key |
1 C |
| CAN B |
Interior CAN |
10 H |
| CAN B |
Interior CAN |
12 F |
| CAN C |
Engine compartment CAN |
14 H |
| CAN C |
Engine compartment CAN |
14 D |
| CAN C |
Engine compartment CAN |
17 F |

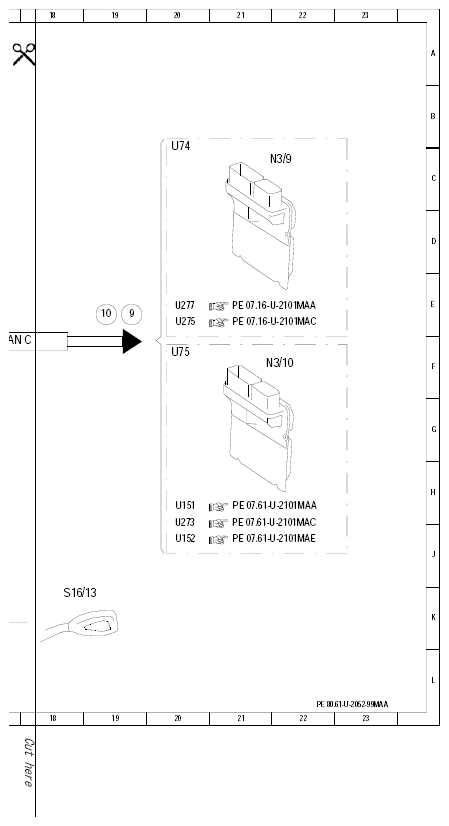

| N3/10 |
ME-SFI [ME] control module |
21 F |
| N3/9 |
CDI control module |
21 C |
| N47-5 |
ESP control module |
15 A |
| N69/5 |
KEYLESS GO control unit |
10 E |
| N73 |
EIS [EZS] control unit |
15 E |
| N80 |
Steering column module |
15 J |
| S16/13 |
Gear selector switch DIRECT SELECT |
18 K |
| S2/3 |
KEYLESS-GO start/stop button |
12 C |
| U151 |
Valid for engine 113 |
20 H |
| U152 |
Valid for engine 156 |
20 J |
| U273 |
Valid for engine 272 except 272.973, 273 |
20 J |
| U275 |
Valid for engine 642.8 |
20 E |
| U277 |
Valid for engine 642.9 |
20 E |
| U74 |
Valid for diesel vehicles |
20 C |
| U75 |
Valid for gasoline engines |
20 F |
