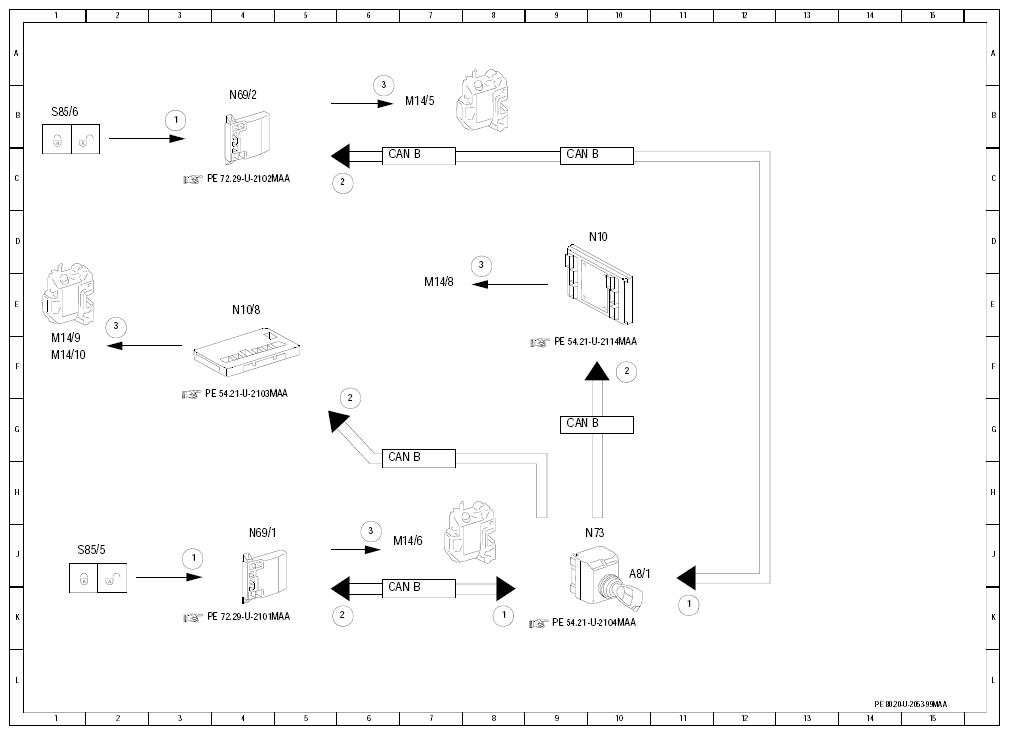

| 1 |
Lock/unlock central locking, request |
3 B |
| 1 |
Lock/unlock central locking, request |
3 J |
| 1 |
Lock/unlock central locking, request |
8 K |
| 1 |
Lock/unlock central locking, request |
11 K |
| 2 |
Open/close central locking, request |
6 K |
| 2 |
Open/close central locking, request |
6 C |
| 2 |
Open/close central locking, request |
6 G |
| 2 |
Open/close central locking, request |
10 F |
| 3 |
CL [ZV] motor, actuation |
2 E |
| 3 |
CL [ZV] motor, actuation |
6 J |
| 3 |
CL [ZV] motor, actuation |
6 B |
| 3 |
CL [ZV] motor, actuation |
8 E |
| A8/1 |
Transmitter key |
10 J |
| CAN B |
Interior CAN |
6 K |
| CAN B |
Interior CAN |
6 H |
| CAN B |
Interior CAN |
6 C |
| CAN B |
Interior CAN |
9 G |
| CAN B |
Interior CAN |
9 C |
| M14/10 |
Fuel filler flap CL motor |
1 F |
| M14/5 |
Right front door CL motor |
7 B |
| M14/6 |
Driver door CL motor |
6 J |
| M14/8 |
Left rear door CL motor |
7 E |
| M14/9 |
Right rear door CL motor |
1 F |
| N10 |
Front SAM control unit |
10 D |
| N10/8 |
Rear SAM control module |
4 E |
| N69/1 |
Left front door control module |
4 J |
| N69/2 |
Right front door control module |
4 B |
| N73 |
EIS [EZS] control unit |
9 J |
| S85/5 |
Left Interior CL [ZV] switch |
1 J |
| S85/6 |
Right Interior CL [ZV] switch |
1 B |
