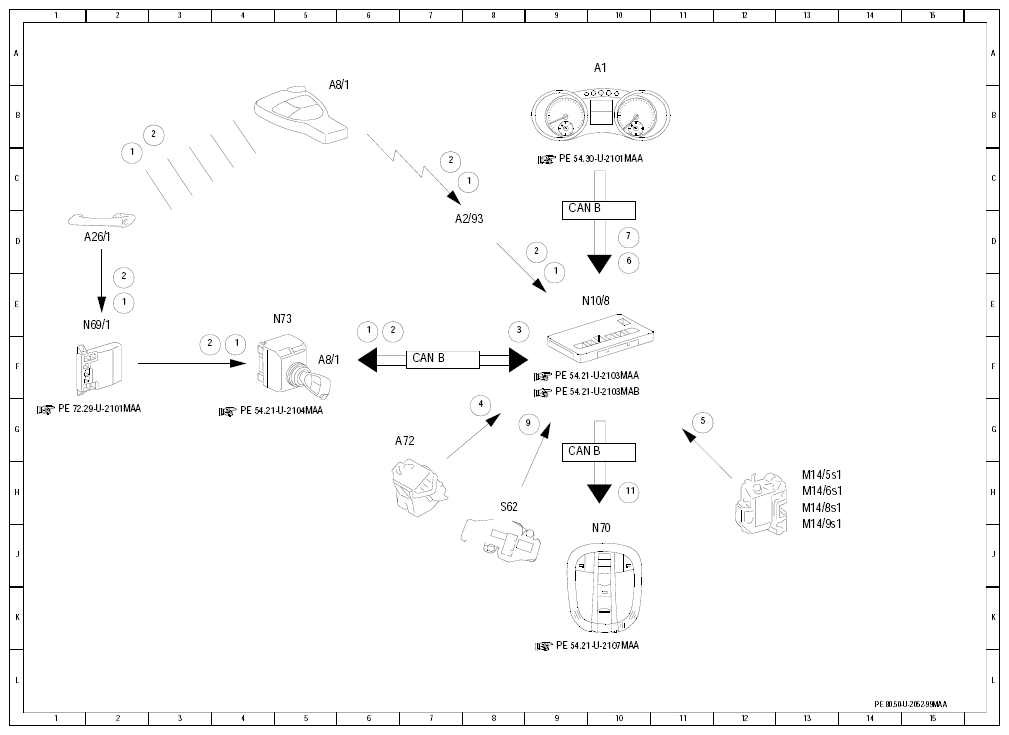

| 1 |
Access authorization code, signal |
2 E |
| 1 |
Access authorization code, signal |
2 C |
| 1 |
Access authorization code, signal |
4 F |
| 1 |
Access authorization code, signal |
6 F |
| 1 |
Access authorization code, signal |
8 C |
| 1 |
Access authorization code, signal |
9 E |
| 11 |
Activate interior protection, request |
10 H |
| 2 |
Lock/unlock central locking, request |
2 E |
| 2 |
Lock/unlock central locking, request |
3 B |
| 2 |
Lock/unlock central locking, request |
3 F |
| 2 |
Lock/unlock central locking, request |
6 F |
| 2 |
Lock/unlock central locking, request |
7 C |
| 2 |
Lock/unlock central locking, request |
9 D |
| 3 |
Central locking (CL[ZV]), status |
8 F |
| 4 |
Rear-end door locking unit, status |
8 G |
| 5 |
Door rotary tumbler switch, status |
11 G |
| 6 |
Interior protection deactivated, signal |
10 D |
| 7 |
Tow-away protection deactivated, signal |
10 D |
| 9 |
ATA [EDW] engine hood switch, status |
9 G |
| A1 |
Instrument cluster |
10 A |
| A2/93 |
Roof antenna module |
7 D |
| A26/1 |
Left front IR receiver |
1 D |
| A72 |
Rear door locking unit |
6 G |
| A8/1 |
Transmitter key |
5 F |
| A8/1 |
Transmitter key |
5 B |
| CAN B |
Interior CAN |
7 F |
| CAN B |
Interior CAN |
9 H |
| CAN B |
Interior CAN |
9 D |
| M14/5s1 |
Right front door rotary tumbler microswitch |
13 H |
| M14/6s1 |
Left front door rotary tumbler microswitch |
13 H |
| M14/8s1 |
Left rear door rotary tumbler microswitch |
13 H |
| M14/9s1 |
Right rear door rotary tumbler microswitch |
13 J |
| N10/8 |
Rear SAM control module |
9 E |
| N69/1 |
Left front door control module |
1 E |
| N70 |
Overhead control panel control module |
10 J |
| N73 |
EIS [EZS] control unit |
4 E |
| S62 |
ATA [EDW] hood switch |
8 H |
