Component description for the EZS control unit - GF80.57-P-6003GM

MODEL 164.1 as of model year 09/YoM 08 model refinement package

MODEL 164.8, 251.0/1 as of model year 09/YoM 08

Illustrated on model 251.0

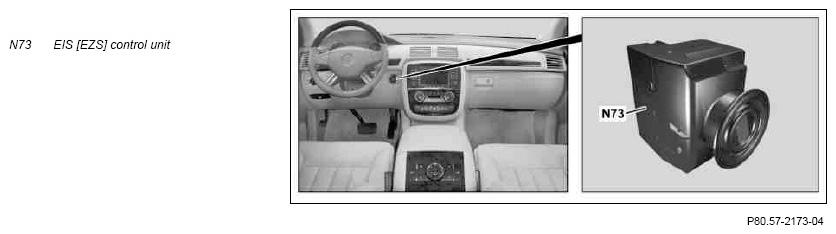

Fig 1: Identifying EIS (EZS) Control Unit - Shown On Model 251.0
G10117944Courtesy of MERCEDES-BENZ USA

Location

The EIS control unit is located on the right, next to the steering column.

Task

The EIS control unit has the following tasks:

Control of functions

The EIS control unit actuates the following functions:

Reading in of signals

The input factors are read in with the following connections:

Direct line

The following signals are read in via a direct line:

Interior CAN

The signals are read in by the EIS control unit via the interior CAN. The functions resulting therefrom, are described in the corresponding function descriptions (see block diagram or function schematic).

Engine compartment CAN

The signals are read in by the EIS control unit via the engine compartment CAN.

The functions resulting therefrom, are described in the corresponding function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.

Actuation of components

Components are actuated with the following lines:

Direct line

The following components are actuated via a direct line:

Interior CAN

The signals are transmitted by the EIS control unit via the interior CAN. The functions resulting therefrom, are described in the corresponding function descriptions (see block diagram or function schematic).

Engine compartment CAN

The signals transmitted by the EIS control unit via the engine compartment CAN. The functions resulting therefrom, are described in the corresponding function descriptions (see block diagram or function schematic).

Power supply for transmitter key

When the transmitter key is inserted into the EIS control unit, it switches on the inductive power transmission for power supply to the transmitter key.

Interface KEYLESS GO control unit

REFER TO SYSTEM WIRING DIAGRAMS Wiring diagram for electronic ignition switch (EIS) control unit Model 164 PE54.21-P-2104-99MAA
Model 251 PE54.21-P-2104-99RAA
