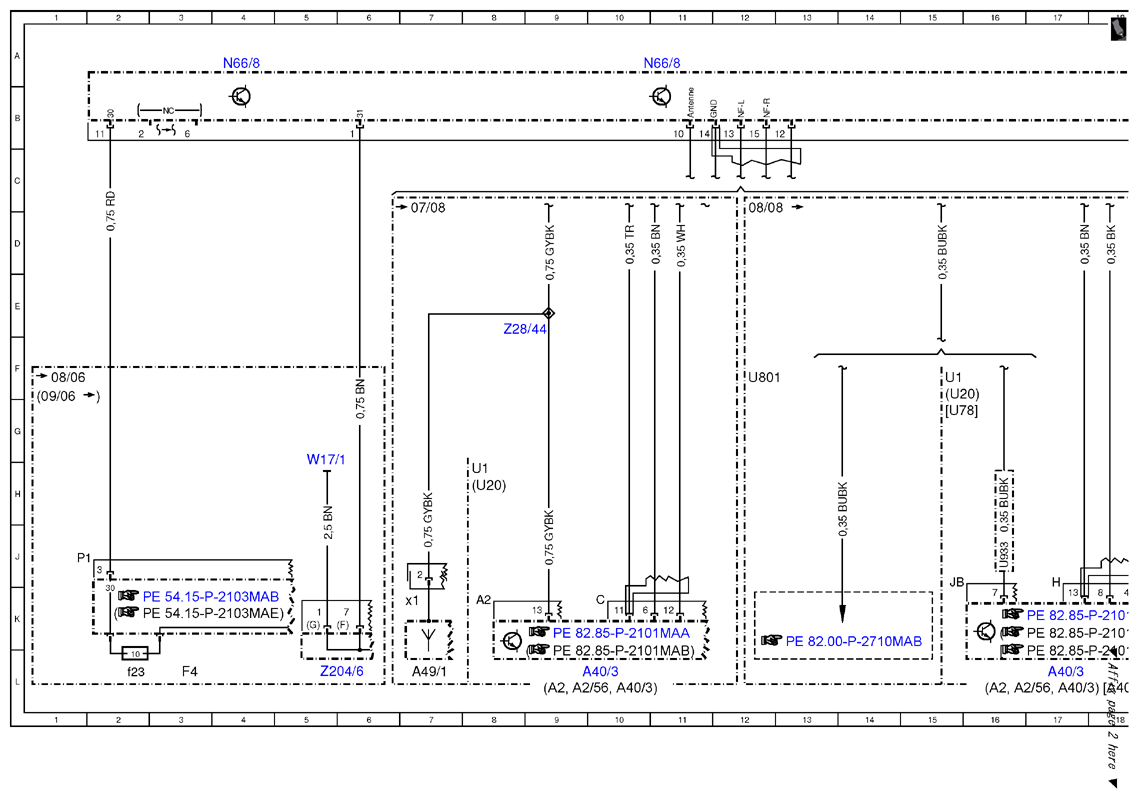

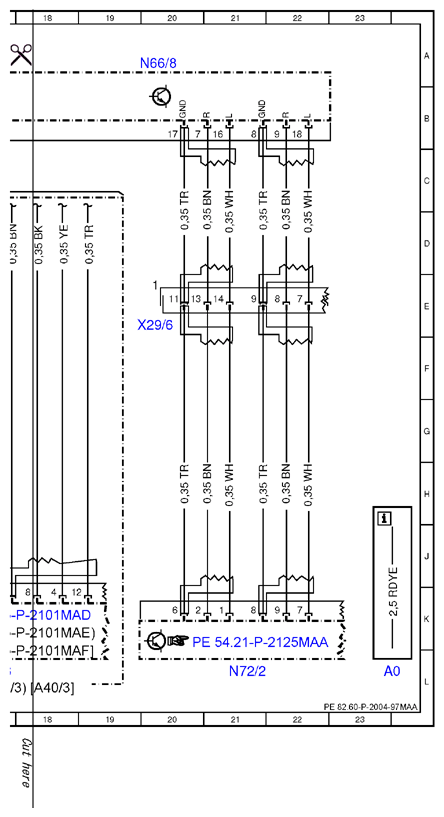

| A0 |
Color code key |
23L |
| A2 |
Radio |
9L |
| A2 |
Radio |
16L |
| A2/56 |
Radio and navigation unit |
9L |
| A2/56 |
Radio and navigation unit |
16L |
| A40/3 |
COMAND operating, display and control unit |
10L |
| A40/3 |
COMAND operating, display and control unit |
17L |
| A40/3 |
COMAND operating, display and control unit |
10L |
| A49/1 |
Interference filter 1 |
7L |
| A49/1x1 |
Interference filter 1 input connector |
7K |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f23 |
Fuse 23 |
2L |
| N66/8 |
Rear audio control unit |
4A |
| N66/8 |
Rear audio control unit |
20A |
| N66/8 |
Rear audio control unit |
11A |
| N72/2 |
RCP [HBF] control unit |
21L |
| U1 |
Valid for USA |
8H |
| U1 |
Valid for USA |
15F |
| U20 |
Valid for all (except USA Japan) |
8H |
| U20 |
Valid for all (except USA Japan) |
15F |
| U78 |
Valid for Japan |
15F |
| U801 |
Valid for UHI (Universal Portable CTEL Interface) |
12F |
| U933 |
Not valid for telephone |
16J |
| W17/1 |
Ground (left rear seat) |
5H |
| X29/6 |
Center console intermediate connector |
20E |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
5L |
| Z28/44 |
Antenna actuation connector sleeve |
9E |
