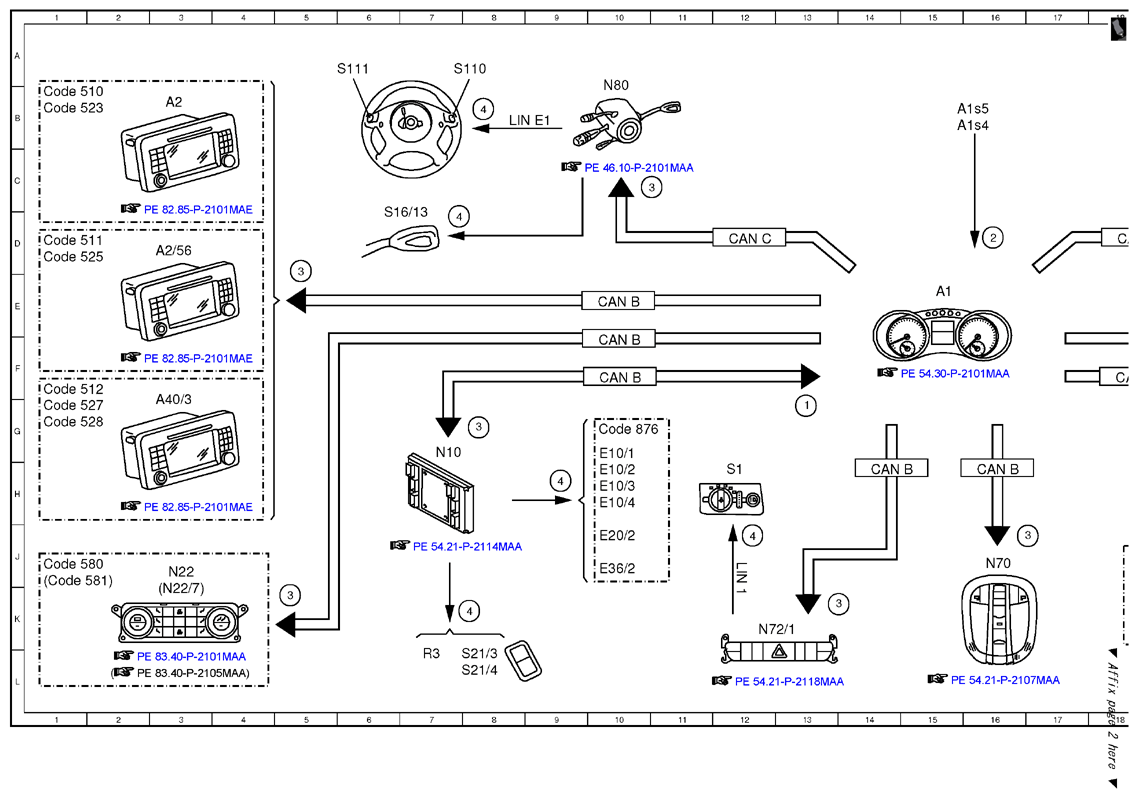

| 1 |
Circuit 58, status |
13G |
| 2 |
Instrument and switch illumination button, status |
16D |
| 3 |
Circuit 58d, status |
5E |
| 3 |
Circuit 58d, status |
17J |
| 3 |
Circuit 58d, status |
8G |
| 3 |
Circuit 58d, status |
24F |
| 3 |
Circuit 58d, status |
20C |
| 3 |
Circuit 58d, status |
10C |
| 3 |
Circuit 58d, status |
28K |
| 3 |
Circuit 58d, status |
5K |
| 3 |
Circuit 58d, status |
13K |
| 3 |
Circuit 58d, status |
20H |
| 4 |
Button/symbol illumination, actuation |
8B |
| 4 |
Button/symbol illumination, actuation |
7D |
| 4 |
Button/symbol illumination, actuation |
9H |
| 4 |
Button/symbol illumination, actuation |
8K |
| 4 |
Button/symbol illumination, actuation |
12J |
| 4 |
Button/symbol illumination, actuation |
25B |
| A1 |
Instrument cluster |
15E |
| A1s4 |
Instrument and controls illumination button, bright |
16B |
| A1s5 |
Instrument and controls illumination button, dim |
16B |
| A2 |
Radio |
3B |
| A2/56 |
Radio and navigation unit |
3D |
| A40/3 |
COMAND operating, display and control unit |
3G |
| A40/4 |
DVD player |
22H |
| A40/5 |
Left rear display |
28G |
| A40/6 |
Right rear display |
28G |
| A90/1 |
TV combination tuner (analog/digital) |
25H |
| CAN A |
Telematics CAN |
25L |
| CAN B |
Interior CAN |
14H |
| CAN B |
Interior CAN |
10F |
| CAN B |
Interior CAN |
16H |
| CAN B |
Interior CAN |
20F |
| CAN B |
Interior CAN |
10F |
| CAN B |
Interior CAN |
10E |
| CAN B |
Interior CAN |
18D |
| CAN C |
Engine compartment CAN |
12D |
| Code 430 |
Off-road engineering package |
18J |
| Code 510 |
Audio 20 with CD changer |
1B |
| Code 511 |
Audio 50 APS incl. DVD changer |
1D |
| Code 512 |
COMAND APS with DVD changer |
1F |
| Code 523 |
Audio 20 radio |
1B |
| Code 525 |
Audio 50 APS radio (CD) |
1D |
| Code 527 |
COMAND APS (with navigation) |
1G |
| Code 528 |
HIGH Class USA |
1G |
| Code 580 |
Automatic air conditioning |
1J |
| Code 581 |
Comfort automatic air conditioning |
1J |
| Code 863 |
Digital/analog TV tuner |
24G |
| Code 864 |
Rear entertainment system |
21G |
| Code 876 |
Interior lights package |
10G |
| Code 890 |
Automatic rear-end door |
23C |

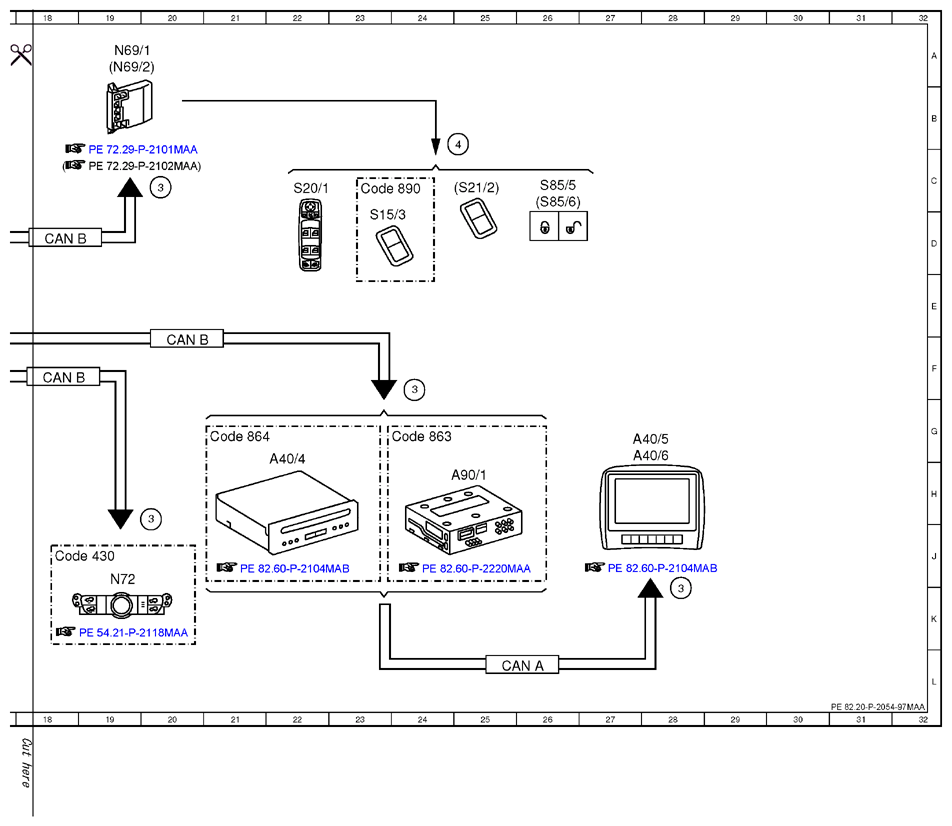

| E10/1 |
Left center air outlet illumination |
10G |
| E10/2 |
Left air outlet illumination |
10H |
| E10/3 |
Right air outlet illumination |
10H |
| E10/4 |
Right center air outlet illumination |
10H |
| E20/2 |
Front center console cup holder illumination |
10J |
| E36/2 |
Front center console illumination |
10J |
| LIN 1 |
Instrument panel LIN |
12J |
| LIN E1 |
Steering LIN |
8B |
| N10 |
Front SAM control unit |
7G |
| N22 |
AAC [KLA] control and operating unit |
3J |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
3J |
| N69/1 |
Left front door control unit |
19A |
| N69/2 |
Right front door control unit |
19A |
| N70 |
Overhead control panel control unit |
16J |
| N72 |
Lower control panel control unit |
19J |
| N72/1 |
Upper control panel control unit |
12K |
| N80 |
Steering column module |
10B |
| R3 |
Front cigar lighter (with ashtray illumination) |
7L |
| S1 |
Rotary light switch |
12H |
| S110 |
Left multifunction steering wheel button group |
8A |
| S111 |
Right multifunction steering wheel button group |
6A |
| S15/3 |
Rear-end door open/close switch, driver |
23D |
| S16/13 |
Gear selector switch DIRECT SELECT |
6D |
| S20/1 |
Power window and outside mirror adjustment switch group, driver |
22C |
| S21/2 |
Front passenger power window switch |
25C |
| S21/3 |
Left rear power window switch |
7L |
| S21/4 |
Right rear power window switch |
7L |
| S85/5 |
Left interior CL [ZV] switch |
26C |
| S85/6 |
Right interior CL [ZV] switch |
26C |
