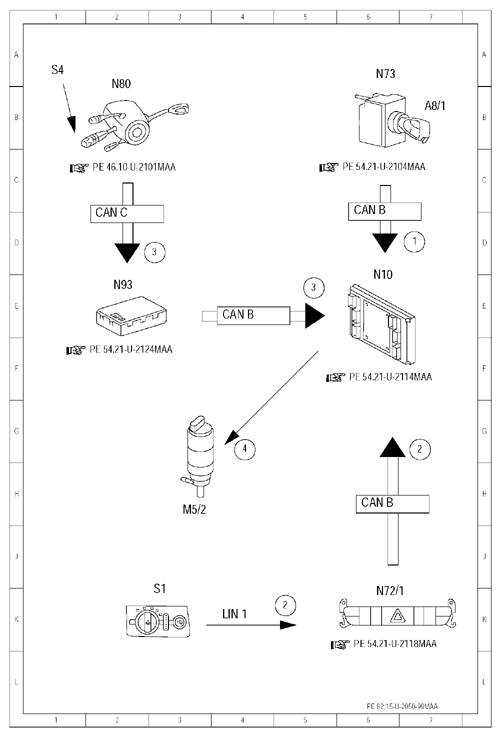

| 1 |
Circuit 15, status |
7 D |
| 2 |
Rotary light switch, status |
5 K |
| 2 |
Rotary light switch, status |
7 G |
| 3 |
Combination switch, switch position |
3 D |
| 3 |
Combination switch, switch position |
5 E |
| 4 |
HCS [SRA] pump, actuation |
4 G |
| A8/1 |
Transmitter key |
7 B |
| CAN B |
Interior CAN |
4 E |
| CAN B |
Interior CAN |
6 D |
| CAN B |
Interior CAN |
6 H |
| CAN C |
Engine compartment CAN |
2 D |
| LIN 1 |
Instrument panel LIN |
4 K |
| M5/2 |
HCS pump |
3 H |
| N10 |
Front SAM control unit |
6 E |
| N72/1 |
Upper control panel control module |
6 K |
| N73 |
EIS [EZS] control unit |
6 A |
| N80 |
Steering column module |
2 B |
| N93 |
Central gateway control module |
2 E |
| S1 |
Exterior lamp switch |
3 K |
| S4 |
Combination switch |
1 A |
