Electrical system function diagram for windshield wiper - PE82.30-U-2050-99MAA

Code:	Designation:	Position:
A1	Instrument cluster	3 F
A80	Intelligent servo module for DIRECT SELECT	20 J
B38/2	Rain/light sensor	9 H
M14/5s1	Right front door rotary tumbler microswitch	17 C
M14/6s1	Left front door rotary tumbler microswitch	17 C
M5/1	Windshield washer fluid pump	7 B
M6/1	Wiper motor	10 D
M6/4	Tailgate wiper motor	17 C
N10	Front SAM control unit	6 C
N10/8	Rear SAM control module	14 C
N70	Overhead control panel control module	6 H
N73	DI control module	11 J
N80	Steering column module	17 F
N93	Central gateway control module	14 J
S4	Combination switch	21 F

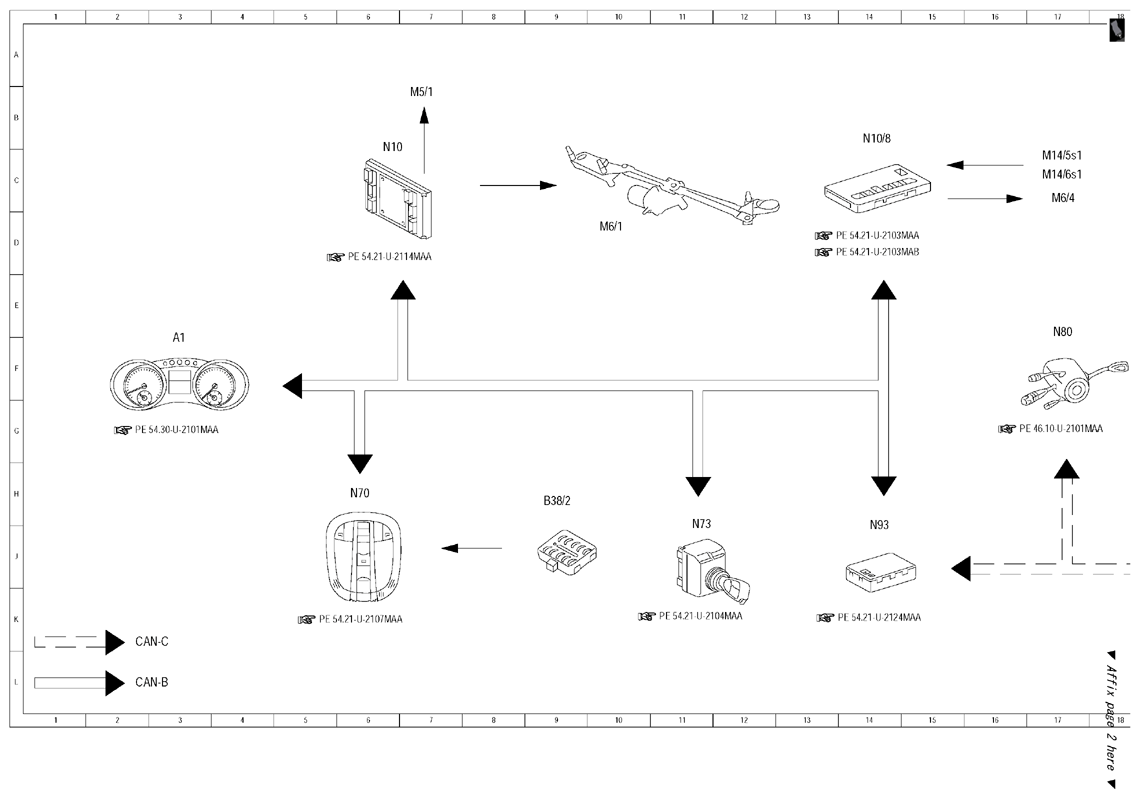

Fig 1: Windshield Wiper Electrical System Function Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

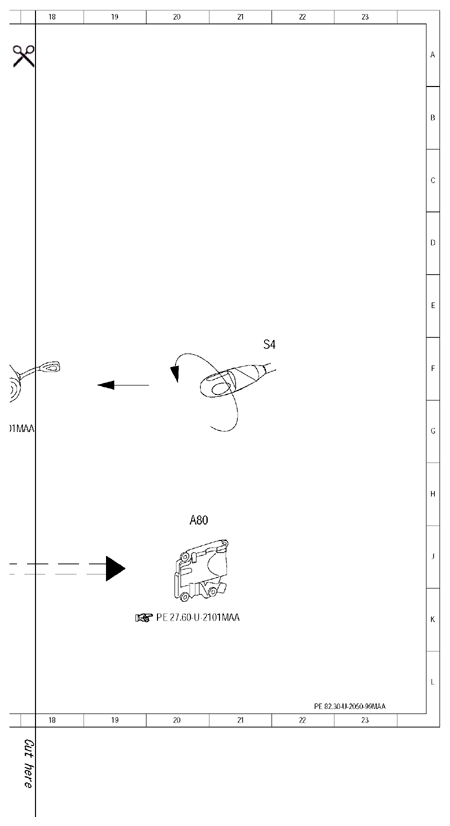

Fig 2: Windshield Wiper Electrical System Function Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
