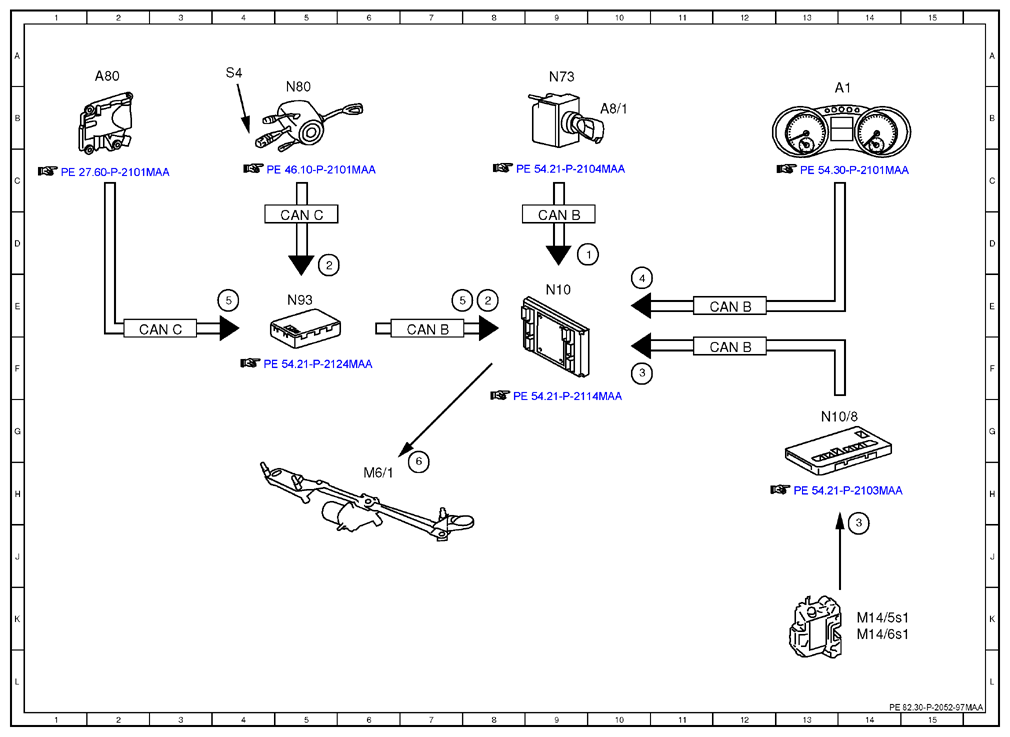

| 1 |
Circuit 15, status |
9D |
| 2 |
Combination switch, status |
5D |
| 2 |
Combination switch, status |
8E |
| 3 |
Rotary tumbler microswitch, status |
10F |
| 3 |
Rotary tumbler microswitch, status |
14H |
| 4 |
Vehicle speed, signal |
10E |
| 5 |
Reverse gear, status |
7E |
| 5 |
Reverse gear, status |
4E |
| 6 |
Wiper motor, actuation |
7G |
| A1 |
Instrument cluster |
14B |
| A8/1 |
Transmitter key |
10B |
| A80 |
Intelligent servo module for DIRECT SELECT |
2A |
| CAN B |
Interior CAN |
7E |
| CAN B |
Interior CAN |
11E |
| CAN B |
Interior CAN |
11F |
| CAN B |
Interior CAN |
9C |
| CAN C |
Engine compartment CAN |
3E |
| CAN C |
Engine compartment CAN |
7E |
| M14/5s1 |
Right front door rotary tumbler microswitch |
14K |
| M14/6s1 |
Left front door rotary tumbler microswitch |
14K |
| M6/1 |
Wiper motor |
6H |
| N10 |
Front SAM control unit |
9E |
| N10/8 |
Rear SAM control unit |
13G |
| N73 |
EIS [EZS] control unit |
9A |
| N80 |
Steering column module |
5B |
| N93 |
Central gateway control unit |
5E |
| S4 |
Combination switch |
4A |
