Electrical function schematic for windshield wipers - PE82.30-P-2050-97MAA

Code:	Designation:	Position:
A1	Instrument cluster	3F
A80	Intelligent servo module for DIRECT SELECT	20J
B38/2	Rain/light sensor	9H
M14/5s1	Right front door rotary tumbler microswitch	17C
M14/6s1	Left front door rotary tumbler microswitch	17C
M5/1	Windshield washer fluid pump	7B
M6/1	Wiper motor	10D
M6/4	Tailgate wiper motor	17C
N10	Front SAM control unit	6C
N10/8	Rear SAM control unit	14B
N70	Overhead control panel control unit	6H
N73	EIS [EZS] control unit	11J
N80	Steering column module	17F
N93	Central gateway control unit	14J
S4	Combination switch	21F

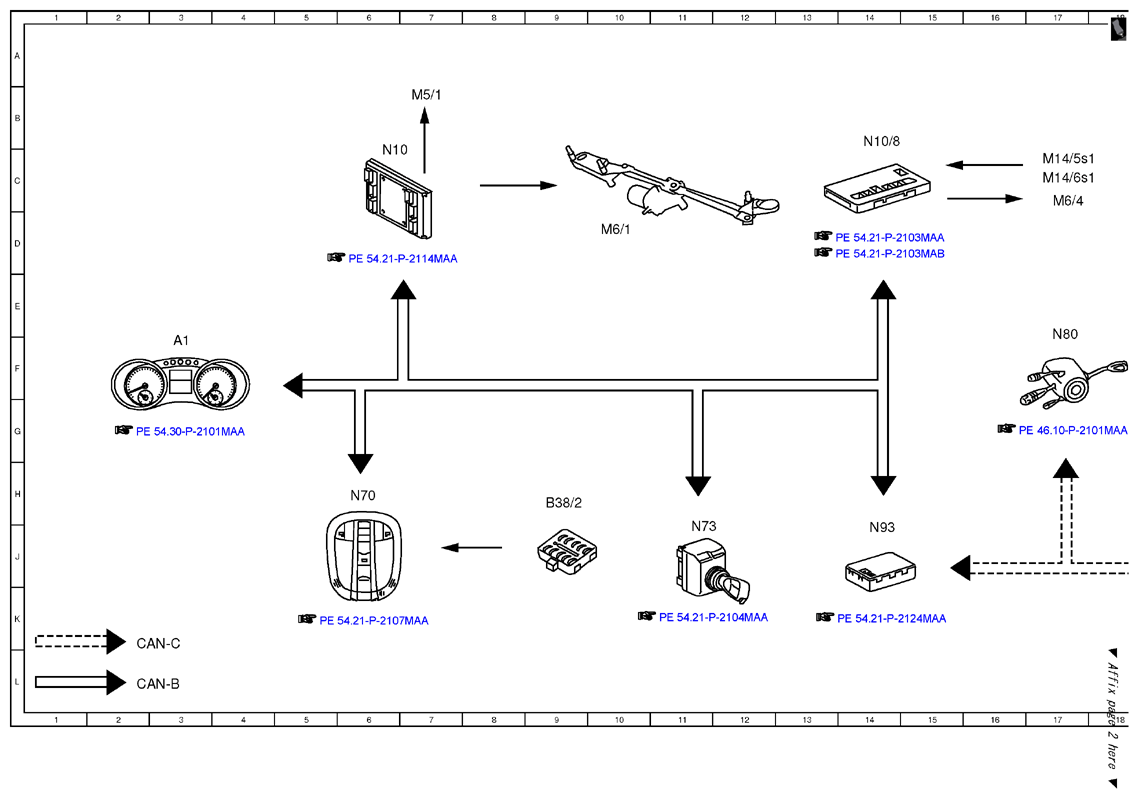

Fig 1: Windshield Wipers Electrical Function Schematic (1 Of 2)

Courtesy of MERCEDES-BENZ USA

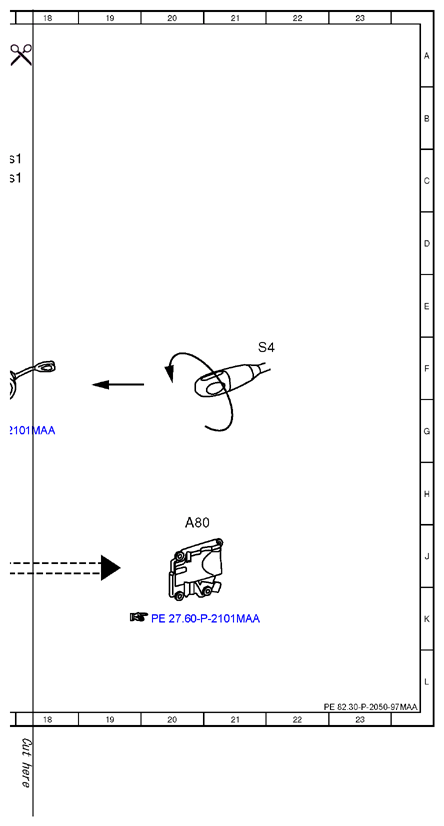

Fig 2: Windshield Wipers Electrical Function Schematic (2 Of 2)

Courtesy of MERCEDES-BENZ USA
