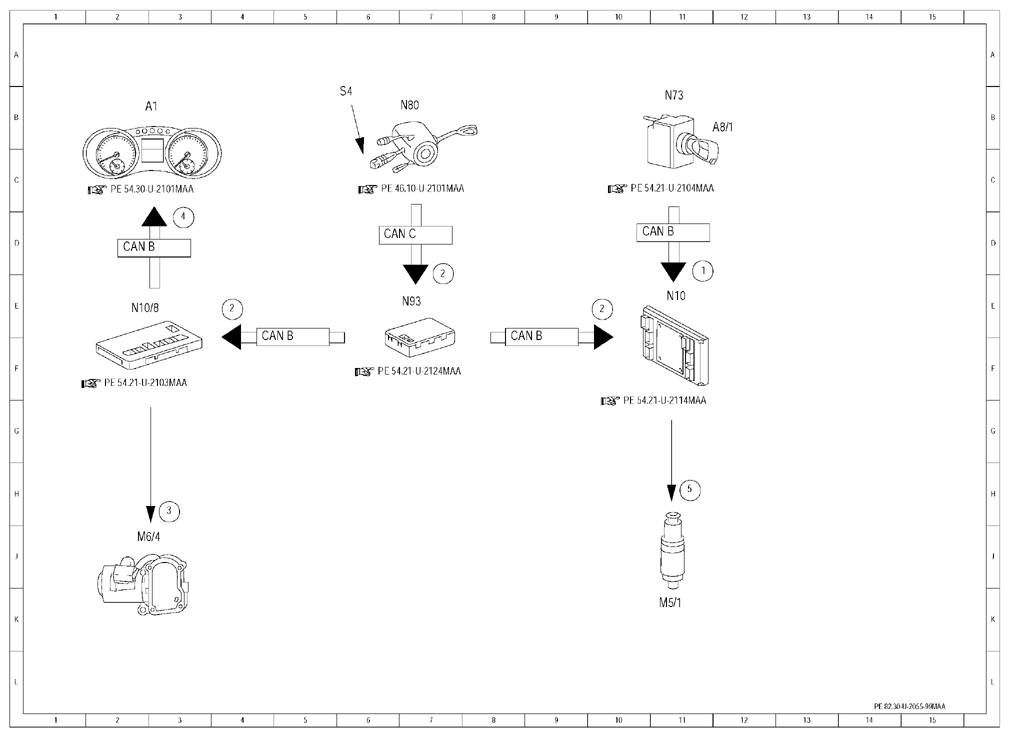

| 1 |
Circuit 15, status |
11 E |
| 2 |
Combination switch, switch position |
4 E |
| 2 |
Combination switch, switch position |
7 E |
| 2 |
Combination switch, switch position |
10 E |
| 3 |
Rear-end door wiper motor, actuation |
3 H |
| 4 |
Instrument cluster, message |
3 D |
| 5 |
Windshield washer system pump, actuation |
11 H |
| A1 |
Instrument cluster |
2 B |
| A8/1 |
Transmitter key |
11 B |
| CAN B |
Interior CAN |
2 D |
| CAN B |
Interior CAN |
4 F |
| CAN B |
Interior CAN |
8 F |
| CAN B |
Interior CAN |
10 D |
| CAN C |
Engine compartment CAN |
6 D |
| M5/1 |
Windshield washer fluid pump |
11 K |
| M6/4 |
Tailgate wiper motor |
2 J |
| N10 |
Front SAM control unit |
11 E |
| N10/8 |
Rear SAM control module |
2 E |
| N73 |
EIS [EZS] control unit |
11 B |
| N80 |
Steering column module |
6 B |
| N93 |
Central gateway control module |
7 E |
| S4 |
Combination switch |
6 B |
