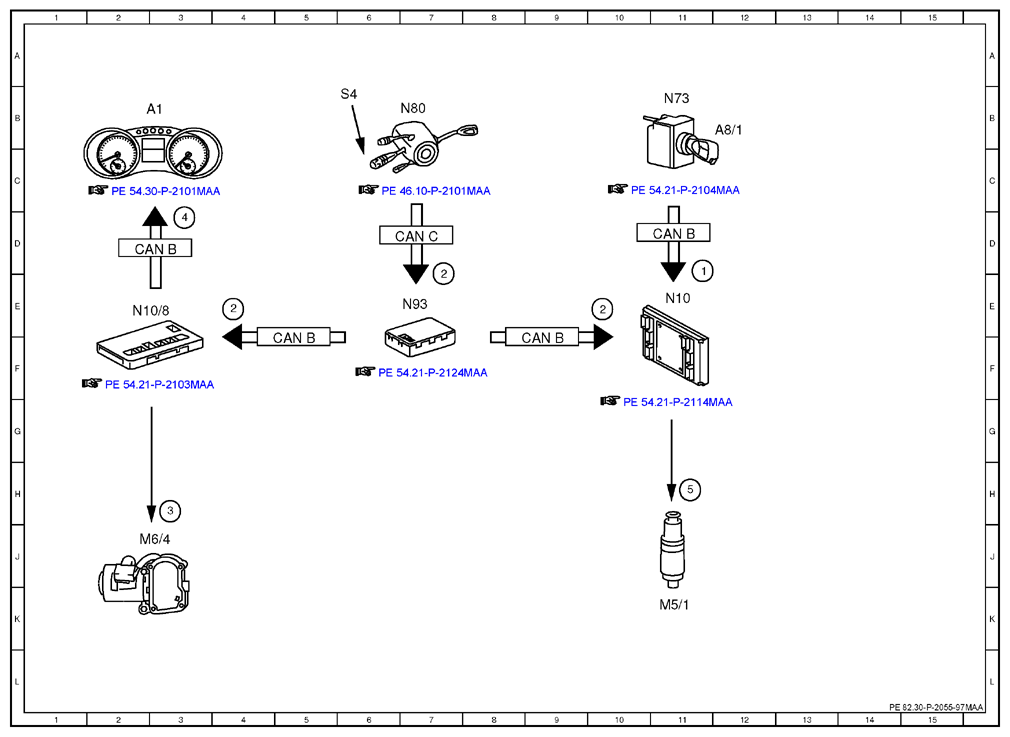

| 1 |
Circuit 15, status |
11E |
| 2 |
Combination switch, status |
7E |
| 2 |
Combination switch, status |
10E |
| 2 |
Combination switch, status |
4E |
| 3 |
Rear-end door wiper motor, actuation |
3H |
| 4 |
Instrument cluster, message |
3C |
| 5 |
Windshield washer system pump, actuation |
11H |
| A1 |
Instrument cluster |
3B |
| A8/1 |
Transmitter key |
12B |
| CAN B |
Interior CAN |
9D |
| CAN B |
Interior CAN |
5E |
| CAN B |
Interior CAN |
9E |
| CAN B |
Interior CAN |
11C |
| CAN C |
Engine compartment CAN |
7C |
| M5/1 |
Windshield washer fluid pump |
11K |
| M6/4 |
Tailgate wiper motor |
2J |
| N10 |
Front SAM control unit |
11E |
| N10/8 |
Rear SAM control unit |
2E |
| N73 |
EIS [EZS] control unit |
11B |
| N80 |
Steering column module |
7B |
| N93 |
Central gateway control unit |
7E |
| S4 |
Combination switch |
6B |
