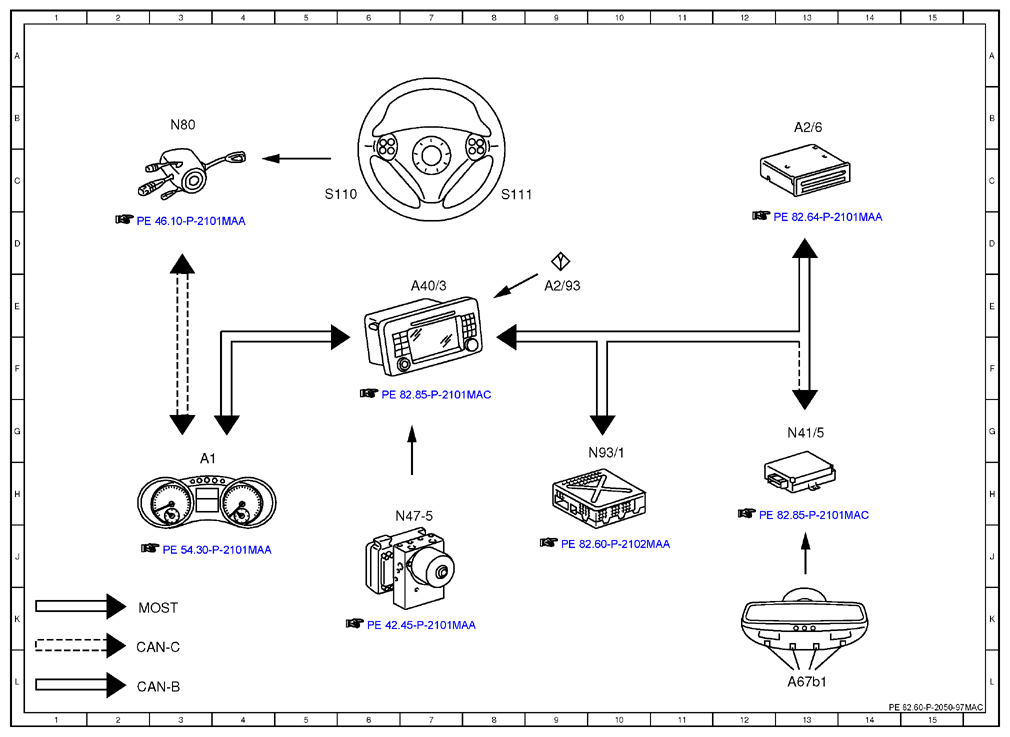

Electrical function schematic for radio - PE82.60-P-2050-97MAC
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 3H |
| A2/6 | CD changer | 13B |
| A2/93 | Roof antenna module | 9E |
| A40/3 | COMAND operating, display and control unit | 7E |
| A67b1 | Hands-free system microphone group | 13L |
| MOST | Media Oriented System Transport | 2K |
| N41/5 | Microphone array control unit | 13G |
| N47-5 | ESP control unit | 7H |
| N80 | Steering column module | 3B |
| N93/1 | Audio gateway control unit | 10G |
| S110 | Left multifunction steering wheel button group | 5C |
| S111 | Right multifunction steering wheel button group | 8C |
