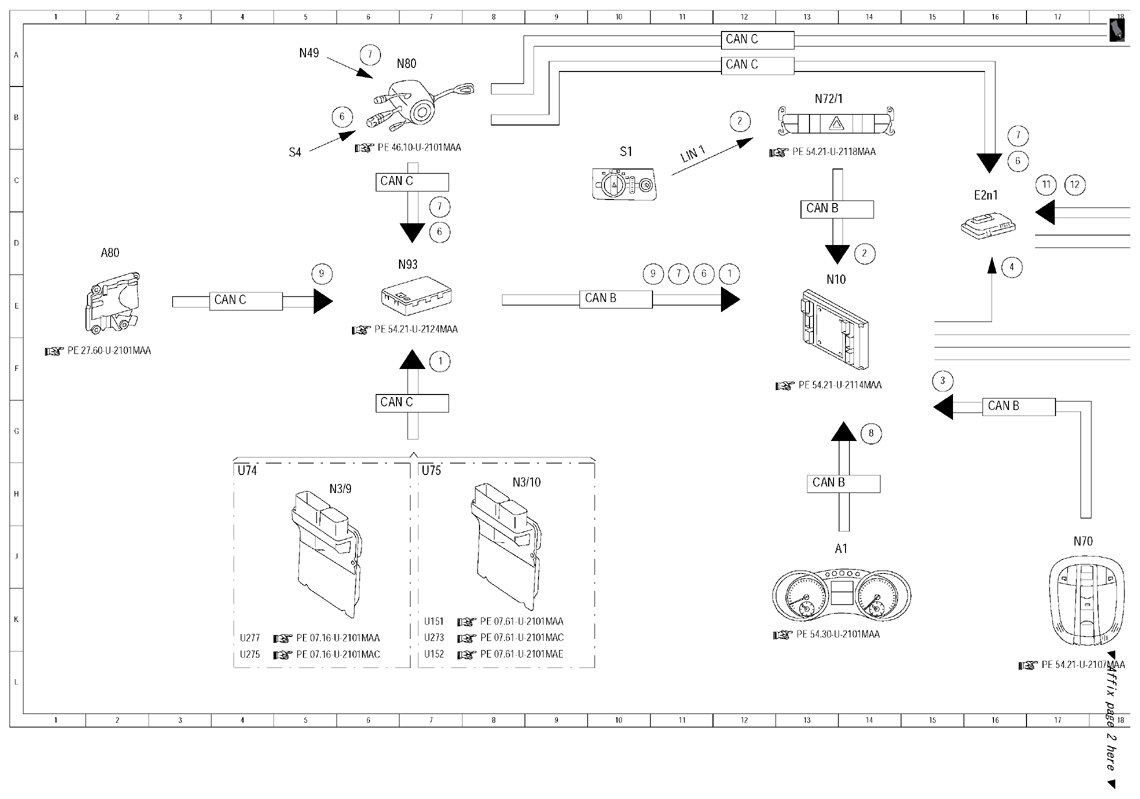

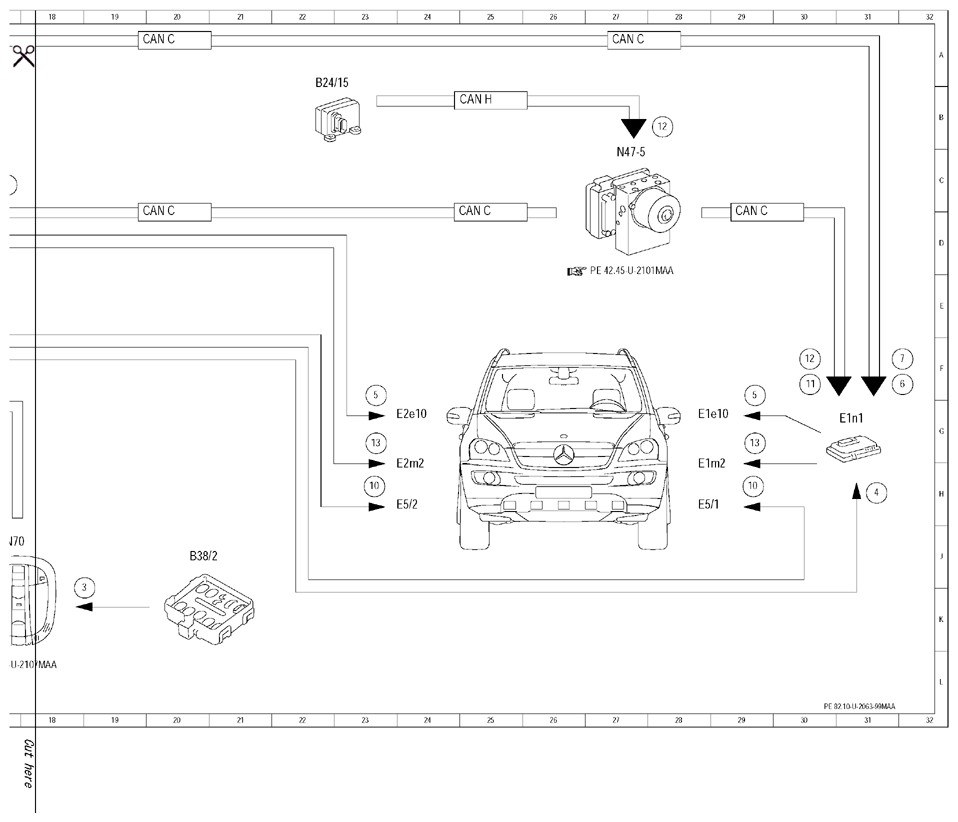

| 1 |
Circuit 61, status |
7 F |
| 1 |
Circuit 61, status |
12 E |
| 10 |
Cornering illumination, actuation |
23 H |
| 10 |
Cornering illumination, actuation |
29 H |
| 11 |
Wheel speed, signal |
17 C |
| 11 |
Wheel speed, signal |
30 F |
| 12 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
17 C |
| 12 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
28 B |
| 12 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
30 F |
| 13 |
Dynamic curve illumination motor, actuation |
23 G |
| 13 |
Dynamic curve illumination motor, actuation |
29 G |
| 2 |
Rotary light switch, status |
12 B |
| 2 |
Rotary light switch, status |
14 D |
| 3 |
Rain/light sensor, status |
15 F |
| 3 |
Rain/light sensor, status |
18 K |
| 4 |
Low beams, actuation |
16 E |
| 4 |
Low beams, actuation |
31 H |
| 5 |
Bi-xenon lamp with integrated ignition module, actuation |
23 G |
| 5 |
Bi-xenon lamp with integrated ignition module, actuation |
29 G |
| 6 |
Combination switch, switch position |
6 B |
| 6 |
Combination switch, switch position |
7 D |
| 6 |
Combination switch, switch position |
11 E |
| 6 |
Combination switch, switch position |
16 C |
| 6 |
Combination switch, switch position |
31 F |
| 7 |
Steering angle sensor, signal |
6 A |
| 7 |
Steering angle sensor, signal |
7 D |
| 7 |
Steering angle sensor, signal |
11 E |
| 7 |
Steering angle sensor, signal |
16 B |
| 7 |
Steering angle sensor, signal |
31 F |
| 8 |
Vehicle speed, signal |
14 G |
| 9 |
Selector lever position, status |
5 E |
| 9 |
Selector lever position, status |
10 E |
| A1 |
Instrument cluster |
13 J |
| A80 |
Intelligent servo module for DIRECT SELECT |
2 D |
| B24/15 |
Micromechanical turn rate sensor AY pickup |
22 B |
| B38/2 |
Rain/light sensor |
20 J |
| CAN B |
Interior CAN |
9 E |
| CAN B |
Interior CAN |
13 D |
| CAN B |
Interior CAN |
13 H |
| CAN B |
Interior CAN |
16 G |
| CAN C |
Engine compartment CAN |
4 E |
| CAN C |
Engine compartment CAN |
6 G |
| CAN C |
Engine compartment CAN |
6 C |
| CAN C |
Engine compartment CAN |
12 A |
| CAN C |
Engine compartment CAN |
19 D |
| CAN C |
Engine compartment CAN |
19 A |
| CAN C |
Engine compartment CAN |
24 D |
| CAN C |
Engine compartment CAN |
27 A |
| CAN C |
Engine compartment CAN |
29 D |
| CAN H |
Vehicle dynamics CAN |
24 B |
| E1e10 |
Left bi-xenon lamp with integral ignition module |
28 G |
| E1m2 |
Left dynamic cornering lamp motor |
28 H |
| E1n1 |
Xenon headlamp control module |
31 G |
| E2e10 |
Right bi-xenon lamp with integral ignition module |
23 G |
| E2m2 |
Right dynamic cornering lamp motor |
23 H |
| E2n1 |
Xenon headlamp control module |
16 C |
| E5/1 |
Left fog lamp |
28 H |
| E5/2 |
Right fog lamp |
23 H |
| LIN 1 |
Instrument panel LIN |
11 C |
| N10 |
Front SAM control unit |
13 E |
| N3/10 |
ME-SFI [ME] control module |
8 H |
| N3/9 |
CDI control module |
5 H |
| N47-5 |
ESP control module |
27 C |
| N49 |
Steering angle sensor |
5 A |
| N70 |
Overhead control panel control module |
17 J |
| N72/1 |
Upper control panel control module |
13 B |
| N80 |
Steering column module |
6 A |
| N93 |
Central gateway control module |
6 E |
| S1 |
Exterior lamp switch |
10 C |
| S4 |
Combination switch |
5 C |
| U151 |
Valid for engine 113 |
7 K |
| U152 |
Valid for engine 156 |
7 L |
| U273 |
Valid for engine 272 except 272.973, 273 |
7 K |
| U275 |
Valid for engine 642.8 |
4 L |
| U277 |
Valid for engine 642.9 |
4 K |
| U74 |
Valid for diesel vehicles |
4 H |
| U75 |
Valid for gasoline engines |
7 H |
