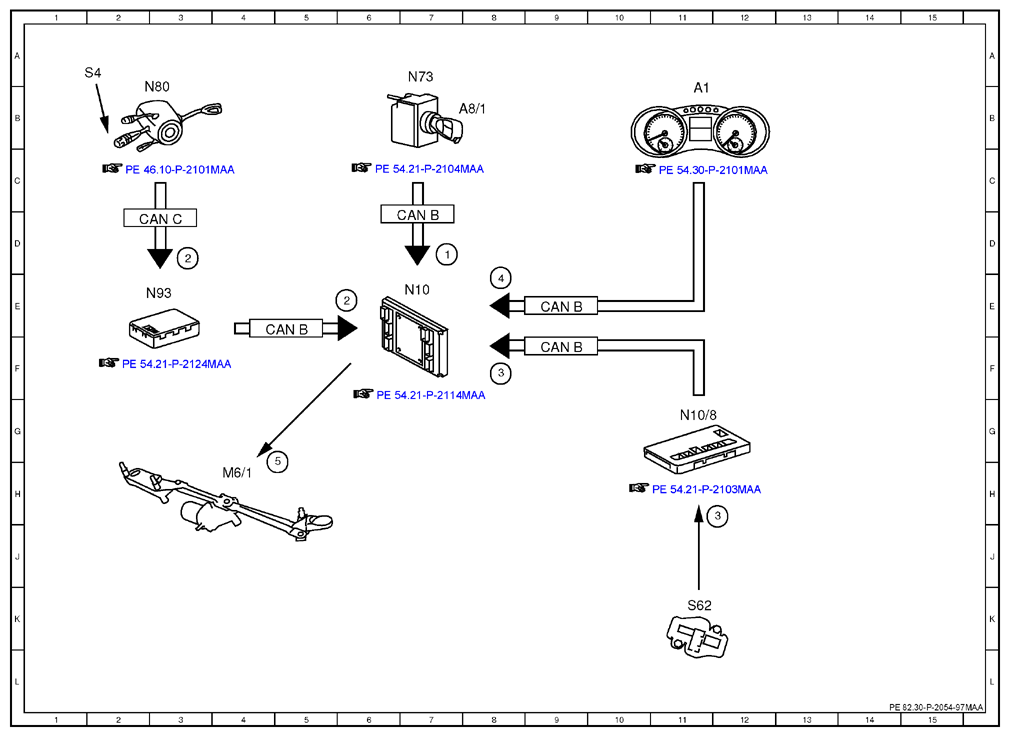

| 1 |
Circuit 15, status |
7D |
| 2 |
Combination switch, status |
3D |
| 2 |
Combination switch, status |
6E |
| 3 |
ATA [EDW] engine hood switch, status |
8F |
| 3 |
ATA [EDW] engine hood switch, status |
11H |
| 4 |
Vehicle speed, signal |
8E |
| 5 |
Wiper motor, actuation |
4G |
| A1 |
Instrument cluster |
11B |
| A8/1 |
Transmitter key |
8B |
| CAN B |
Interior CAN |
7C |
| CAN B |
Interior CAN |
5E |
| CAN B |
Interior CAN |
9E |
| CAN B |
Interior CAN |
9F |
| CAN C |
Engine compartment CAN |
3C |
| M6/1 |
Wiper motor |
4H |
| N10 |
Front SAM control unit |
7E |
| N10/8 |
Rear SAM control unit |
11G |
| N73 |
EIS [EZS] control unit |
7A |
| N80 |
Steering column module |
3B |
| N93 |
Central gateway control unit |
3E |
| S4 |
Combination switch |
2A |
| S62 |
ATA [EDW] hood switch |
11K |
