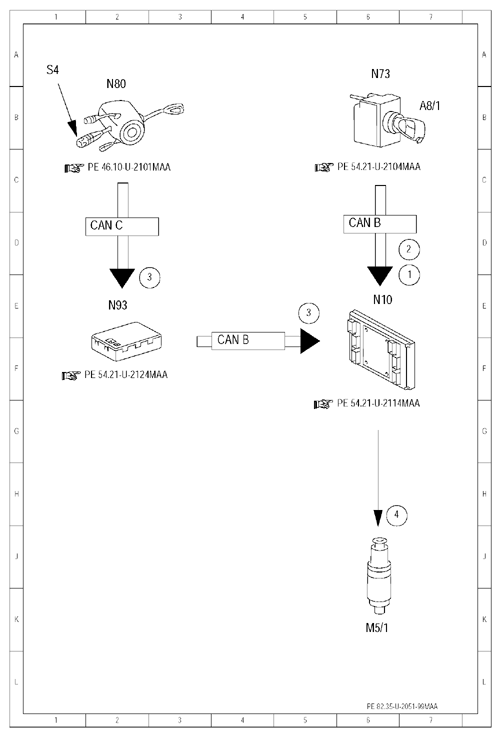

Electrical function diagram for windshield wash - PE82.35-U-2051-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7 E |
| 2 | Circuit 50, status | 7 D |
| 3 | Combination switch, switch position | 2 E |
| 3 | Combination switch, switch position | 5 E |
| 4 | Window washer fluid pump, actuation | 6 H |
| A8/1 | Transmitter key | 7 B |
| CAN B | Interior CAN | 4 F |
| CAN B | Interior CAN | 6 D |
| CAN C | Engine compartment CAN | 2 D |
| M5/1 | Windshield washer fluid pump | 6 K |
| N10 | Front SAM control unit | 6 E |
| N73 | EIS [EZS] control unit | 6 A |
| N80 | Steering column module | 2 B |
| N93 | Central gateway control module | 2 E |
| S4 | Combination switch | 1 A |
