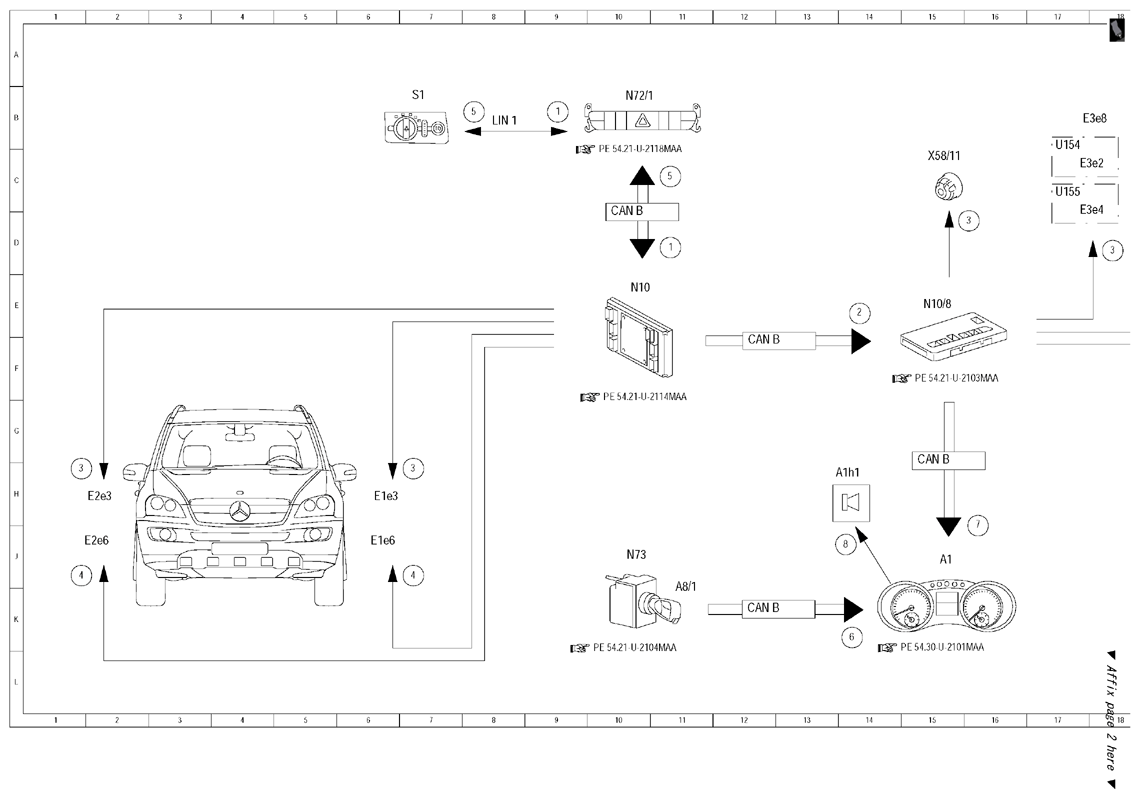

| 1 |
Rotary light switch, status |
9 B |
| 1 |
Rotary light switch, status |
11 D |
| 2 |
Standing and parking lights, request |
14 E |
| 3 |
Standing and parking lights, actuation |
1 H |
| 3 |
Standing and parking lights, actuation |
7 H |
| 3 |
Standing and parking lights, actuation |
15 D |
| 3 |
Standing and parking lights, actuation |
18 D |
| 3 |
Standing and parking lights, actuation |
20 D |
| 3 |
Standing and parking lights, actuation |
23 D |
| 4 |
Side-marker lamp, actuation |
1 J |
| 4 |
Side-marker lamp, actuation |
7 J |
| 5 |
Standing lights actuation, status |
8 B |
| 5 |
Standing lights actuation, status |
11 C |
| 6 |
Circuit 15, status |
14 K |
| 7 |
Door rotary tumbler switch, status |
16 J |
| 8 |
Warning buzzer, actuation |
14 J |
| A1 |
Instrument cluster |
15 J |
| A1h1 |
Warning buzzer |
13 H |
| A8/1 |
Transmitter key |
11 K |
| CAN B |
Interior CAN |
10 D |
| CAN B |
Interior CAN |
12 K |
| CAN B |
Interior CAN |
12 F |
| CAN B |
Interior CAN |
15 H |

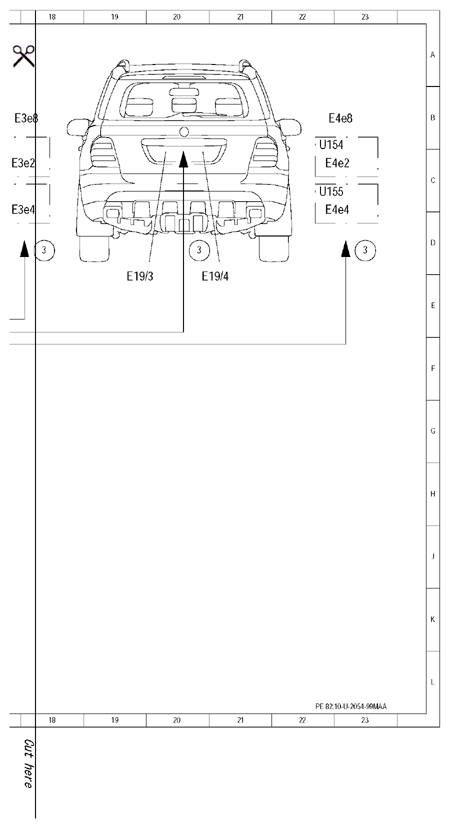

| E19/3 |
Left rear-end door license plate lamp |
19 E |
| E19/4 |
Right rear-end door license plate lamp |
20 E |
| E1e3 |
Left standing and parking lamp |
6 H |
| E1e6 |
Left side marker lamp |
6 J |
| E2e3 |
Right standing and parking lamp |
2 H |
| E2e6 |
Right side marker lamp |
1 J |
| E3e2 |
Left tail lamp and rear fog lamp |
17 C |
| E3e4 |
Left stop lamp |
17 D |
| E3e8 |
Left tail lamp, side-marker lamp, parking lamp |
17 B |
| E4e2 |
Right tail lamp and rear fog lamp |
22 C |
| E4e4 |
Right stop lamp |
22 D |
| E4e8 |
Right tail lamp, side-marker lamp, parking lamp |
22 B |
| LIN 1 |
Instrument panel LIN |
8 B |
| N10 |
Front SAM control unit |
10 E |
| N10/8 |
Rear SAM control module |
15 E |
| N72/1 |
Upper control panel control module |
10 B |
| N73 |
EIS [EZS] control unit |
10 J |
| S1 |
Exterior lamp switch |
7 B |
| U154 |
Valid for 164.1 |
17 C |
| U154 |
Valid for 164.1 |
22 C |
| U155 |
Valid for 164.8 |
17 C |
| U155 |
Valid for 164.8 |
22 C |
| X58/11 |
Trailer hitch socket (7-pin) |
15 C |
