| 1 |
Rotary light switch, status |
7 J |
| 1 |
Rotary light switch, status |
9 G |
| 2 |
Circuit 15, status |
10 G |
| 3 |
Front fog lamp, actuation |
2 D |
| 3 |
Front fog lamp, actuation |
7 D |
| 4 |
Front fog lamps indicator lamp, actuation |
5 J |
| 4 |
Front fog lamps indicator lamp, actuation |
9 J |
| 5 |
Rear fog light, request |
12 E |
| 6 |
Rear fog light, actuation |
16 F |
| 6 |
Rear fog light, actuation |
23 F |
| 7 |
Rear fog light indicator light, actuation |
5 J |
| 7 |
Rear fog light indicator light, actuation |
9 H |
| A8/1 |
Transmitter key |
13 J |
| CAN B |
Interior CAN |
8 H |
| CAN B |
Interior CAN |
10 F |
| CAN B |
Interior CAN |
11 G |

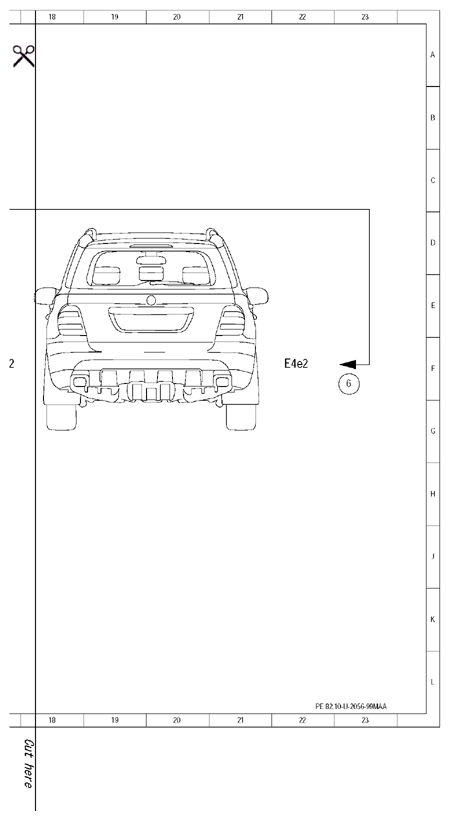

| E3e2 |
Left tail lamp and rear fog lamp |
17 F |
| E4e2 |
Right tail lamp and rear fog lamp |
22 F |
| E5/1 |
Left fog lamp |
6 C |
| E5/2 |
Right fog lamp |
2 C |
| LIN 1 |
Instrument panel LIN |
6 K |

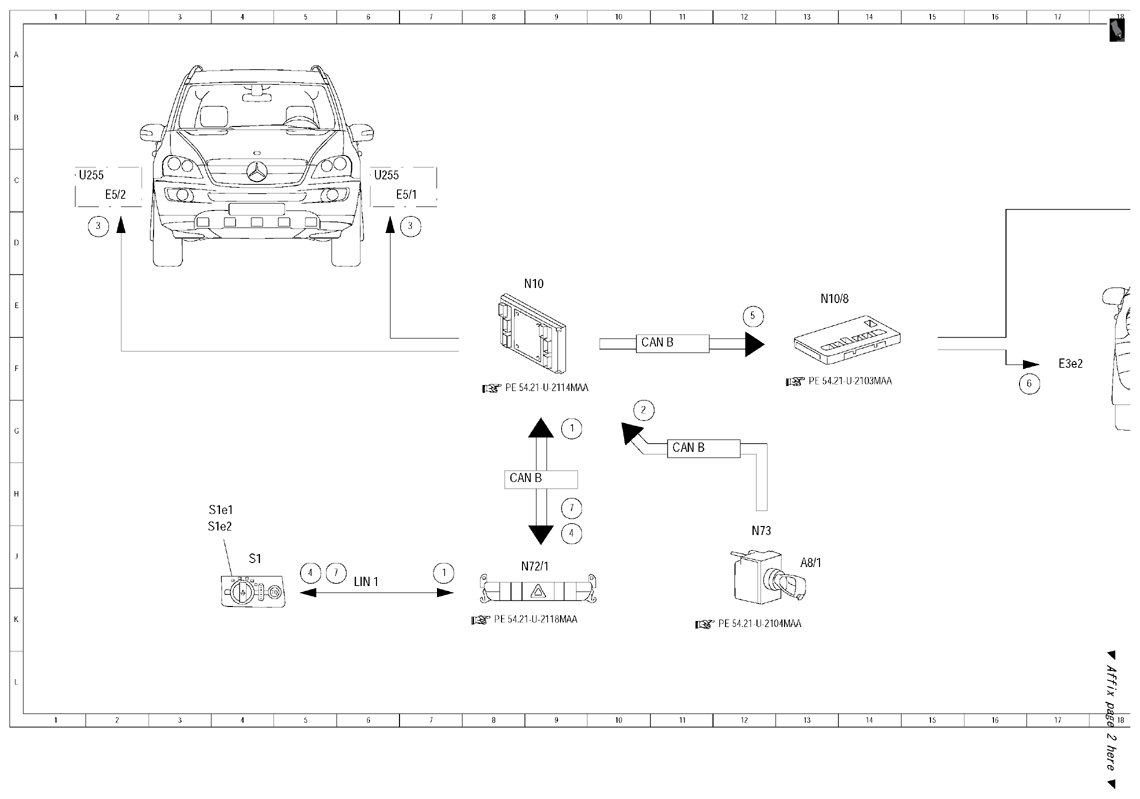

| N10 |
Front SAM control unit |
8 E |
| N10/8 |
Rear SAM control module |
13 E |
| N72/1 |
Upper control panel control module |
8 J |
| N73 |
EIS [EZS] control unit |
12 J |
| S1 |
Exterior lamp switch |
4 J |
| S1e1 |
Fog lamp indicator lamp |
3 H |
| S1e2 |
Rear fog lamp indicator lamp |
3 J |
| U255 |
Valid for fog lights |
1 C |
| U255 |
Valid for fog lights |
6 C |
