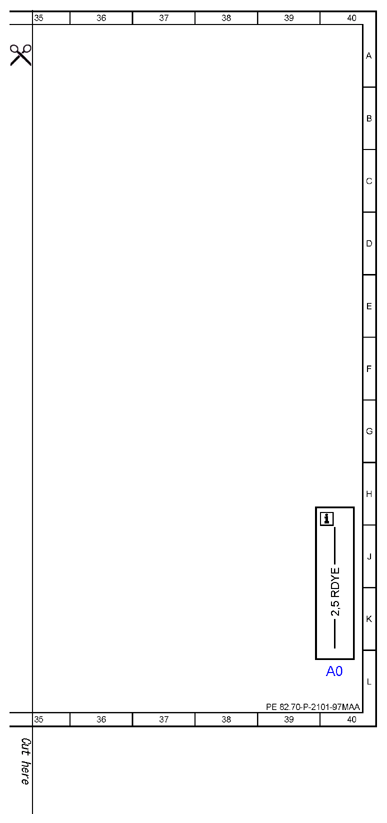

| A0 |
Color code key |
40L |
| A28/3 |
E-net compensator |
9L |
| A28/3x1 |
E-net compensator connector |
9H |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
14L |
| A34/15x1 |
Connector 1, UPCI [UHI] portable CTEL holder (Universal Handy Interface) |
13K |
| A34/15x2 |
Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) |
11K |
| A67b1 |
Hands-free system microphone group |
20L |
| A67b1x1 |
Hands-free system microphone group connector |
19J |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f23 |
Fuse 23 |
2L |
| MOST |
Media Oriented System Transport |
32A |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
4A |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
12A |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
20A |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
28A |
| N123/4 |
Emergency call system control unit |
28L |
| U904 |
Wiring harness installed but nonfunctional |
7F |
| W17/1 |
Ground (left rear seat) |
6H |
| X18/2 |
Interior/roof connector |
19E |
| X29/6 |
Center console intermediate connector |
14F |
| X29/6 |
Center console intermediate connector |
11H |
| X29/6 |
Center console intermediate connector |
13H |
| X39/70 |
FFS [RBA microphone array connector |
23E |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
6L |
| Z53/25 |
UPCI [UHI] circuit 30 interior compartment solder point |
2E |
| Z53/26 |
Telematics circuit 31 interior solder point 1 |
8E |
