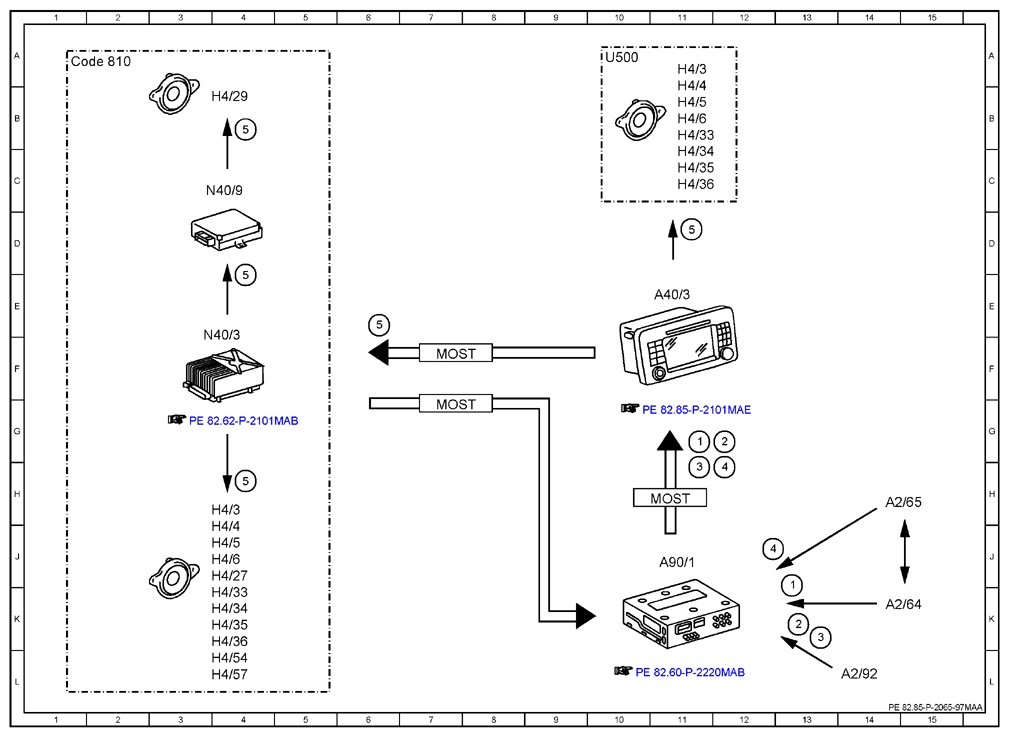

| 1 |
TV1 antenna, signal |
11G |
| 1 |
TV1 antenna, signal |
13J |
| 2 |
TV2 antenna, signal |
12F |
| 2 |
TV2 antenna, signal |
13K |
| 3 |
TV3 antenna, signal |
11G |
| 3 |
TV3 antenna, signal |
13K |
| 4 |
TV4 antenna, signal |
12G |
| 4 |
TV4 antenna, signal |
13H |
| 5 |
Audio, signal |
4H |
| 5 |
Audio, signal |
4E |
| 5 |
Audio, signal |
4B |
| 5 |
Audio, signal |
11D |
| 5 |
Audio, signal |
6E |
| A2/64 |
Left antenna amplifier module |
14K |
| A2/65 |
Right antenna amplifier module |
14H |
| A2/92 |
TV rear window antenna amplifier |
14L |
| A40/3 |
COMAND operating, display and control unit |
11E |
| A90/1 |
TV combination tuner (analog/digital) |
11J |
| Code 810 |
Sound system |
2A |
| H4/27 |
Center cockpit speaker (centerfill) |
3J |
| H4/29 |
Subwoofer |
3B |
| H4/3 |
Left rear door speaker |
3H |
| H4/3 |
Left rear door speaker |
11A |
| H4/33 |
Left front door tweeter |
3K |
| H4/33 |
Left front door tweeter |
11B |
| H4/34 |
Right front door tweeter |
3K |
| H4/34 |
Right front door tweeter |
11C |
| H4/35 |
Left rear door tweeter |
3K |
| H4/35 |
Left rear door tweeter |
11C |
| H4/36 |
Right rear door tweeter |
3K |
| H4/36 |
Right rear door tweeter |
11C |
| H4/4 |
Right rear door speaker |
3J |
| H4/4 |
Right rear door speaker |
11B |
| H4/5 |
Left front door speaker |
3J |
| H4/5 |
Left front door speaker |
11B |
| H4/54 |
Left rear surround speaker |
3L |
| H4/57 |
Right rear surround speaker |
3L |
| H4/6 |
Right front door speaker |
3J |
| H4/6 |
Right front door speaker |
11B |
| MOST |
Media Oriented System Transport |
11H |
| MOST |
Media Oriented System Transport |
7E |
| MOST |
Media Oriented System Transport |
7F |
| N40/3 |
Amplifier for sound system |
4F |
| N40/9 |
Subwoofer amplifier |
4C |
| U500 |
Not valid for Sound System |
10A |
