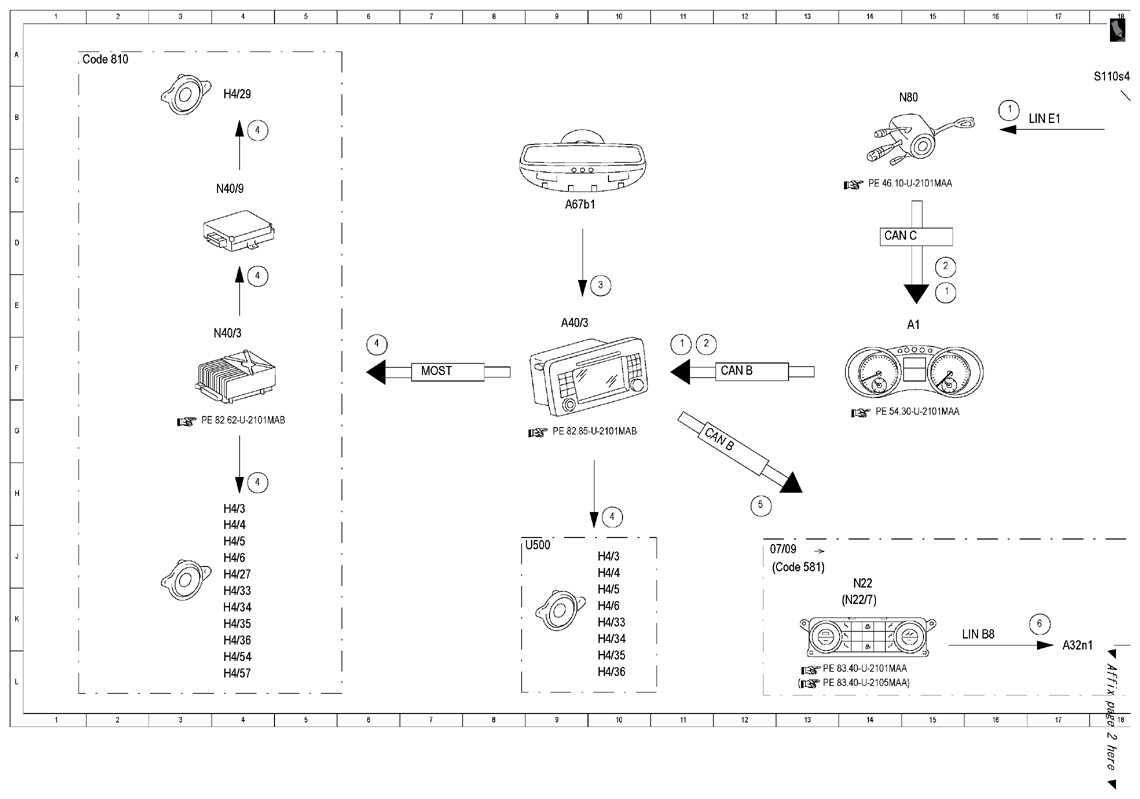

| 1 |
VCS ON button, signal |
11 F |
| 1 |
VCS ON button, signal |
15 E |
| 1 |
VCS ON button, signal |
16 B |
| 2 |
VCS OFF button, signal |
11 F |
| 2 |
VCS OFF button, signal |
15 E |
| 3 |
Hands-free system microphone group, signal |
10 E |
| 4 |
Audio, signal |
4 H |
| 4 |
Audio, signal |
4 E |
| 4 |
Audio, signal |
4 B |
| 4 |
Audio, signal |
6 F |
| 4 |
Audio, signal |
10 J |
| 5 |
Voice input, status |
12 H |
| 6 |
Blower motor, request |
17 K |
| 7 |
Blower motor, actuation |
19 K |
| A1 |
Instrument cluster |
15 E |
| A32m1 |
Blower motor |
20 L |
| A32n1 |
Blower regulator |
17 L |
| A40/3 |
COMAND operating, display and control module |
9 E |
| A67b1 |
Hands-free system microphone group |
9 D |
| CAN B |
Interior CAN |
11 G |
| CAN B |
Interior CAN |
12 F |
| CAN C |
Engine compartment CAN |
14 D |
| Code 581 |
Comfort automatic air conditioning |
12 J |
| Code 810 |
Sound system |
1 A |
| H4/27 |
Center cockpit speaker (Centerfill) |
4 J |
| H4/29 |
Subwoofer loudspeaker |
4 B |
| H4/3 |
Left rear door speaker |
4 H |
| H4/3 |
Left rear door speaker |
10 J |
| H4/33 |
Left front door tweeter |
4 K |
| H4/33 |
Left front door tweeter |
10 K |
| H4/34 |
Right front door tweeter |
4 K |
| H4/34 |
Right front door tweeter |
10 K |
| H4/35 |
Left rear door tweeter |
4 K |
| H4/35 |
Left rear door tweeter |
10 L |
| H4/36 |
Right rear door tweeter |
4 L |
| H4/36 |
Right rear door tweeter |
10 L |
| H4/4 |
Right rear door speaker |
4 J |
| H4/4 |
Right rear door speaker |
10 J |
| H4/5 |
Left front door speaker |
4 J |
| H4/5 |
Left front door speaker |
10 K |
| H4/54 |
Left rear surround loudspeaker |
4 L |
| H4/57 |
Right rear surround loudspeaker |
4 L |
| H4/6 |
Right front door speaker |
4 J |
| H4/6 |
Right front door speaker |
10 K |
| LIN B8 |
Climate control LIN |
15 K |
| LIN E1 |
Steering LIN |
17 B |
| MOST |
Media Oriented System Transport |
7 F |
| N22 |
AAC push-button control module |
14 K |
| N22/7 |
Comfort AAC push-button control module |
14 K |
| N40/3 |
Amplifier for Sound System |
3 F |
| N40/9 |
Subwoofer amplifier |
4 C |
| N80 |
Steering column module |
14 B |
| S110s4 |
VCS [SBS] off button |
18 A |
| S111s4 |
VCS [SBS] on button |
19 B |
| U500 |
Not valid for Sound System |
8 J |
