| 1 |
VCS ON button, signal |
11E |
| 1 |
VCS ON button, signal |
15D |
| 1 |
VCS ON button, signal |
16B |
| 2 |
VCS OFF button, signal |
11E |
| 2 |
VCS OFF button, signal |
15D |
| 3 |
Hands-free system microphone group, signal |
10E |
| 4 |
Audio, signal |
4H |
| 4 |
Audio, signal |
10H |
| 4 |
Audio, signal |
4E |
| 4 |
Audio, signal |
4B |
| 4 |
Audio, signal |
6E |
| 5 |
Voice input, status |
12H |
| 6 |
Blower motor, request |
17K |
| 7 |
Blower motor, actuation |
19K |
| A1 |
Instrument cluster |
15E |
| A32m1 |
Blower motor |
20L |
| A32n1 |
Blower regulator |
17L |
| A40/3 |
COMAND operating, display and control unit |
9E |
| A67b1 |
Hands-free system microphone group |
9D |
| CAN B |
Interior CAN |
12F |
| CAN B |
Interior CAN |
12G |
| CAN C |
Engine compartment CAN |
15D |
| Code 581 |
Comfort automatic air conditioning |
13J |
| Code 810 |
Sound system |
2B |
| H4/27 |
Center cockpit speaker (centerfill) |
4J |
| H4/29 |
Subwoofer |
4B |
| H4/3 |
Left rear door speaker |
4H |
| H4/3 |
Left rear door speaker |
10J |
| H4/33 |
Left front door tweeter |
4K |
| H4/33 |
Left front door tweeter |
10K |
| H4/34 |
Right front door tweeter |
4K |
| H4/34 |
Right front door tweeter |
10K |
| H4/35 |
Left rear door tweeter |
4K |
| H4/35 |
Left rear door tweeter |
10L |
| H4/36 |
Right rear door tweeter |
4K |
| H4/36 |
Right rear door tweeter |
10L |
| H4/4 |
Right rear door speaker |
4J |
| H4/4 |
Right rear door speaker |
10J |
| H4/5 |
Left front door speaker |
4J |
| H4/5 |
Left front door speaker |
10K |
| H4/54 |
Left rear surround speaker |
4L |
| H4/57 |
Right rear surround speaker |
4L |
| H4/6 |
Right front door speaker |
4J |
| H4/6 |
Right front door speaker |
10K |
| LIN B8 |
Climate control LIN |
16K |
| LIN E1 |
Steering LIN |
17B |

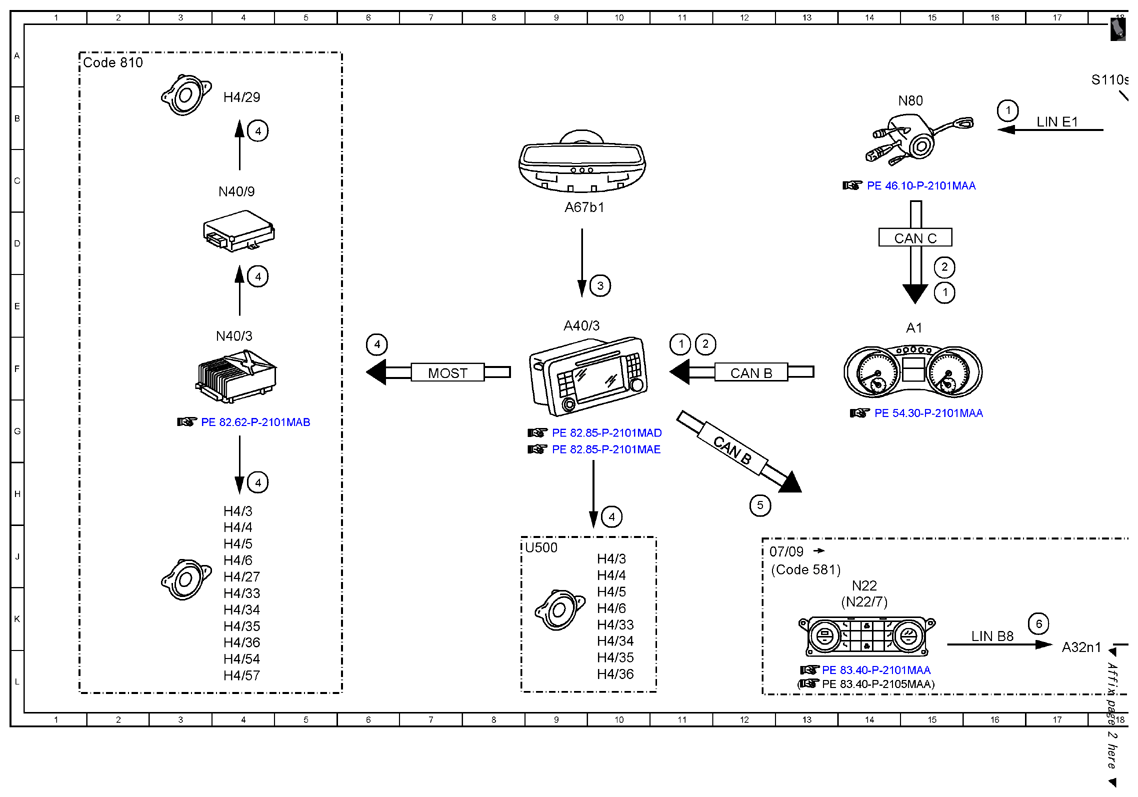

| MOST |
Media Oriented System Transport |
7F |
| N22 |
AAC [KLA] control and operating unit |
14K |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
14K |
| N40/3 |
Amplifier for sound system |
4F |
| N40/9 |
Subwoofer amplifier |
4C |
| N80 |
Steering column module |
15B |

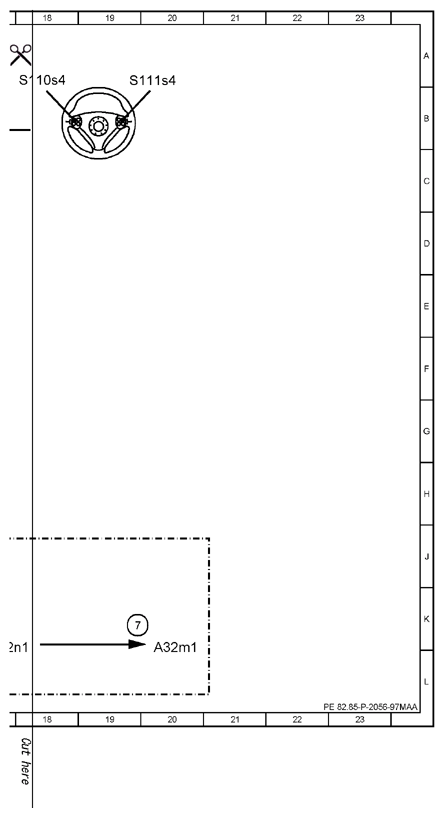

| S110s4 |
VCS [SBS] off button |
18A |
| S111s4 |
VCS [SBS] on button |
20A |
| U500 |
Not valid for Sound System |
9J |
