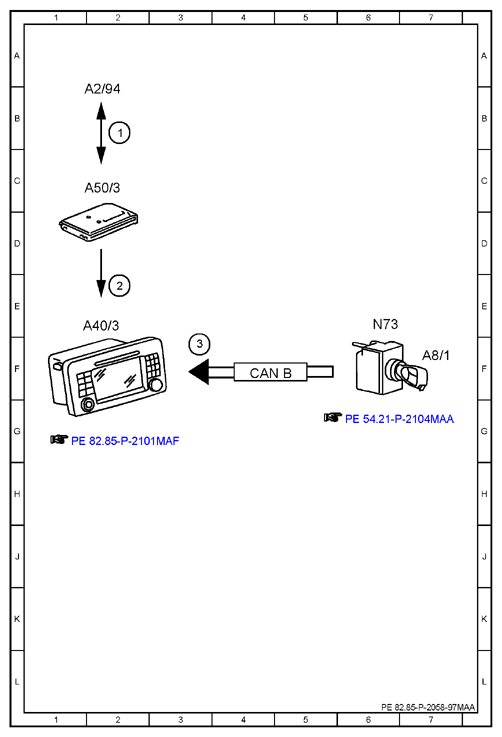

Electrical function diagram for COMAND ETC - PE82.85-P-2058-97MAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Electronic Toll Collection (ETC), signal | 2B |
| 2 | Electronic Toll Collection (ETC), message | 2E |
| 3 | Circuit 15R, status | 3F |
| A2/94 | Electronic toll collection (ETC) antenna | 2B |
| A40/3 | COMAND operating, display and control unit | 2E |
| A50/3 | Electronic toll collection (ETC) control unit | 2C |
| A8/1 | Transmitter key | 7F |
| CAN B | Interior CAN | 4F |
| N73 | EIS [EZS] control unit | 6E |
