Cockpit Management and Data System (COMAND) control unit wiring diagram - PE82.85-P-2101-97MAF

Code: Designation: Position:
A0 Color code key 80L
A2/91 Bluetooth antenna 53L
A2/93 Roof antenna module 67L
A40/3 COMAND operating, display and control unit 4A
A40/3 COMAND operating, display and control unit 13A
A40/3 COMAND operating, display and control unit 29A
A40/3 COMAND operating, display and control unit 20A
A40/3 COMAND operating, display and control unit 37A
A40/3 COMAND operating, display and control unit 45A
A40/3 COMAND operating, display and control unit 53A
A40/3 COMAND operating, display and control unit 61A
A49/6 Radio antenna interference filter 71L
A49/6x1 Radio antenna interference suppression filter electrical connector 71J
A67b1 Hands-free system microphone group 26L
A67b1x1 Hands-free system microphone group connector 25J
A90/3 TV digital tuner 60L
CAN B Interior CAN 7K
F3 Cockpit fuse box 76L
F3f15 Fuse 15 76L
F4 Load compartment fuse and relay box 2L
F4 Load compartment fuse and relay box 50L
F4 Load compartment fuse and relay box 73L
F4f20 Fuse 20 73L
F4f25 Fuse 25 2L
F4f60 Fuse 60 50L
H4/3 Left rear door speaker 18L
H4/33 Left front door tweeter 14L
H4/34 Right front door tweeter 17L
H4/35 Left rear door tweeter 20L
H4/36 Right rear door tweeter 22L
H4/4 Right rear door speaker 21L
H4/5 Left front door speaker 12L
H4/6 Right front door speaker 15L
MOST Media Oriented System Transport 10B
N10/8 Rear SAM control unit 71A
N125/1 Media interface control unit 75A
N66/2 Backup camera control unit 33L
U12 Valid for left-hand drive vehicles 23D
U13 Valid for right-hand drive vehicles 24D
U170 Valid for media interface 62A
U170 Valid for media interface 74A
U500 Not valid for Sound System 11A
U563 Valid for rear entertainment (DVD) 54A
U644 Valid for walkman connection 35A
U661 Valid for TV and video in rear 59A
U895 Valid for rear audio 28E
U899 Valid for backup camera 31A
U933 Not valid for telephone 28G
W17/1 Ground (left rear seat) 4G
W17/1 Ground (left rear seat) 52L
W29/2 Ground (right A-pillar) 76E
W29/8 Ground (left D-pillar) 70G
X137/1 VICS+ETC voltage supply separation point 47L
X137/1 VICS+ETC voltage supply separation point 52L
X137/1 VICS+ETC voltage supply separation point 51G
X18/2 Interior/roof connector 25E
X18/67 Media interface connector 1 63H
X18/69 Media interface connector 2 63L
X30/7 Voltage distributor (CAN) connector 7L
X35/1 Left front door separation point 12E
X35/2 Right front door separation point 15E
X35/3 Left rear door separation point 18E
X35/4 Right rear door separation point 20E
X39/37 CTEL separation point 40L
X39/37 CTEL separation point 43L
X39/37 CTEL separation point 67A
X39/45 Walkman separation point 37L
Z20/1 Cable end insulation not stripped, placed inside insulated tubing 38C
Z20/2 Cable end insulation not stripped, placed inside insulated tubing 35K
Z204/6 Circuit 31 left rear seat voltage distributor connector 4L
Z204/6 Circuit 31 left rear seat voltage distributor connector 52D

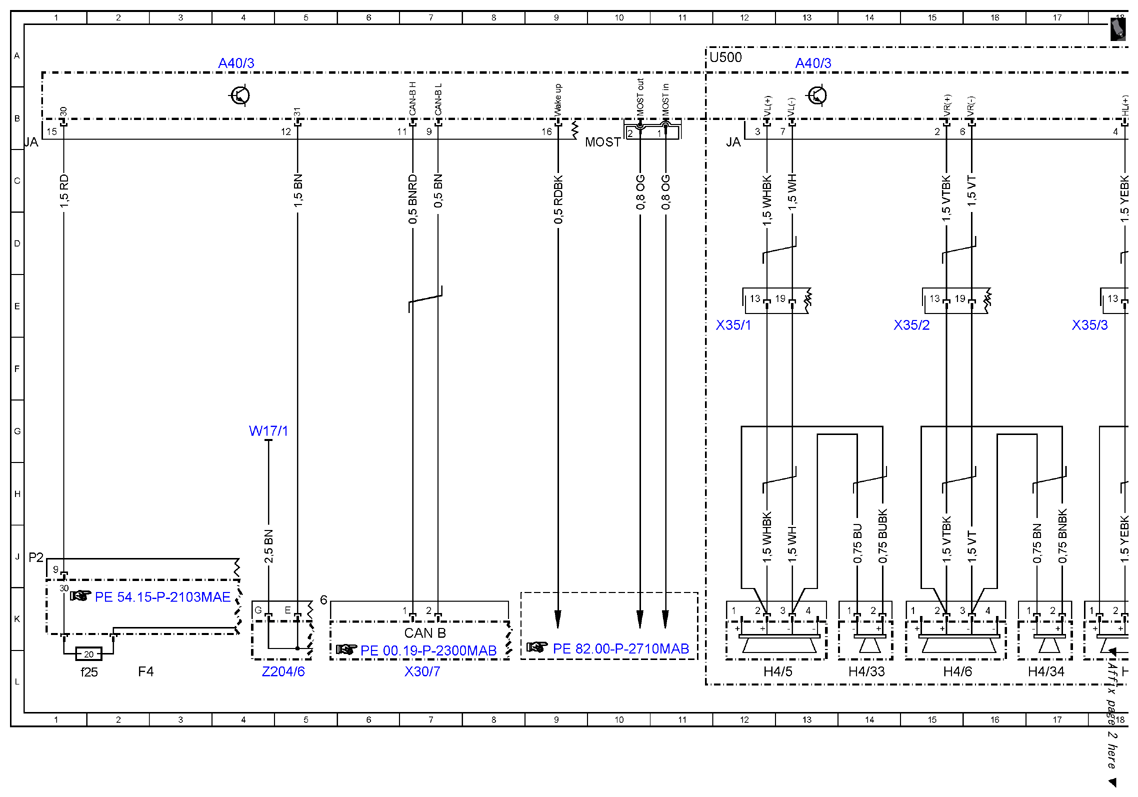

Fig 1: Cockpit Management And Data System Control Unit Wiring Diagram (1 Of 5)
G10118744Courtesy of MERCEDES-BENZ USA

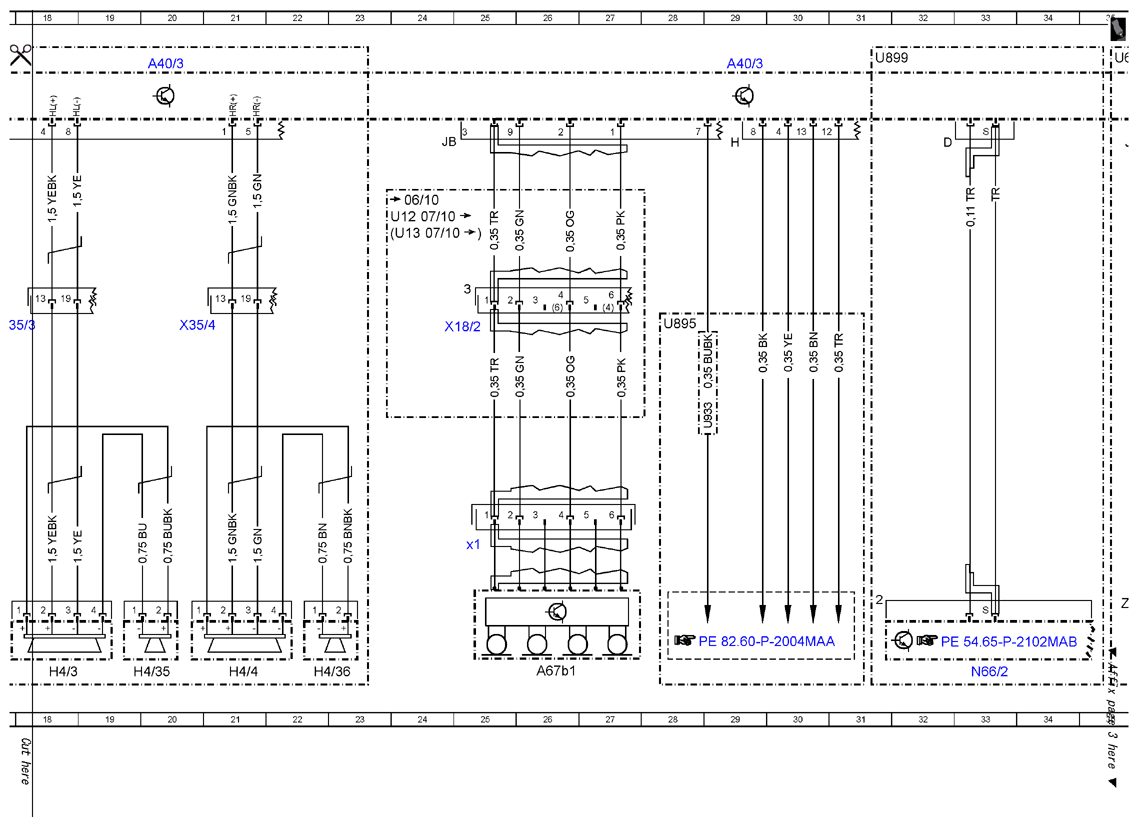

Fig 2: Cockpit Management And Data System Control Unit Wiring Diagram (2 Of 5)
G10118745Courtesy of MERCEDES-BENZ USA

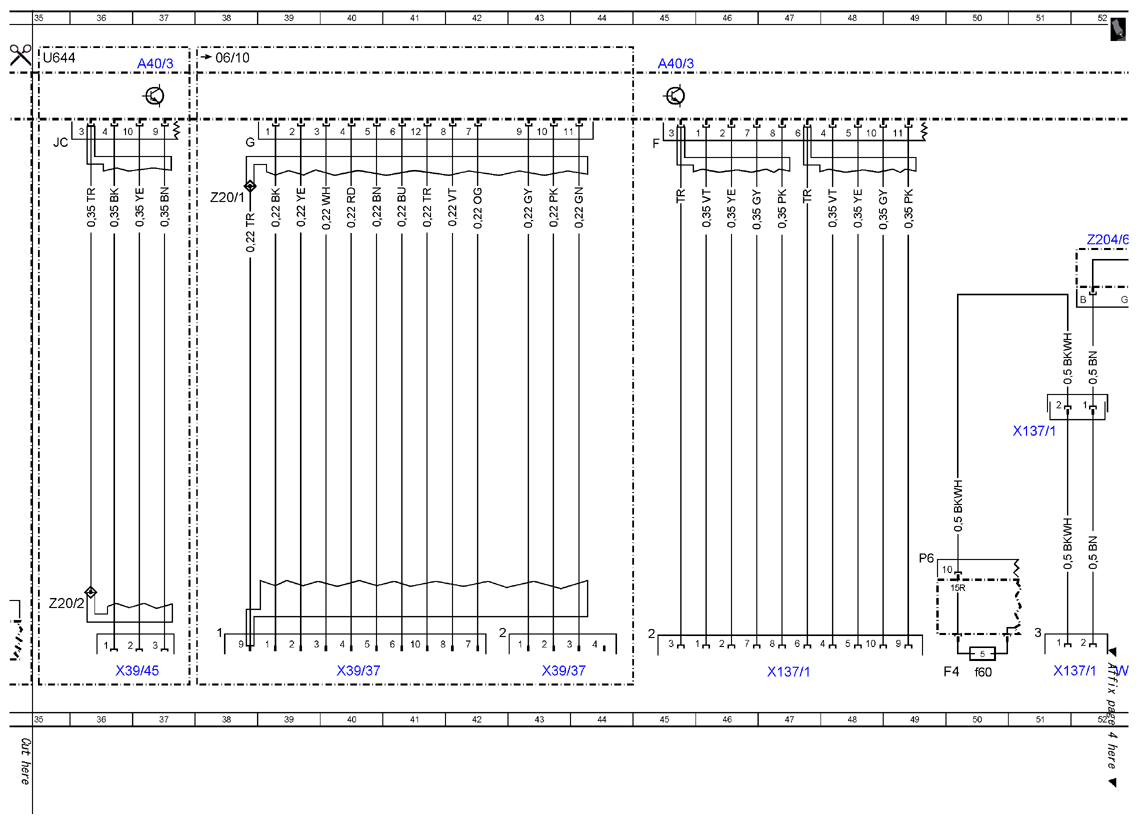

Fig 3: Cockpit Management And Data System Control Unit Wiring Diagram (3 Of 5)
G10118746Courtesy of MERCEDES-BENZ USA

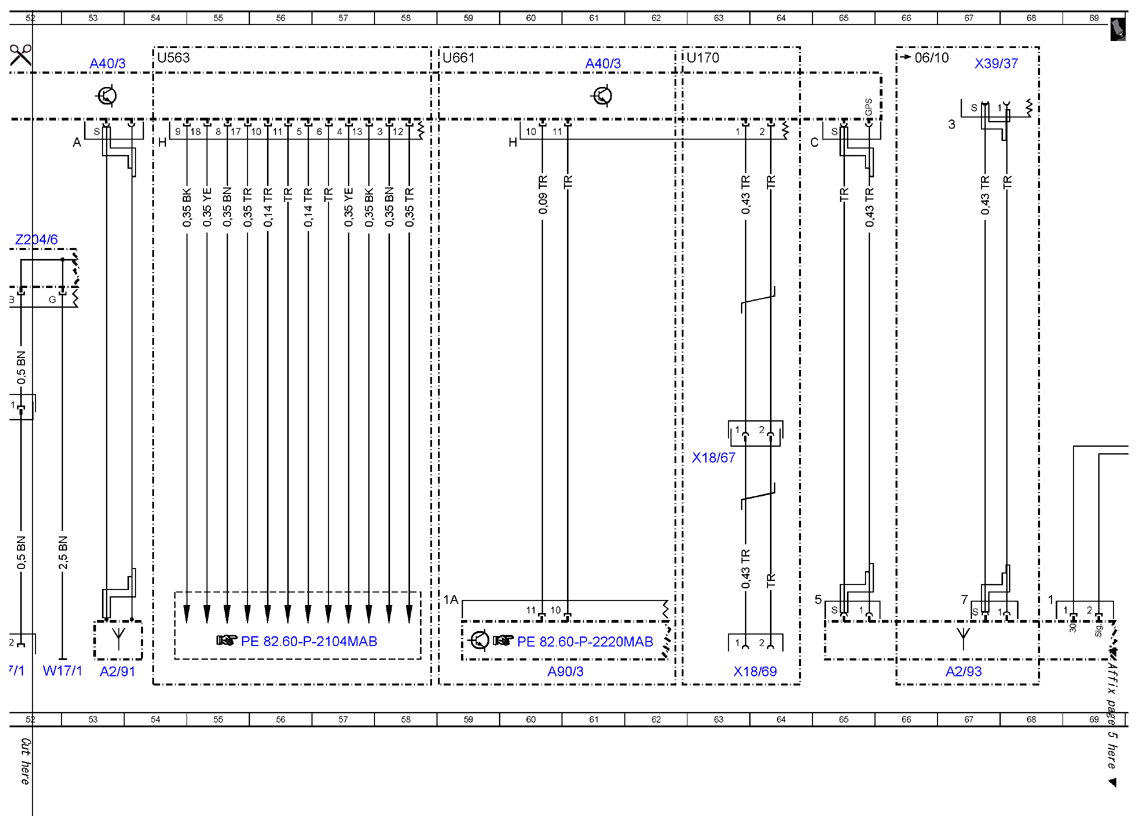

Fig 4: Cockpit Management And Data System Control Unit Wiring Diagram (4 Of 5)
G10118747Courtesy of MERCEDES-BENZ USA

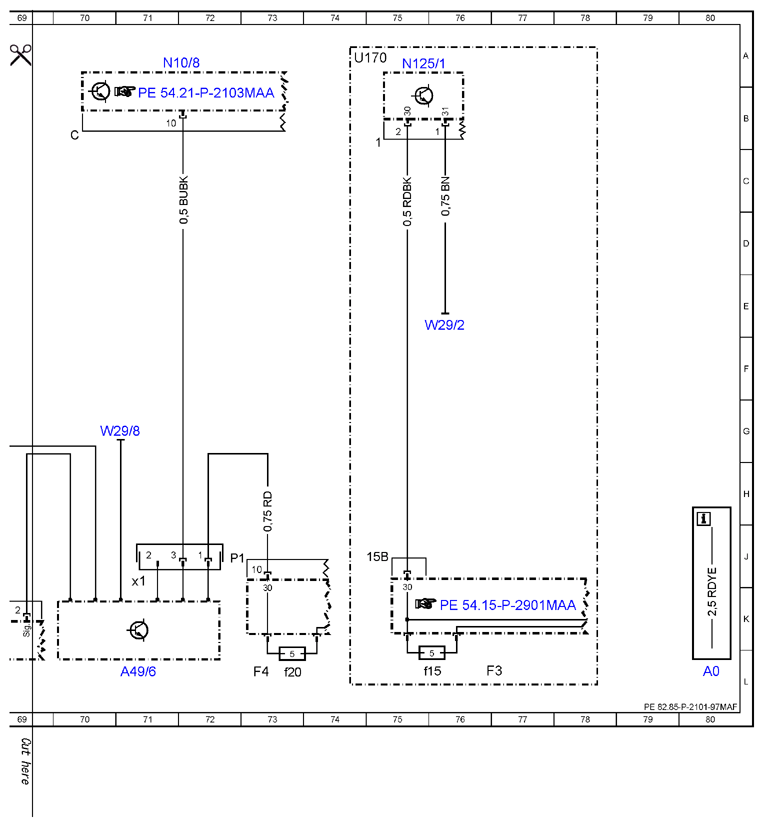

Fig 5: Cockpit Management And Data System Control Unit Wiring Diagram (5 Of 5)
G10118748Courtesy of MERCEDES-BENZ USA
