| A0 |
Color code key |
80L |

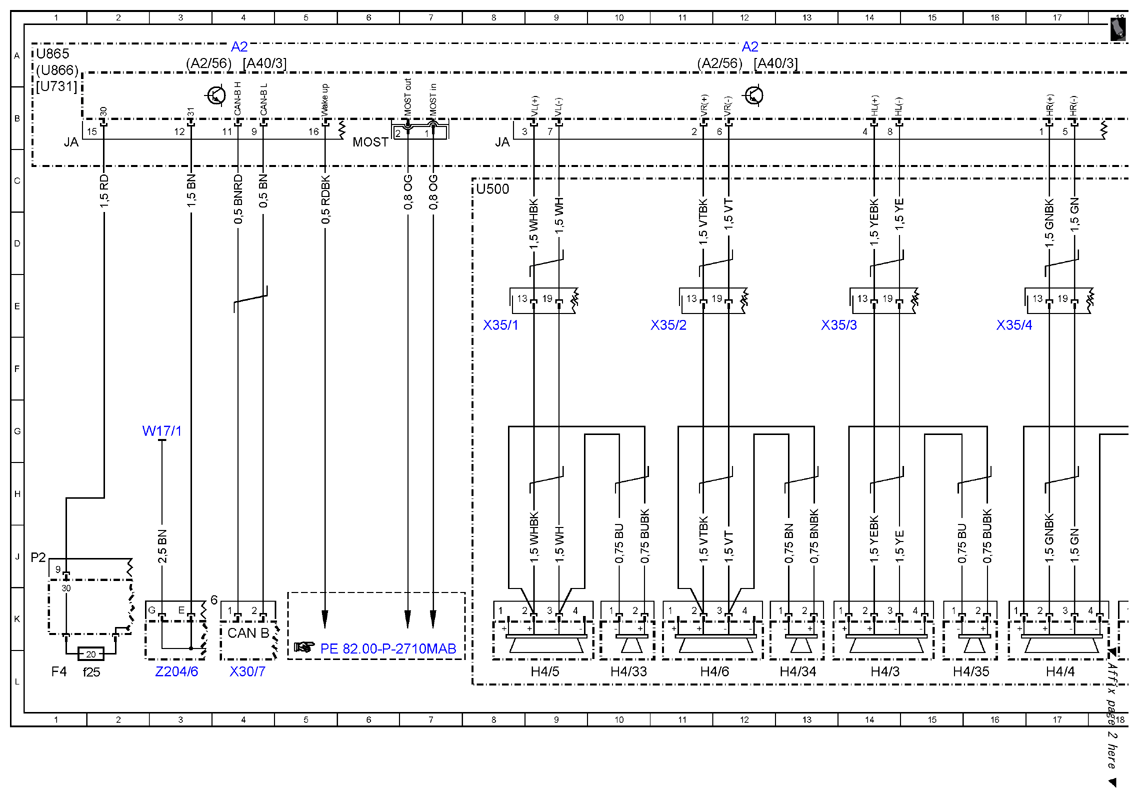

| A2 |
Radio |
4A |
| A2 |
Radio |
12A |
| A2 |
Radio |
28A |
| A2 |
Radio |
19A |
| A2 |
Radio |
36A |
| A2 |
Radio |
44A |
| A2 |
Radio |
52A |
| A2 |
Radio |
60A |
| A2 |
Radio |
69A |

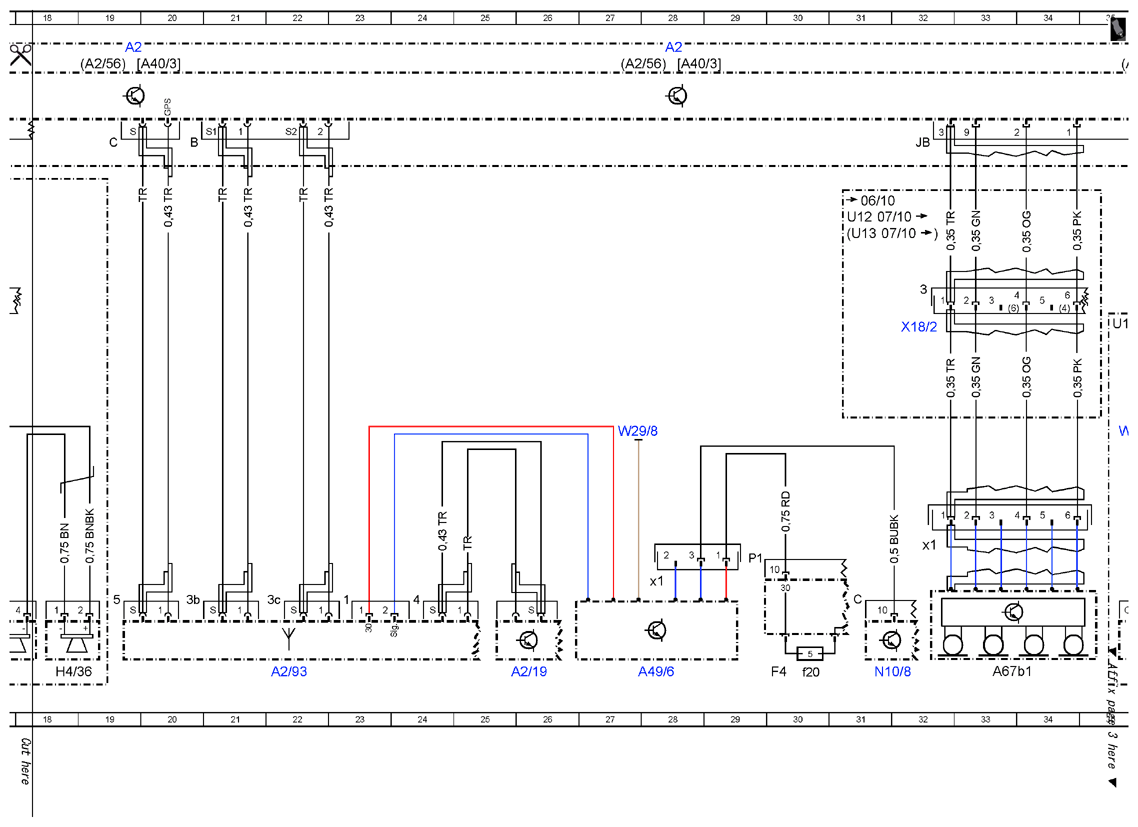

| A2/19 |
FM rear window antenna amplifier |
26L |
| A2/56 |
Radio and navigation unit |
3A |
| A2/56 |
Radio and navigation unit |
12A |
| A2/56 |
Radio and navigation unit |
19A |
| A2/56 |
Radio and navigation unit |
27A |
| A2/56 |
Radio and navigation unit |
36A |
| A2/56 |
Radio and navigation unit |
43A |
| A2/56 |
Radio and navigation unit |
51A |
| A2/56 |
Radio and navigation unit |
59A |
| A2/56 |
Radio and navigation unit |
68A |

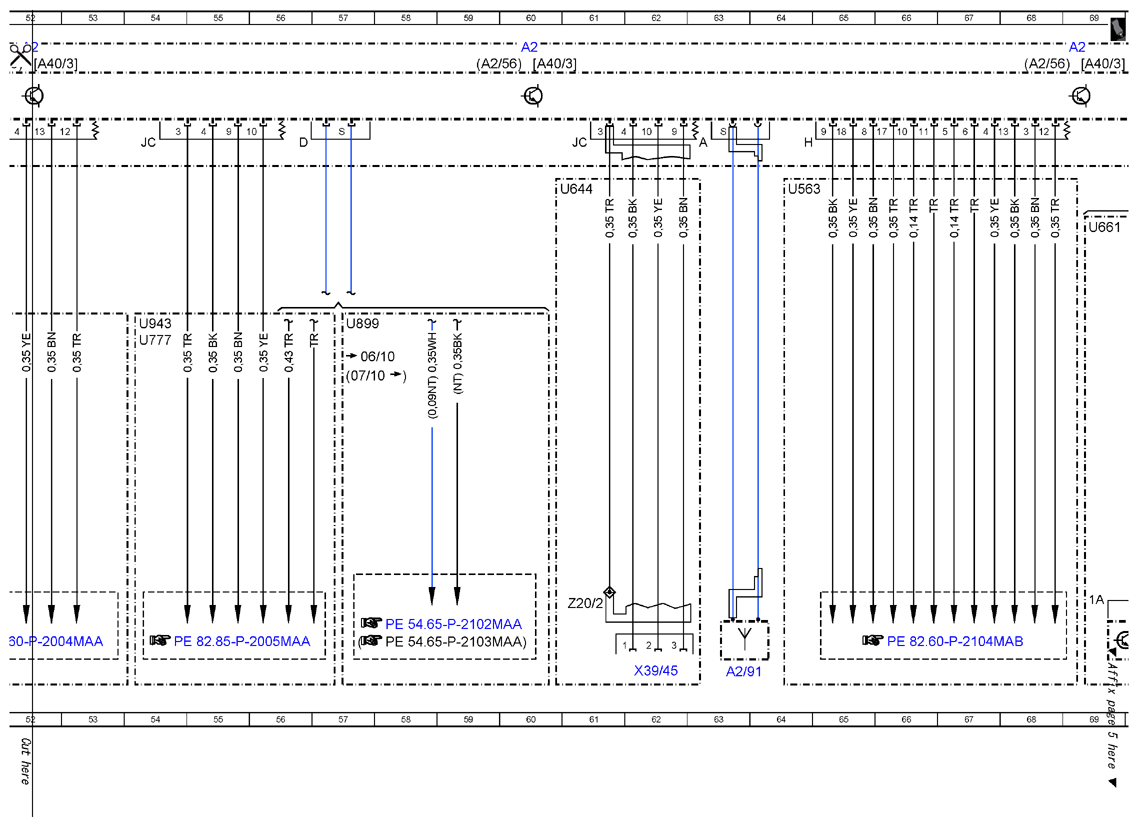

| A2/91 |
Bluetooth antenna |
63L |
| A2/93 |
Roof antenna module |
22L |

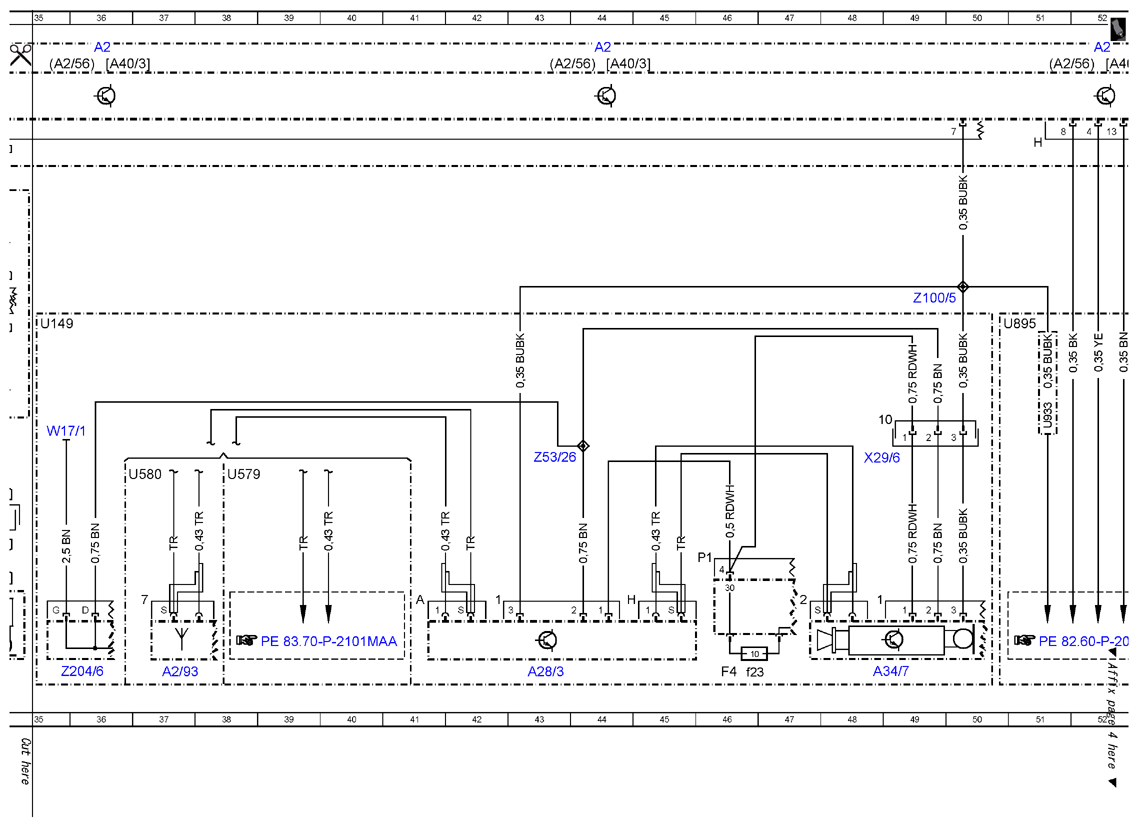

| A2/93 |
Roof antenna module |
37L |
| A28/3 |
E-net compensator |
43L |
| A34/7 |
Bluetooth module |
48L |
| A40/3 |
COMAND operating, display and control unit |
4A |
| A40/3 |
COMAND operating, display and control unit |
12A |
| A40/3 |
COMAND operating, display and control unit |
20A |
| A40/3 |
COMAND operating, display and control unit |
28A |
| A40/3 |
COMAND operating, display and control unit |
36A |
| A40/3 |
COMAND operating, display and control unit |
44A |
| A40/3 |
COMAND operating, display and control unit |
52A |
| A40/3 |
COMAND operating, display and control unit |
60A |
| A40/3 |
COMAND operating, display and control unit |
69A |
| A49/6 |
Radio antenna interference filter |
28L |
| A49/6x1 |
Radio antenna interference suppression filter electrical connector |
28J |
| A67b1 |
Hands-free system microphone group |
33L |
| A67b1x1 |
Hands-free system microphone group connector |
32K |
| A90/1 |
TV combination tuner (analog/digital) |
70L |
| A90/3 |
TV digital tuner |
71L |
| CAN B |
Interior CAN |
4K |
| F3 |
Cockpit fuse box |
75L |
| F3f15 |
Fuse 15 |
75L |
| F4 |
Load compartment fuse and relay box |
1L |
| F4 |
Load compartment fuse and relay box |
30L |
| F4 |
Load compartment fuse and relay box |
46L |
| F4f20 |
Fuse 20 |
30L |
| F4f23 |
Fuse 23 |
46L |
| F4f25 |
Fuse 25 |
2L |
| H4/3 |
Left rear door speaker |
14L |
| H4/33 |
Left front door tweeter |
10L |
| H4/34 |
Right front door tweeter |
13L |
| H4/35 |
Left rear door tweeter |
15L |
| H4/36 |
Right rear door tweeter |
18L |
| H4/4 |
Right rear door speaker |
17L |
| H4/5 |
Left front door speaker |
9L |
| H4/6 |
Right front door speaker |
11L |
| MOST |
Media Oriented System Transport |
6B |
| MOST |
Media Oriented System Transport |
77B |
| N10/8 |
Rear SAM control unit |
31L |

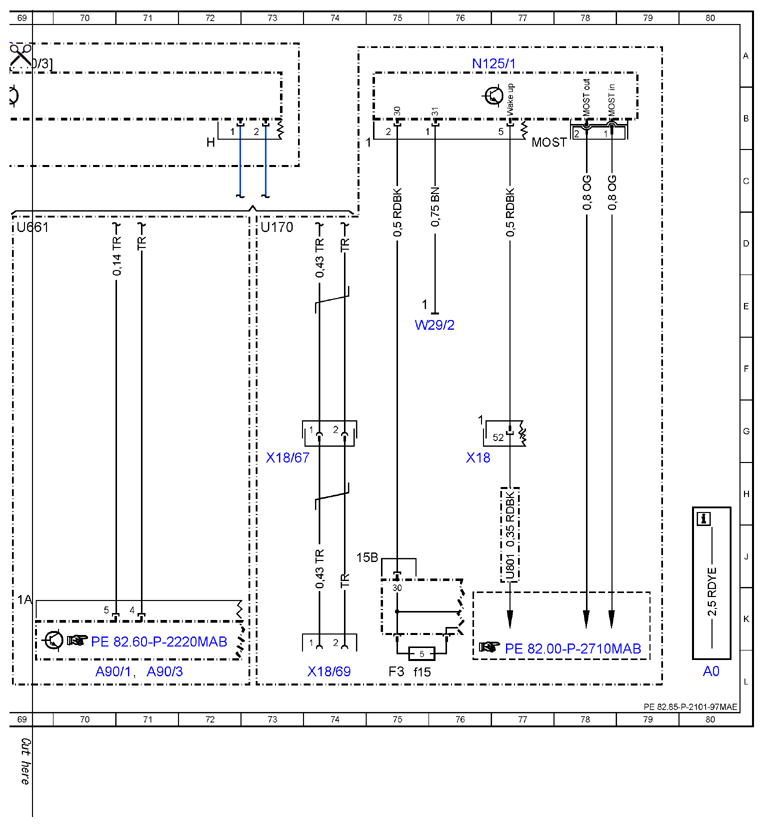

| N125/1 |
Media interface control unit |
76A |
| U12 |
Valid for left-hand drive vehicles |
31D |
| U13 |
Valid for right-hand drive vehicles |
31D |
| U149 |
Valid for comfort telephone |
35E |
| U170 |
Valid for media interface |
73D |
| U500 |
Not valid for Sound System |
8C |
| U563 |
Valid for rear entertainment (DVD) |
64C |
| U579 |
Valid for stationary heater |
38H |
| U580 |
Valid without stationary heater |
36H |
| U644 |
Valid for walkman connection |
60C |
| U661 |
Valid for TV and video in rear |
69D |
| U731 |
Valid for head unit high |
1B |
| U777 |
Valid for navigation |
54F |
| U801 |
Valid for UHI (Universal Portable CTEL Interface) |
77J |
| U865 |
Valid for CD Radio Entry Audio 20 |
1A |
| U866 |
Valid for head unit APS operating unit, Audio 50 |
1A |
| U895 |
Valid for rear audio |
50E |
| U899 |
Valid for backup camera |
57E |
| U933 |
Not valid for telephone |
51G |
| U943 |
Valid for South Korea |
54E |
| W17/1 |
Ground (left rear seat) |
3G |
| W17/1 |
Ground (left rear seat) |
35G |
| W29/2 |
Ground (right A-pillar) |
75E |
| W29/8 |
Ground (left D-pillar) |
27G |
| X18 |
Interior/cockpit connector |
76H |
| X18/2 |
Interior/roof connector |
32E |
| X18/67 |
Media interface connector 1 |
73H |
| X18/69 |
Media interface connector 2 |
74L |
| X29/6 |
Center console intermediate connector |
48H |
| X30/7 |
Voltage distributor (CAN) connector |
4L |
| X35/1 |
Left front door separation point |
8E |
| X35/2 |
Right front door separation point |
11E |
| X35/3 |
Left rear door separation point |
14E |
| X35/4 |
Right rear door separation point |
16E |
| X39/45 |
Walkman separation point |
62L |
| Z100/5 |
Wake-up signal 2 connector sleeve |
49E |
| Z20/2 |
Cable end insulation not stripped, placed inside insulated tubing |
61K |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
3L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
36L |
| Z53/26 |
Telematics circuit 31 interior solder point 1 |
43G |
