| A0 |
Color code key |
64A |
| A2 |
Radio |
4A |
| A2 |
Radio |
12A |
| A2 |
Radio |
20A |
| A2 |
Radio |
28A |
| A2 |
Radio |
53A |
| A2 |
Radio |
36A |
| A2 |
Radio |
44A |
| A2/19 |
FM rear window antenna amplifier |
54L |
| A2/56 |
Radio and navigation unit |
3A |
| A2/56 |
Radio and navigation unit |
11A |
| A2/56 |
Radio and navigation unit |
20A |
| A2/56 |
Radio and navigation unit |
27A |
| A2/56 |
Radio and navigation unit |
35A |
| A2/56 |
Radio and navigation unit |
43A |
| A2/56 |
Radio and navigation unit |
52A |

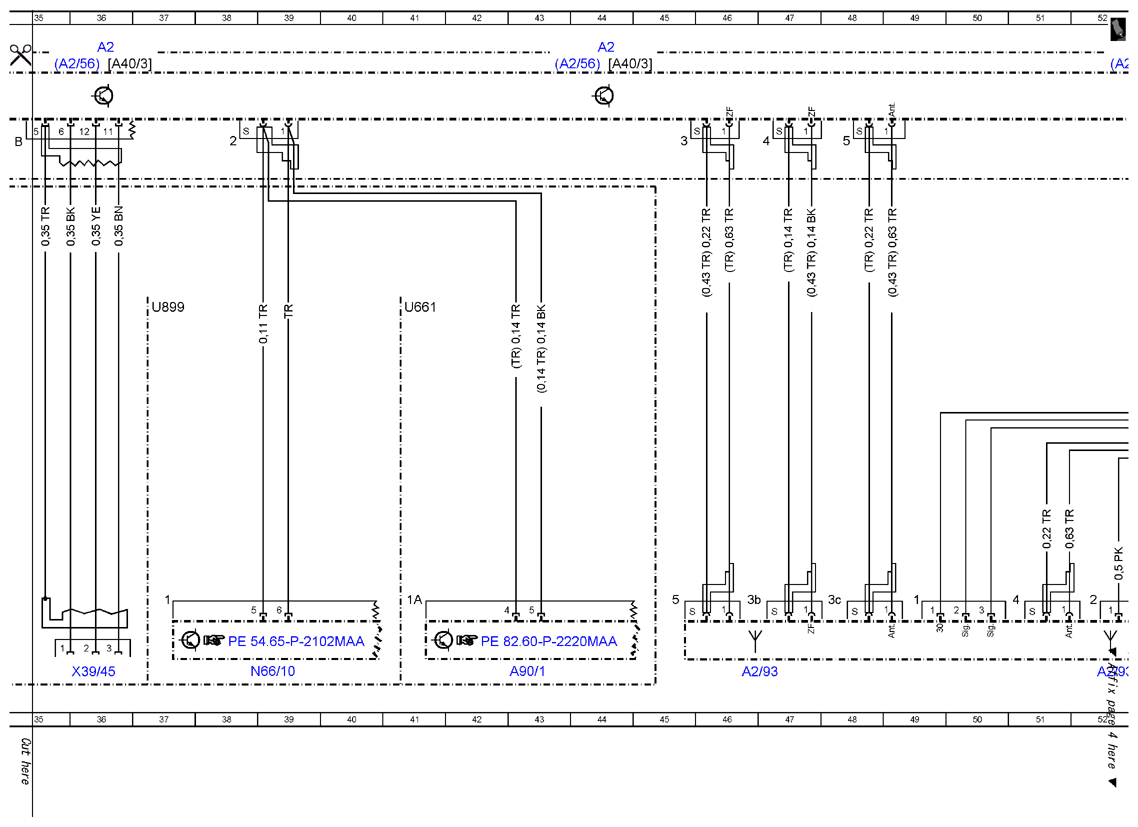

| A2/93 |
Roof antenna module |
46L |
| A2/93 |
Roof antenna module |
52L |
| A40/3 |
COMAND operating, display and control unit |
4A |
| A40/3 |
COMAND operating, display and control unit |
12A |
| A40/3 |
COMAND operating, display and control unit |
20A |
| A40/3 |
COMAND operating, display and control unit |
28A |
| A40/3 |
COMAND operating, display and control unit |
36A |
| A40/3 |
COMAND operating, display and control unit |
44A |
| A40/3 |
COMAND operating, display and control unit |
53A |
| A40/4 |
DVD player |
19L |

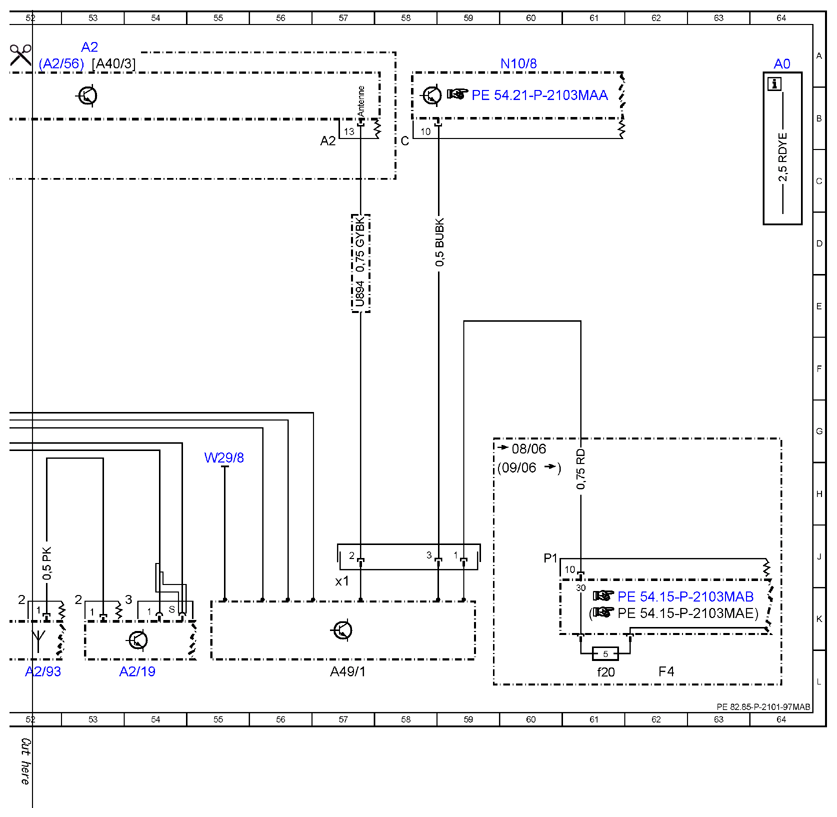

| A49/1 |
Interference filter 1 |
57L |
| A49/1x1 |
Interference filter 1 input connector |
57J |
| A90/1 |
TV combination tuner (analog/digital) |
43L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4 |
Load compartment fuse and relay box |
62L |
| F4f20 |
Fuse 20 |
61L |
| F4f25 |
Fuse 25 |
2L |

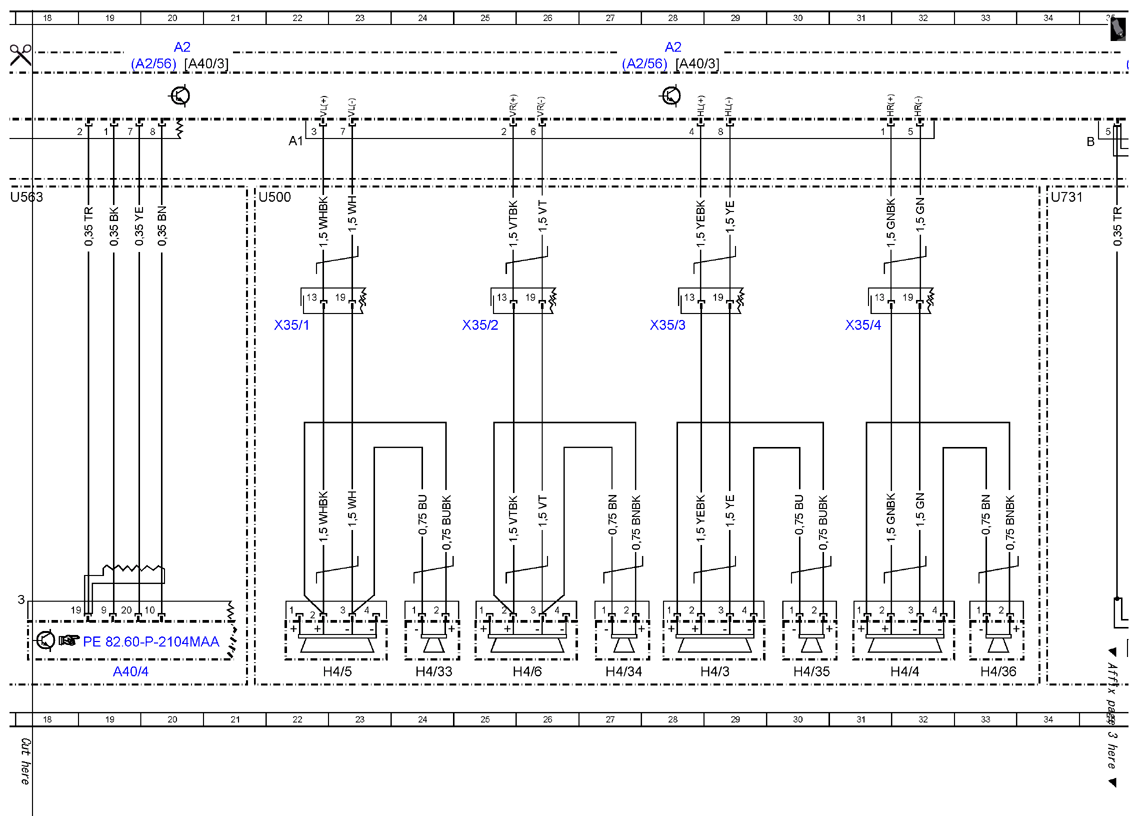

| H4/3 |
Left rear door speaker |
29L |
| H4/33 |
Left front door tweeter |
24L |
| H4/34 |
Right front door tweeter |
27L |
| H4/35 |
Left rear door tweeter |
30L |
| H4/36 |
Right rear door tweeter |
33L |
| H4/4 |
Right rear door speaker |
32L |
| H4/5 |
Left front door speaker |
23L |
| H4/6 |
Right front door speaker |
26L |

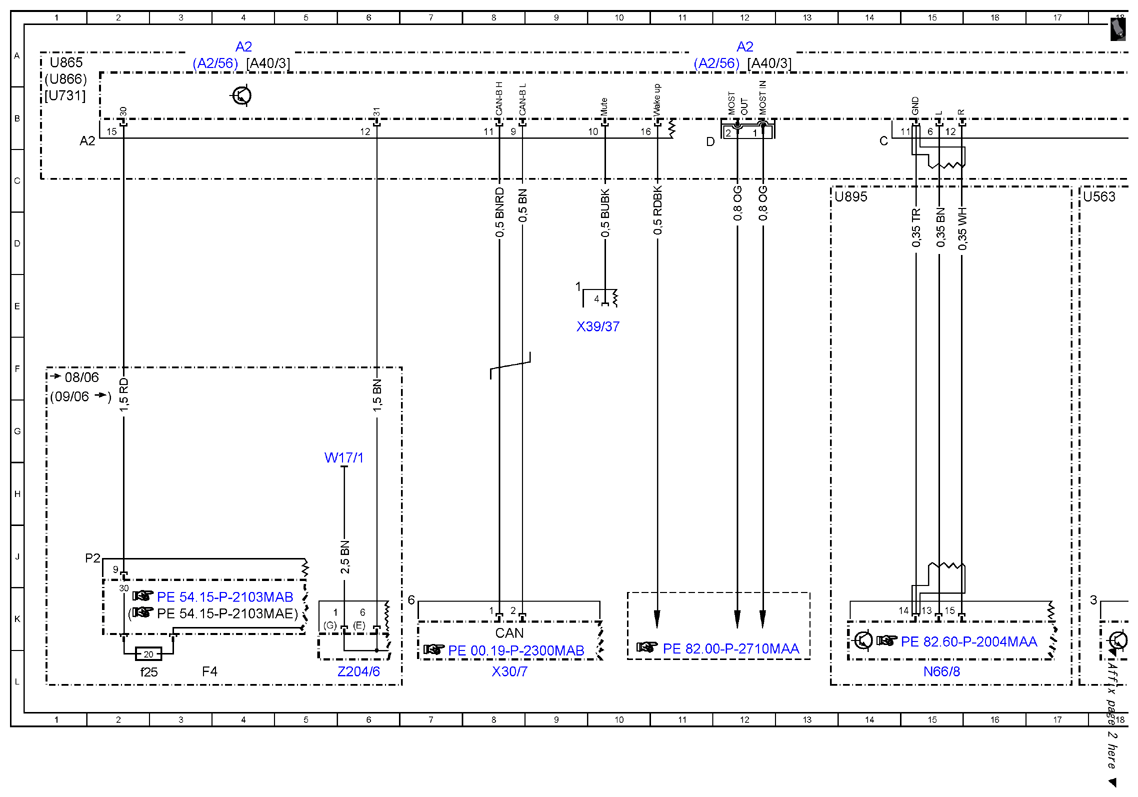

| MOST |
Media Oriented System Transport |
12B |
| N10/8 |
Rear SAM control unit |
60A |
| N66/10 |
Backup camera voltage supply module |
39L |
| N66/8 |
Rear audio control unit |
15L |
| U500 |
Not valid for Sound System |
21C |
| U563 |
Valid for rear entertainment (DVD) |
17C |
| U661 |
Valid for TV and video in rear |
41E |
| U731 |
Valid for head unit high |
34C |
| U731 |
Valid for head unit high |
1B |
| U865 |
Valid for CD Radio Entry Audio 20 |
1A |
| U866 |
Valid for head unit APS operating unit, Audio 50 |
1A |
| U894 |
Not valid in vehicles with rear audio |
57E |
| U895 |
Valid for rear audio |
13C |
| U899 |
Valid for backup camera |
37E |
| W17/1 |
Ground (left rear seat) |
5H |
| W29/8 |
Ground (left D-pillar) |
55H |
| X30/7 |
Voltage distributor (CAN) connector |
8L |
| X35/1 |
Left front door separation point |
22E |
| X35/2 |
Right front door separation point |
25E |
| X35/3 |
Left rear door separation point |
28E |
| X35/4 |
Right rear door separation point |
31E |
| X39/37 |
CTEL separation point |
10E |
| X39/45 |
Walkman separation point |
36L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
6L |
