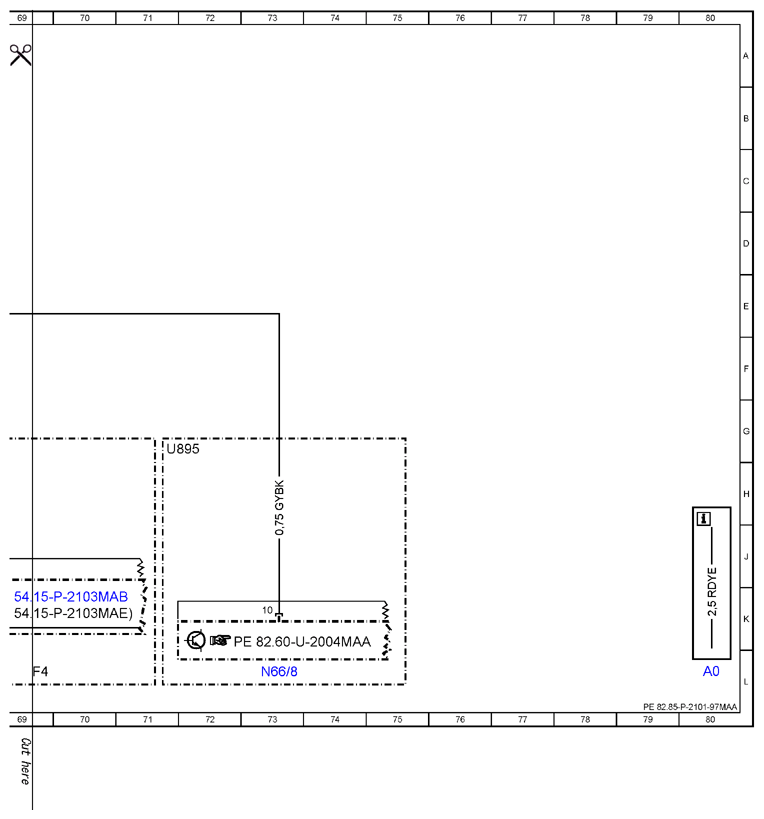

| A0 |
Color code key |
80L |
| A2/19 |
FM rear window antenna amplifier |
60L |
| A2/5 |
GPS antenna splitter |
50L |

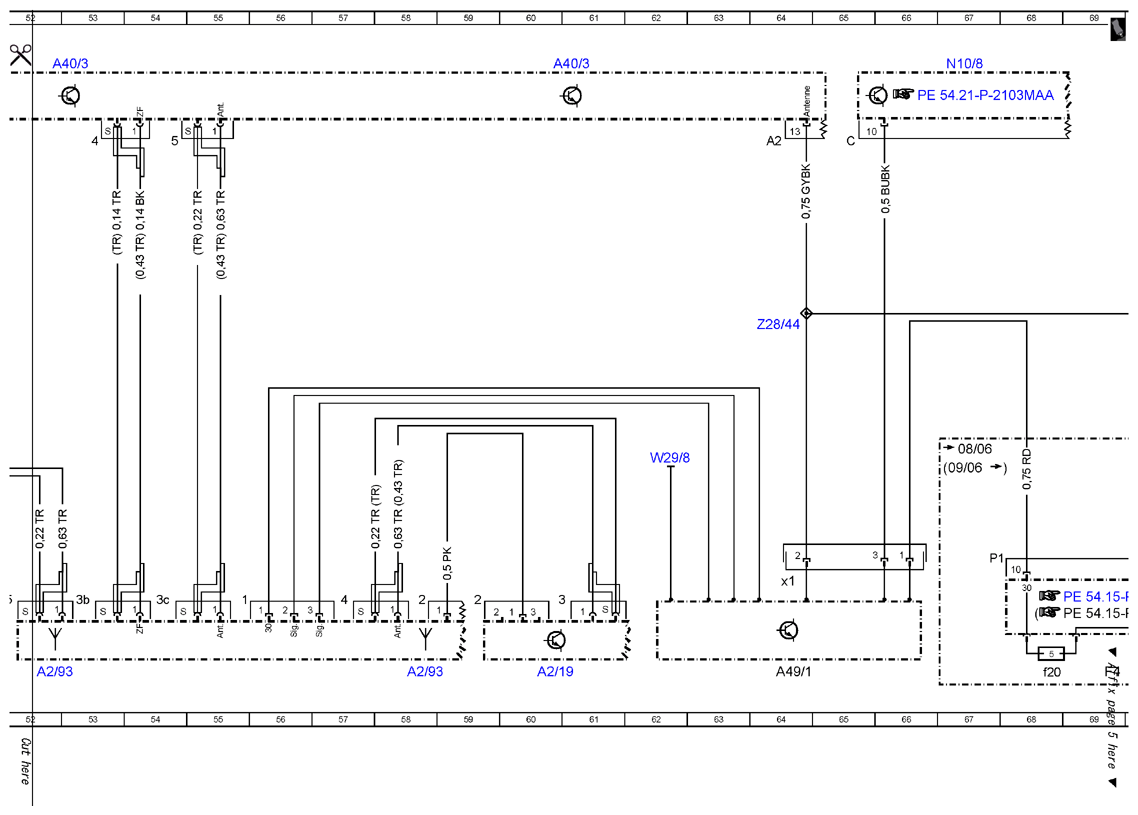

| A2/93 |
Roof antenna module |
52L |
| A2/93 |
Roof antenna module |
58L |

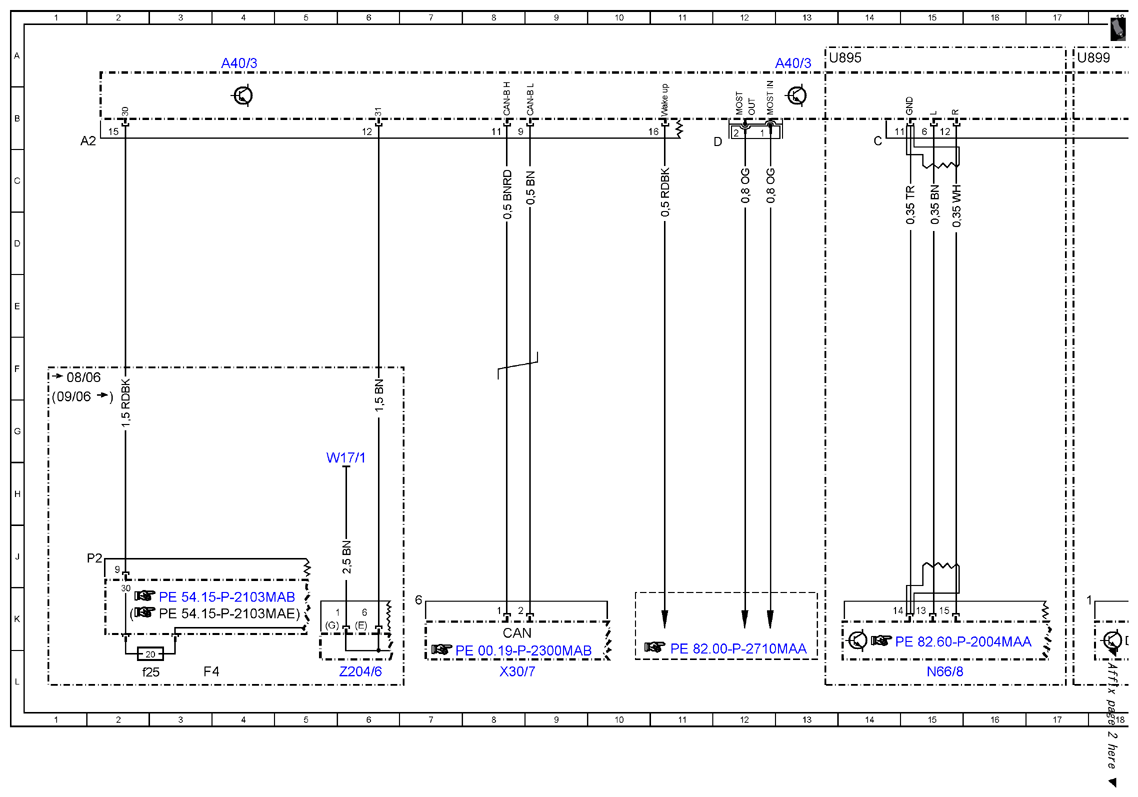

| A40/3 |
COMAND operating, display and control unit |
4A |
| A40/3 |
COMAND operating, display and control unit |
13A |
| A40/3 |
COMAND operating, display and control unit |
28A |
| A40/3 |
COMAND operating, display and control unit |
20A |
| A40/3 |
COMAND operating, display and control unit |
36A |
| A40/3 |
COMAND operating, display and control unit |
44A |
| A40/3 |
COMAND operating, display and control unit |
53A |
| A40/3 |
COMAND operating, display and control unit |
61A |

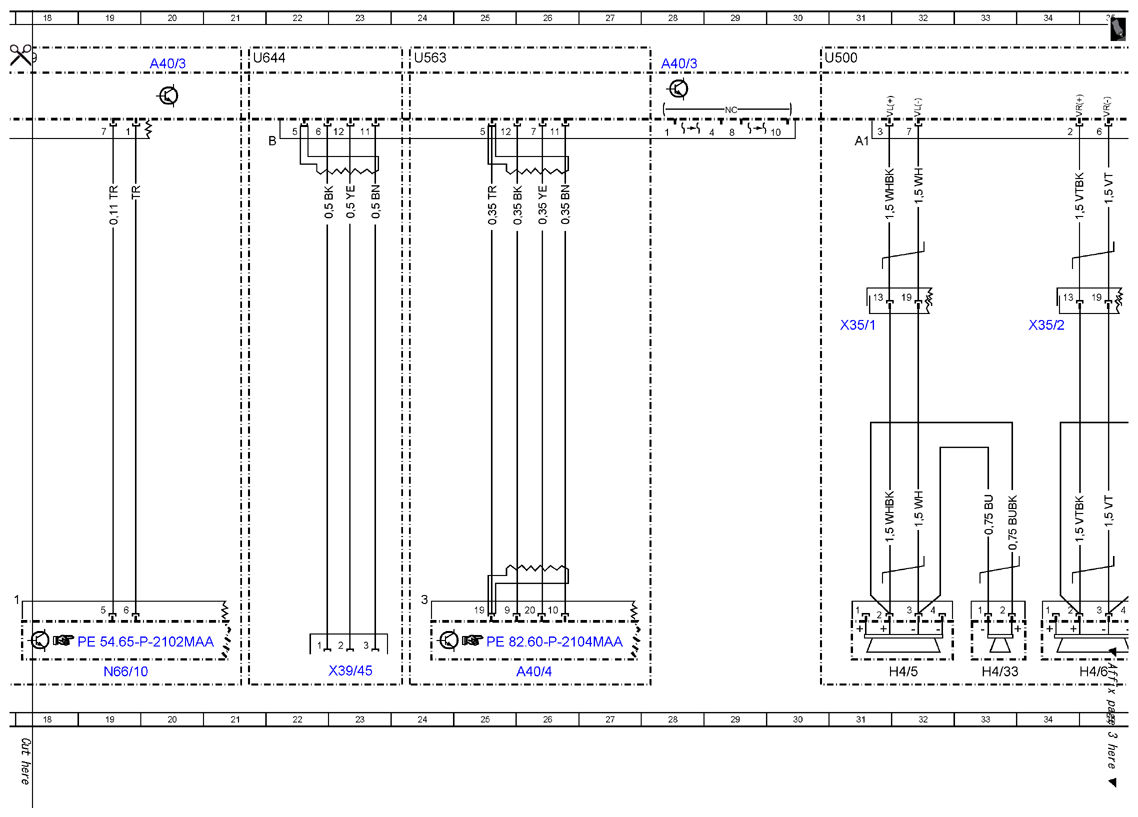

| A40/4 |
DVD player |
26L |
| A49/1 |
Interference filter 1 |
64L |
| A49/1x1 |
Interference filter 1 input connector |
64J |
| F4 |
Load compartment fuse and relay box |
3L |
| F4 |
Load compartment fuse and relay box |
69L |
| F4f20 |
Fuse 20 |
68L |
| F4f25 |
Fuse 25 |
3L |

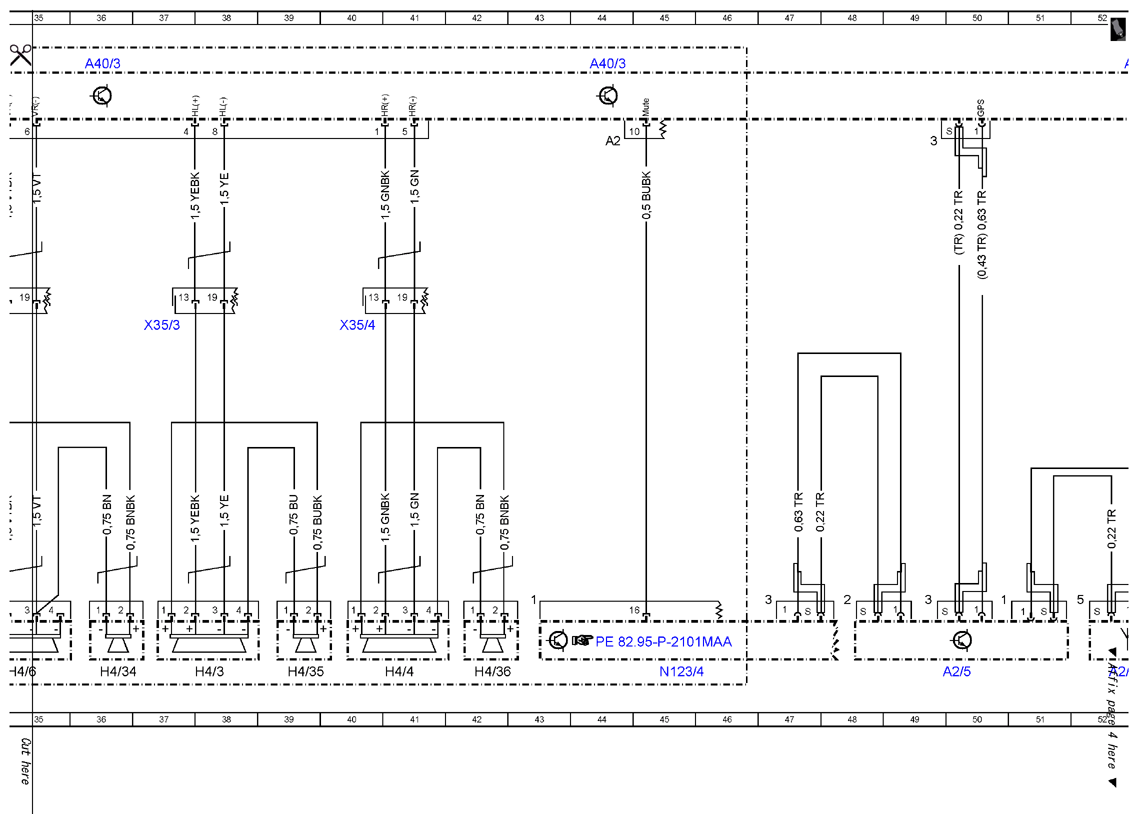

| H4/3 |
Left rear door speaker |
38L |
| H4/33 |
Left front door tweeter |
33L |
| H4/34 |
Right front door tweeter |
36L |
| H4/35 |
Left rear door tweeter |
39L |
| H4/36 |
Right rear door tweeter |
42L |
| H4/4 |
Right rear door speaker |
41L |
| H4/5 |
Left front door speaker |
32L |
| H4/6 |
Right front door speaker |
35L |
| MOST |
Media Oriented System Transport |
12B |
| N10/8 |
Rear SAM control unit |
67A |
| N123/4 |
Emergency call system control unit |
45L |
| N66/10 |
Backup camera voltage supply module |
19L |
| N66/8 |
Rear audio control unit |
15L |
| N66/8 |
Rear audio control unit |
73L |
| U500 |
Not valid for Sound System |
30A |
| U563 |
Valid for rear entertainment (DVD) |
24A |
| U644 |
Valid for walkman connection |
21A |
| U895 |
Valid for rear audio |
13A |
| U895 |
Valid for rear audio |
71G |
| U899 |
Valid for backup camera |
17A |
| W17/1 |
Ground (left rear seat) |
6H |
| W29/8 |
Ground (left D-pillar) |
62H |
| X30/7 |
Voltage distributor (CAN) connector |
8L |
| X35/1 |
Left front door separation point |
31E |
| X35/2 |
Right front door separation point |
34E |
| X35/3 |
Left rear door separation point |
37E |
| X35/4 |
Right rear door separation point |
40E |
| X39/45 |
Walkman separation point |
23L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
6L |
| Z28/44 |
Antenna actuation connector sleeve |
64E |
