| F4 |
Load compartment fuse and relay box |
3 L |
| F4f35 |
Fuse 35 |
2 L |
| H4/27 |
Center cockpit speaker (centerfill) |
31 L |
| H4/29 |
Subwoofer |
12 L |
| H4/29x1 |
Subwoofer connector |
11 H |
| H4/3 |
Left rear door speaker |
25 L |
| H4/33 |
Left front door tweeter |
20 L |
| H4/34 |
Right front door tweeter |
23 L |
| H4/35 |
Left rear door tweeter |
26 L |
| H4/36 |
Right rear door tweeter |
29 L |
| H4/4 |
Right rear door speaker |
28 L |
| H4/5 |
Left front door speaker |
19 L |
| H4/54 |
Left rear surround speaker |
32 L |
| H4/57 |
Right rear surround speaker |
34 L |
| H4/6 |
Right front door speaker |
22 L |

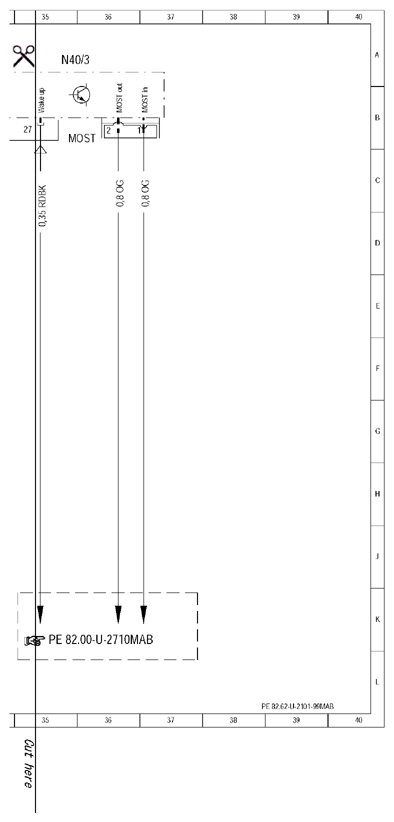

| MOST |
Media Oriented System Transport |
35 C |
| N123/4 |
Emergency call system control unit |
15 L |

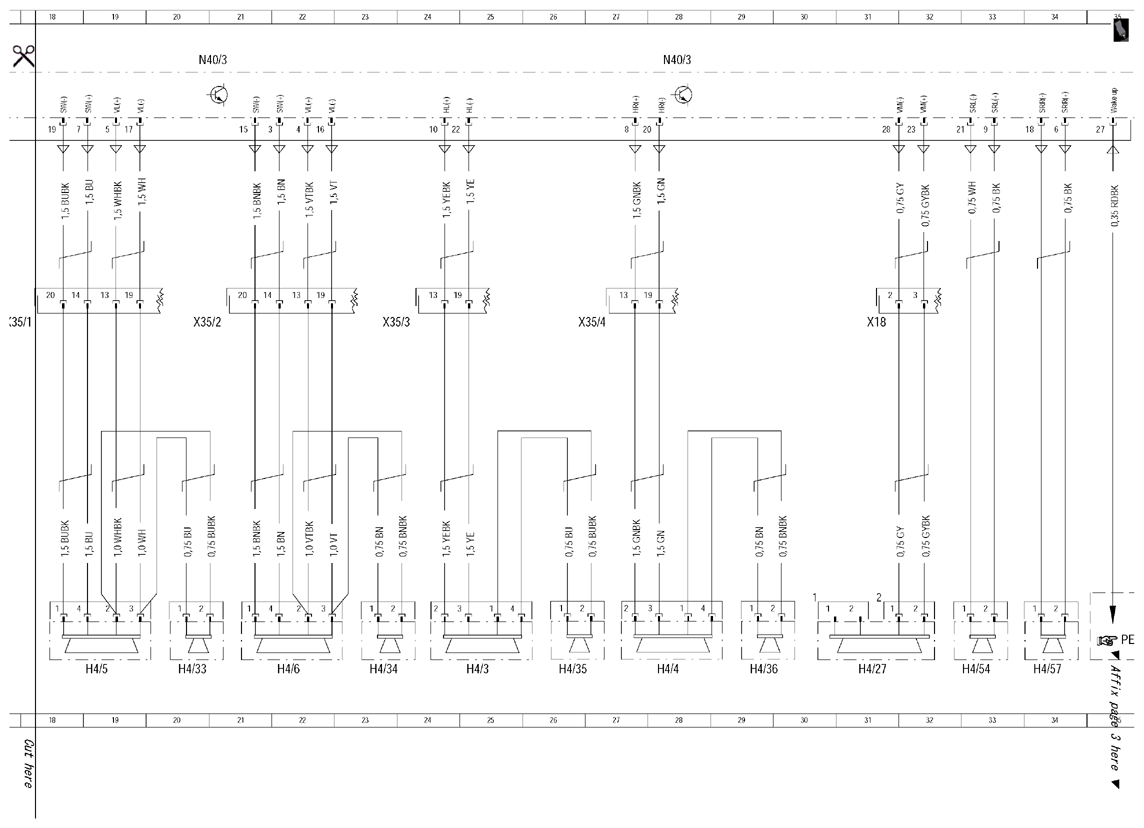

| N40/3 |
Amplifier for sound system |
4 A |
| N40/3 |
Amplifier for sound system |
14 A |
| N40/3 |
Amplifier for sound system |
20 A |
| N40/3 |
Amplifier for sound system |
28 A |
| N40/3 |
Amplifier for sound system |
35 A |

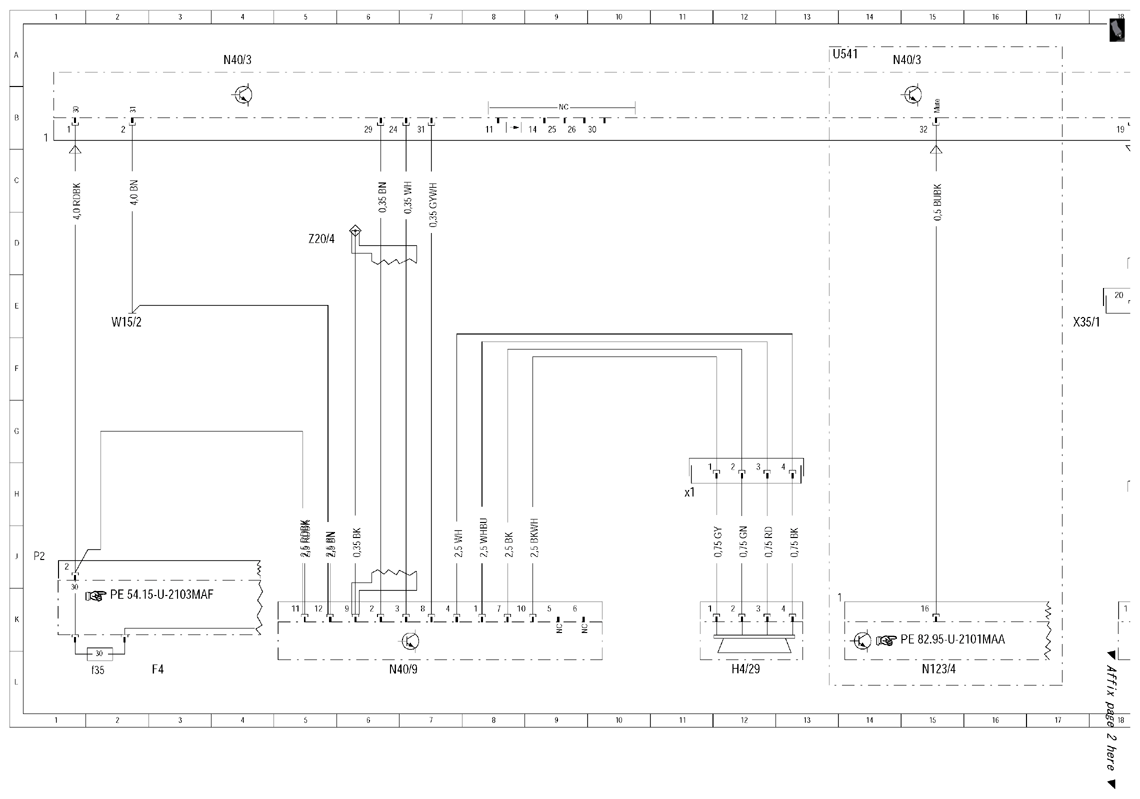

| N40/9 |
Subwoofer amplifier |
6 L |
| U541 |
Valid for TELE AID emergency call system |
13 A |
| W15/2 |
Ground (left footwell) |
2 E |
| X18 |
Interior/cockpit connector |
31 E |
| X35/1 |
Left front door separation point |
17 E |
| X35/2 |
Right front door separation point |
20 E |
| X35/3 |
Left rear door separation point |
23 E |
| X35/4 |
Right rear door separation point |
26 E |
| Z20/4 |
Cable end insulation not stripped, placed inside insulated tubing |
5 D |
