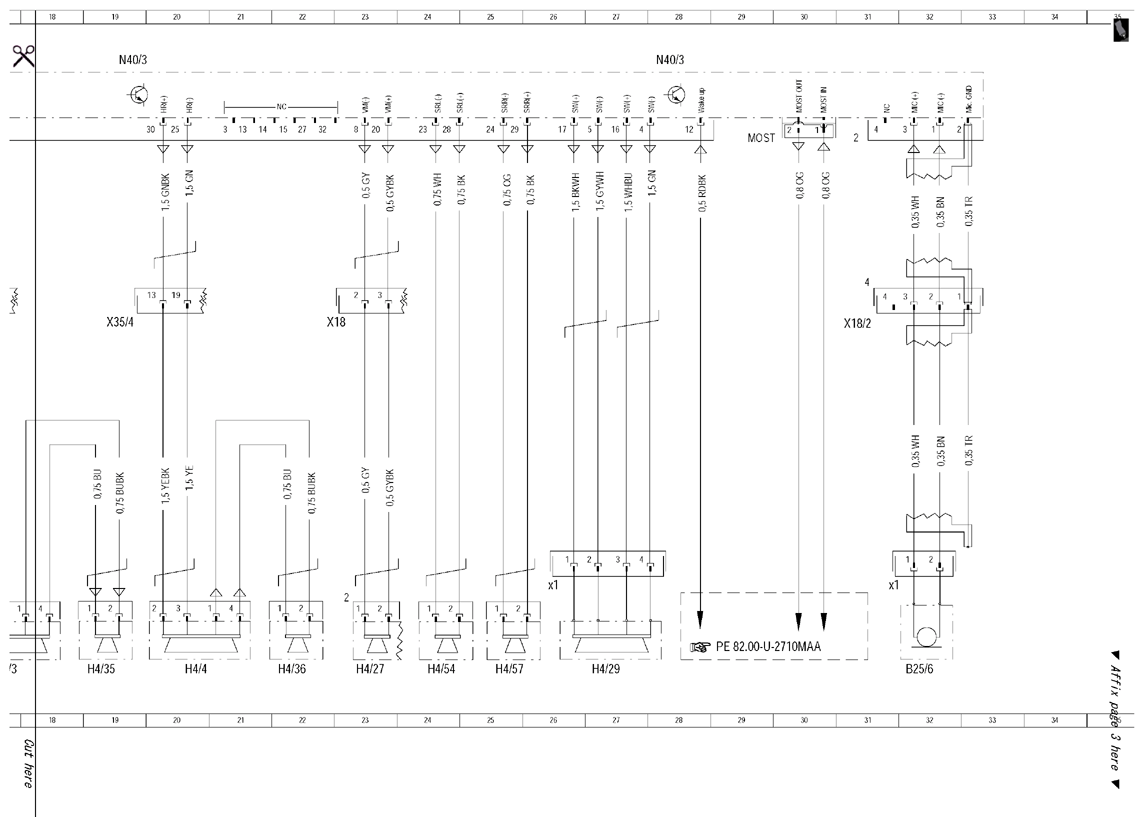

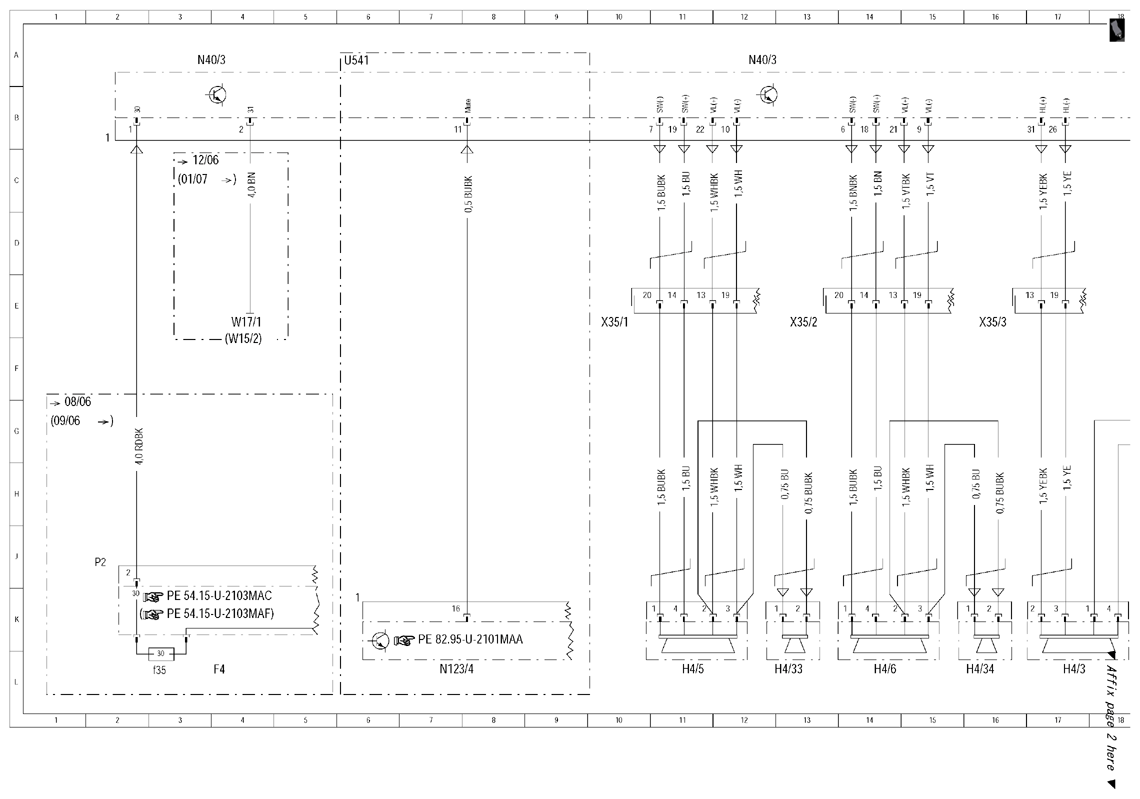

| B25/6 |
Sound amplifier microphone |
32 L |
| B25/6x1 |
Sound amplifier microphone connector |
31 K |
| F4 |
Load compartment fuse and relay box |
3 L |
| F4f35 |
Fuse 35 |
3 L |
| H4/27 |
Center cockpit speaker (centerfill) |
23 L |
| H4/29 |
Subwoofer |
27 L |
| H4/29x1 |
Subwoofer connector |
26 K |
| H4/3 |
Left rear door speaker |
17 L |
| H4/33 |
Left front door tweeter |
12 L |
| H4/34 |
Right front door tweeter |
15 L |
| H4/35 |
Left rear door tweeter |
19 L |
| H4/36 |
Right rear door tweeter |
22 L |
| H4/4 |
Right rear door speaker |
20 L |
| H4/5 |
Left front door speaker |
11 L |
| H4/54 |
Left rear surround speaker |
24 L |
| H4/57 |
Right rear surround speaker |
25 L |
| H4/6 |
Right front door speaker |
14 L |
| MOST |
Media Oriented System Transport |
29 B |
| N123/4 |
Emergency call system control unit |
7 L |
| N40/3 |
Amplifier for sound system |
3 A |
| N40/3 |
Amplifier for sound system |
12 A |
| N40/3 |
Amplifier for sound system |
19 A |
| N40/3 |
Amplifier for sound system |
28 A |
| U541 |
Valid for TELE AID emergency call system |
6 A |
| W15/2 |
Ground (left footwell) |
4 F |
| W17/1 |
Ground (left rear seat) |
4 E |
| X18 |
Interior/cockpit connector |
22 E |
| X18/2 |
Interior/roof connector |
31 E |
| X35/1 |
Left front door separation point |
10 E |
| X35/2 |
Right front door separation point |
13 E |
| X35/3 |
Left rear door separation point |
16 E |
| X35/4 |
Right rear door separation point |
19 E |
