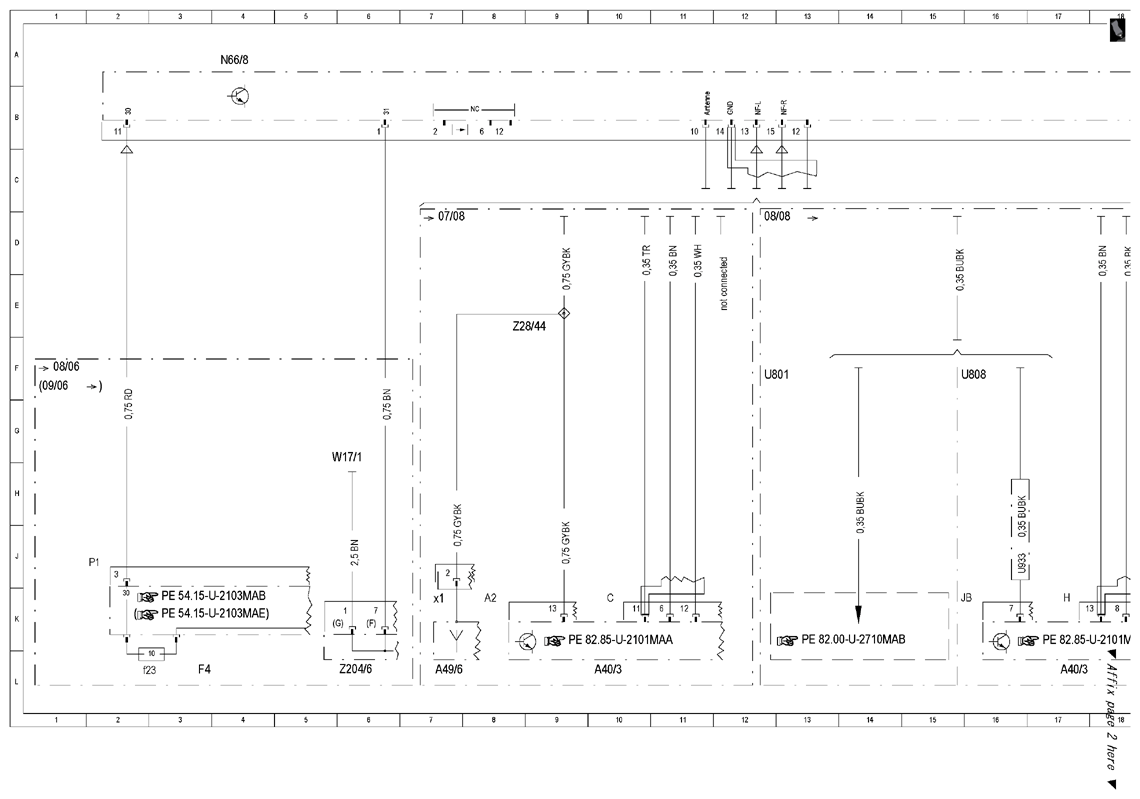

| A40/3 |
COMAND operating, display and control unit |
10 L |
| A40/3 |
COMAND operating, display and control unit |
17 L |
| A49/6 |
Radio antenna interference filter |
7 L |
| A49/6x1 |
Radio antenna interference suppression filter electrical connector |
7 K |
| F4 |
Load compartment fuse and relay box |
3 L |
| F4f23 |
Fuse 23 |
2 L |
| N66/8 |
Rear audio control unit |
4 A |

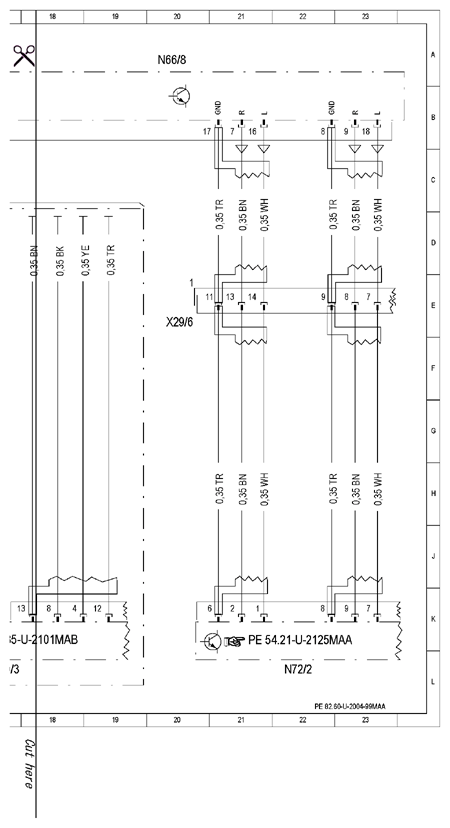

| N66/8 |
Rear audio control unit |
20 A |
| N72/2 |
RCP [HBF] control unit |
22 L |
| U801 |
Valid for UHI (Universal Portable CTEL Interface) |
12 F |
| U808 |
Not valid for UPCI [UHI] (Universal Portable CTEL Interface) |
15 F |
| U933 |
Not valid for telephone |
16 J |
| W17/1 |
Ground (left rear seat) |
5 H |
| X29/6 |
Center console intermediate connector |
20 E |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
6 L |
| Z28/44 |
Antenna actuation connector sleeve |
8 E |
