| A0 |
Color code key |
48L |

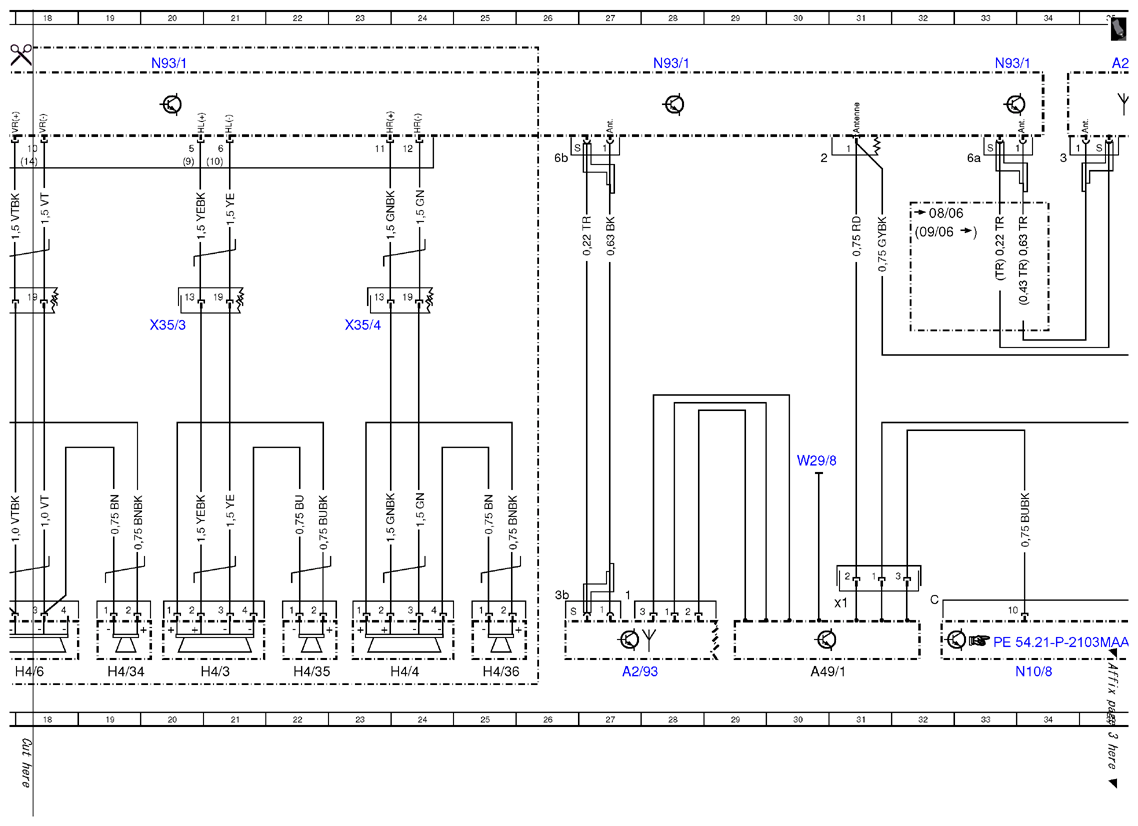

| A2/93 |
Roof antenna module |
27L |

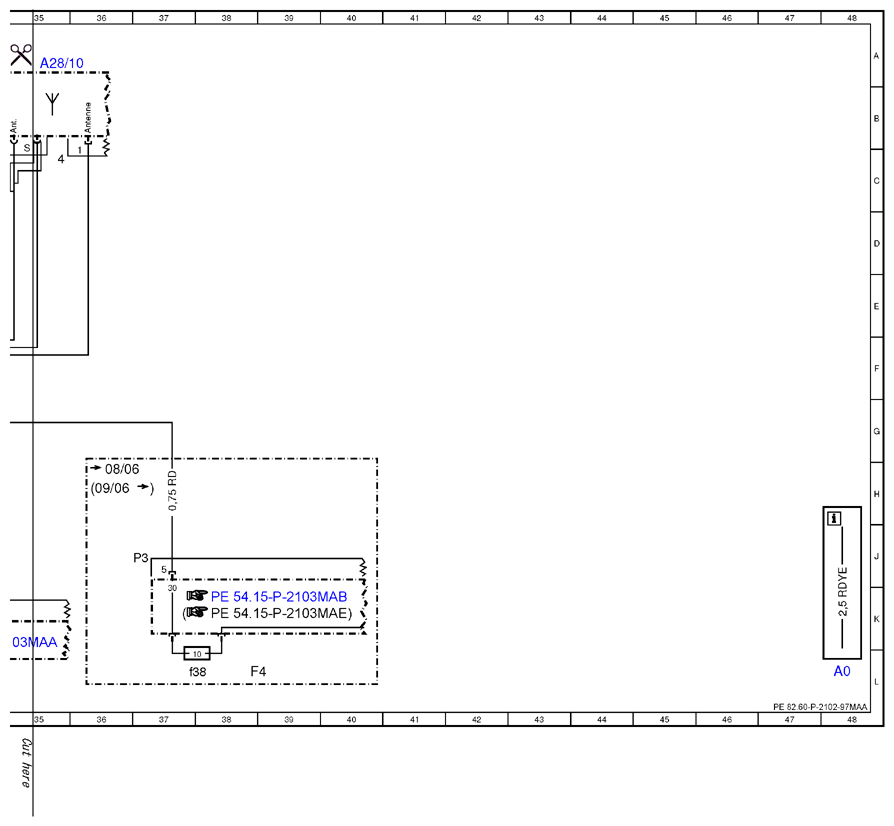

| A28/10 |
VICS antenna splitter |
35A |
| A49/1 |
Interference filter 1 |
30L |
| A49/1x1 |
Interference filter 1 input connector |
30K |
| F4 |
Load compartment fuse and relay box |
3L |
| F4 |
Load compartment fuse and relay box |
38L |
| F4f38 |
Fuse 38 |
2L |
| F4f38 |
Fuse 38 |
38L |
| H4/3 |
Left rear door speaker |
21L |
| H4/33 |
Left front door tweeter |
16L |
| H4/34 |
Right front door tweeter |
19L |
| H4/35 |
Left rear door tweeter |
22L |
| H4/36 |
Right rear door tweeter |
25L |
| H4/4 |
Right rear door speaker |
24L |
| H4/5 |
Left front door speaker |
15L |
| H4/6 |
Right front door speaker |
18L |
| MOST |
Media Oriented System Transport |
11B |
| N10/8 |
Rear SAM control unit |
34L |

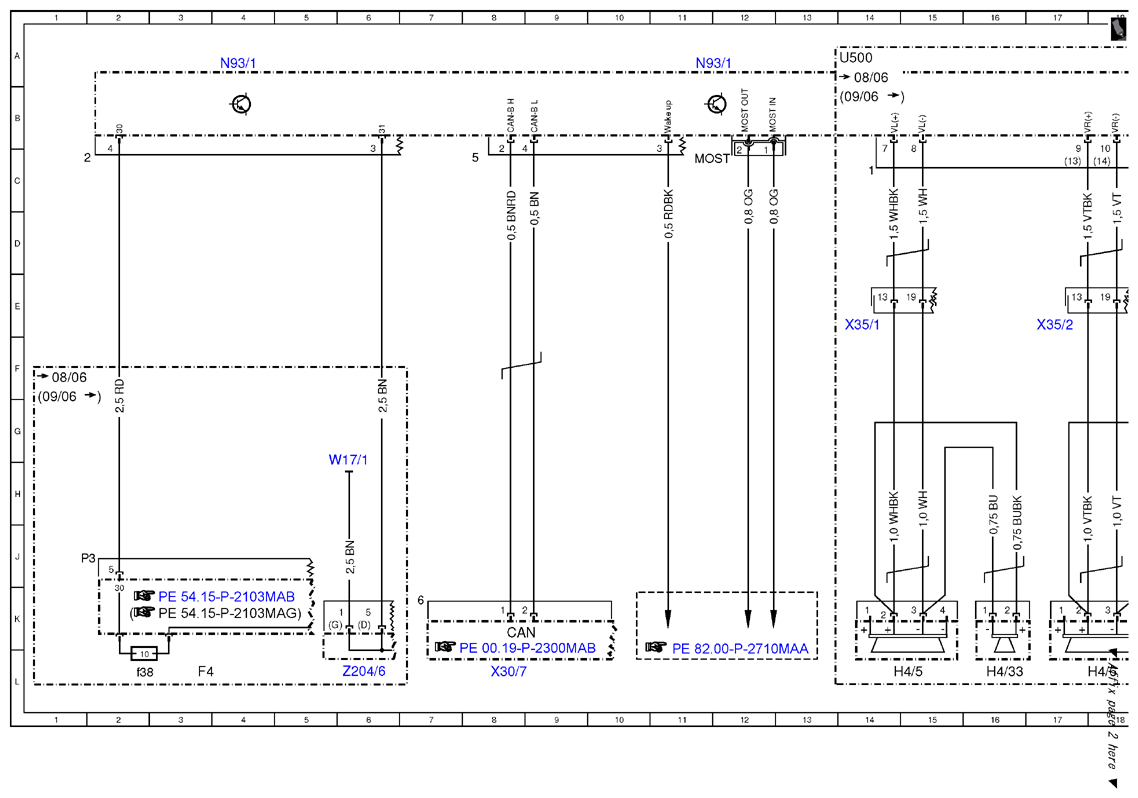

| N93/1 |
Audio gateway control unit |
4A |
| N93/1 |
Audio gateway control unit |
11A |
| N93/1 |
Audio gateway control unit |
20A |
| N93/1 |
Audio gateway control unit |
28A |
| N93/1 |
Audio gateway control unit |
33A |
| U500 |
Not valid for Sound System |
14A |
| W17/1 |
Ground (left rear seat) |
6H |
| W29/8 |
Ground (left D-pillar) |
30H |
| X30/7 |
Voltage distributor (CAN) connector |
8L |
| X35/1 |
Left front door separation point |
14E |
| X35/2 |
Right front door separation point |
17E |
| X35/3 |
Left rear door separation point |
20E |
| X35/4 |
Right rear door separation point |
23E |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
6L |
