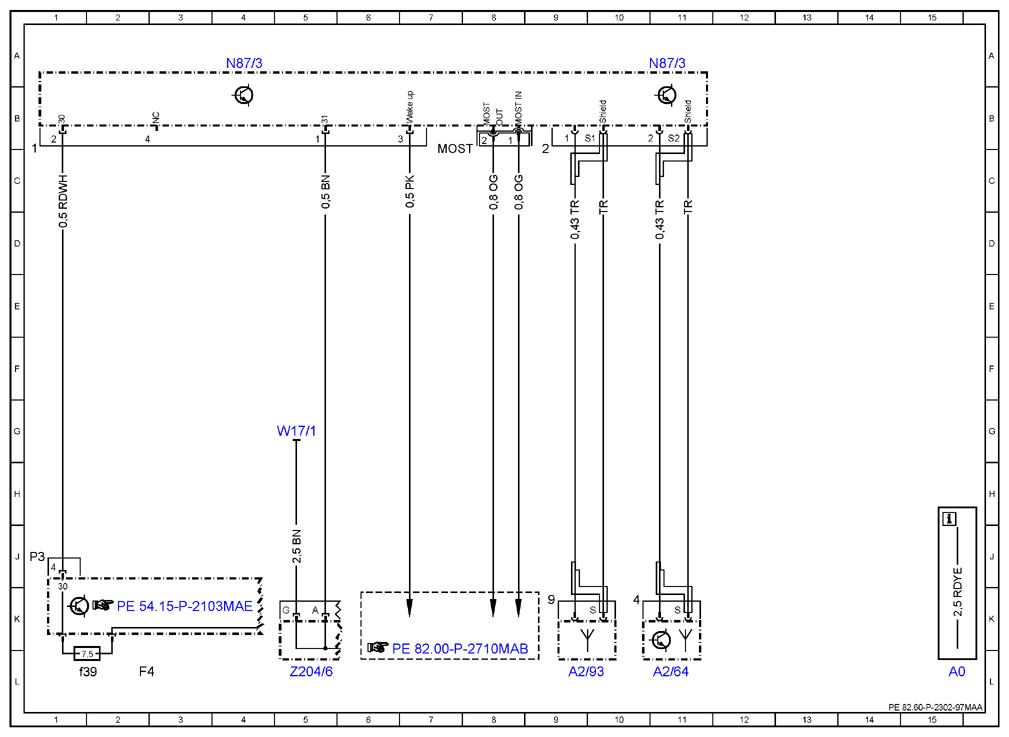

Wiring diagram for Digital Audio Broadcasting control unit system (DAB) - PE82.60-P-2302-97MAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2/64 | Left antenna amplifier module | 11L |
| A2/93 | Roof antenna module | 9L |
| F4 | Load compartment fuse and relay box | 2L |
| F4f39 | Fuse 39 | 1L |
| MOST | Media Oriented System Transport | 8B |
| N87/3 | Digital Audio Broadcasting control unit | 4A |
| N87/3 | Digital Audio Broadcasting control unit | 11A |
| W17/1 | Ground (left rear seat) | 5G |
| Z204/6 | Circuit 31 left rear seat voltage distributor connector | 5L |
