Wiring diagram for DVD player control unit - PE82.60-U-2104-99MAB

Code:	Designation:	Position:
A40/3	COMAND operating, display and control unit	16 L
A40/4	DVD player	4 A
A40/4	DVD player	12 A
A40/4	DVD player	18 A
A40/4	DVD player	27 A
A40/4	DVD player	35 A
A40/5	Left rear display	36 L
A40/6	Right rear display	25 L
F4	Load compartment fuse and relay box	3 L
F4f23	Fuse 23	2 L
W17/1	Ground (left rear seat)	12 H
X30/35	Telematics CAN voltage distributor connector	10 L
X30/35	Telematics CAN voltage distributor connector	30 L
X30/7	Voltage distributor (CAN) connector	7 L
X55/3	Left front seat contacting strip	32 H
X55/3	Left front seat contacting strip	36 E
X55/4	Right front seat contacting strip	21 E
X55/4	Right front seat contacting strip	25 H
Z204/6	Circuit 31 left rear seat voltage distributor connector	12 L
Z53/28	Telematics circuit 31 interior solder point 2	11 H
Z53/28	Telematics circuit 31 interior solder point 2	25 E
Z53/29	Rear seat entertainment circuit 30 solder connector	1 E
Z53/29	Rear seat entertainment circuit 30 solder connector	26 E

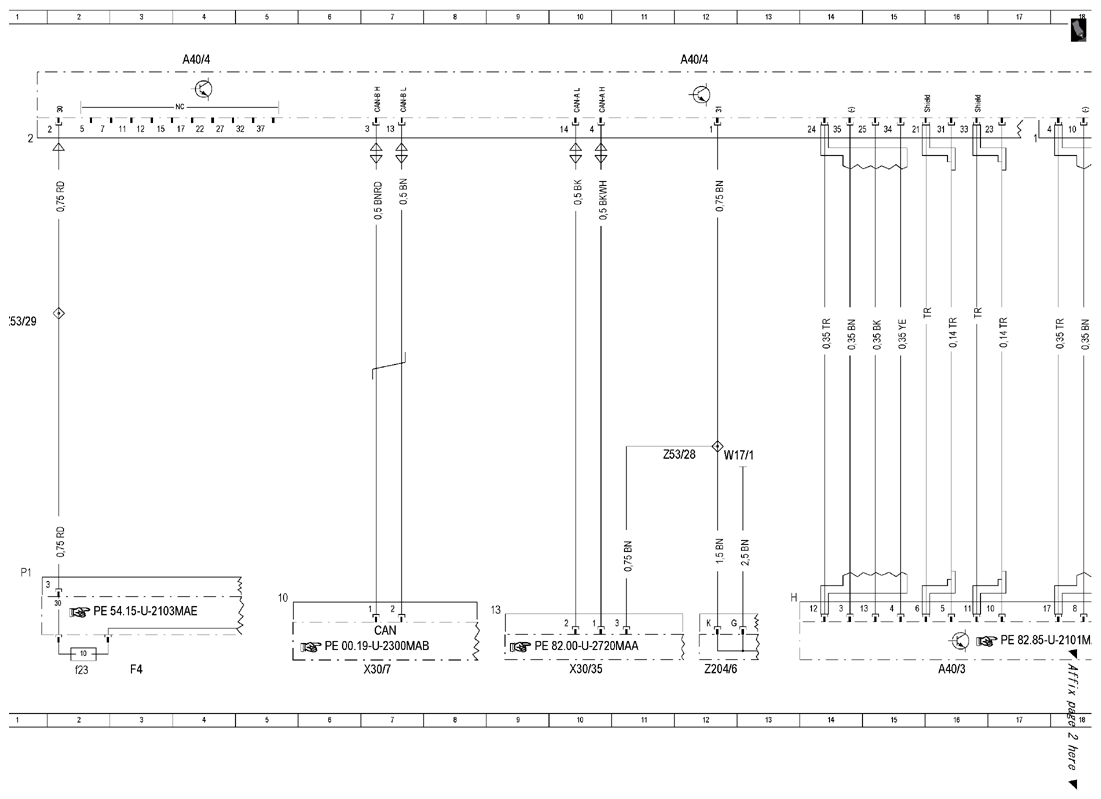

Fig 1: DVD Player Control Unit Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

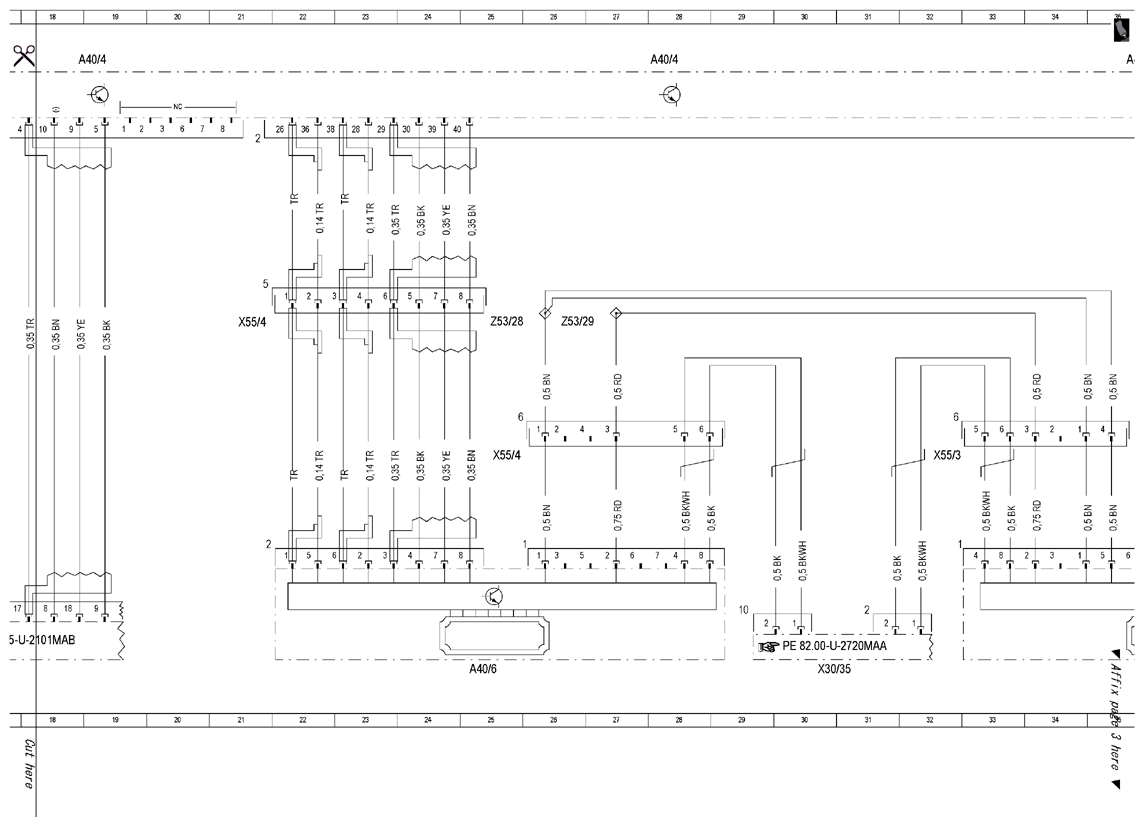

Fig 2: DVD Player Control Unit Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

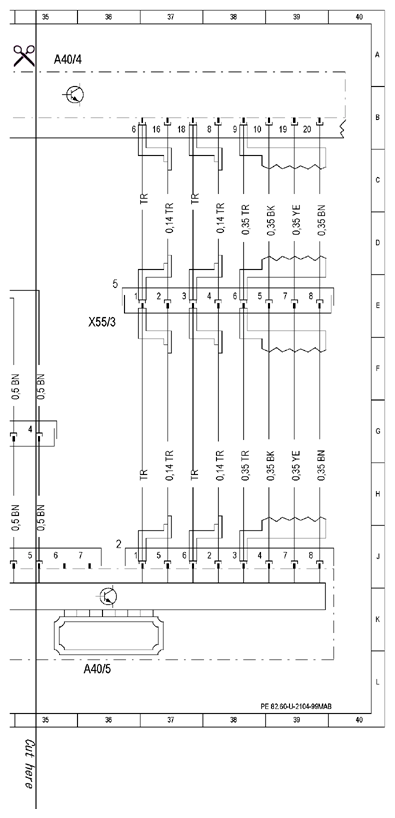

Fig 3: DVD Player Control Unit Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
