| A0 |
Color code key |
48L |

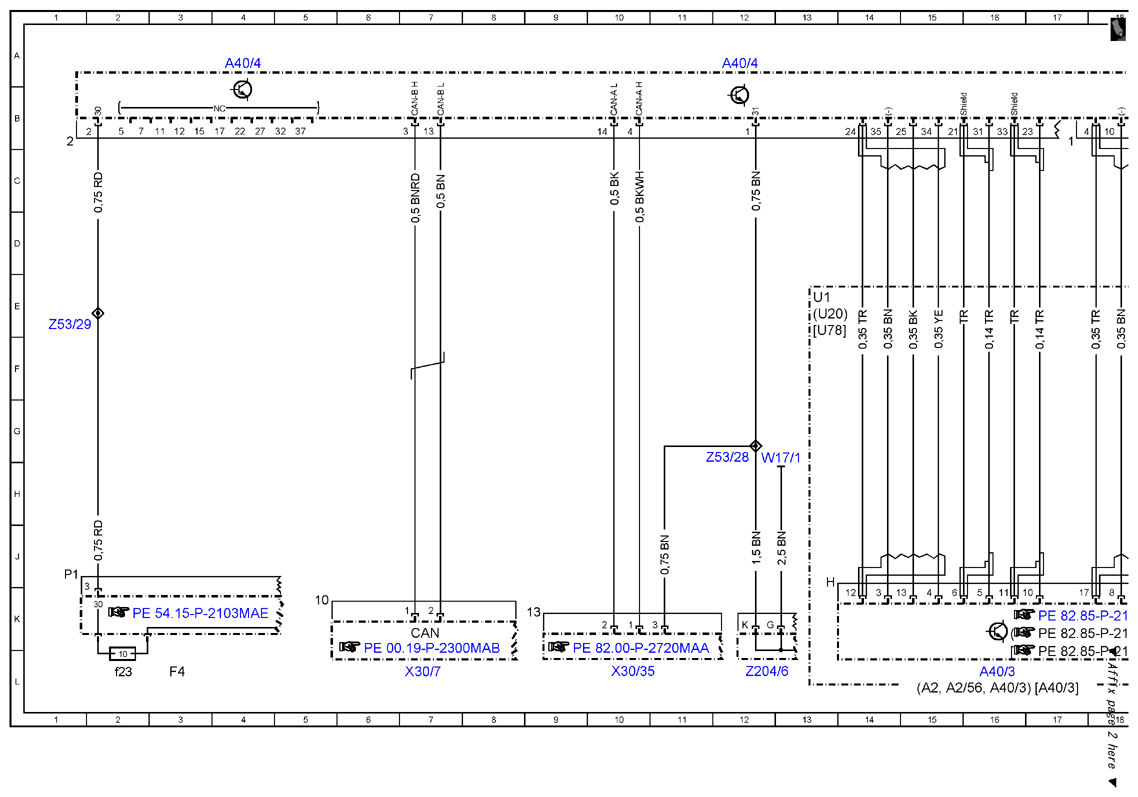

| A2 |
Radio |
15L |
| A2/56 |
Radio and navigation unit |
15L |
| A40/3 |
COMAND operating, display and control unit |
16L |
| A40/3 |
COMAND operating, display and control unit |
17L |
| A40/4 |
DVD player |
4A |
| A40/4 |
DVD player |
12A |
| A40/4 |
DVD player |
36A |

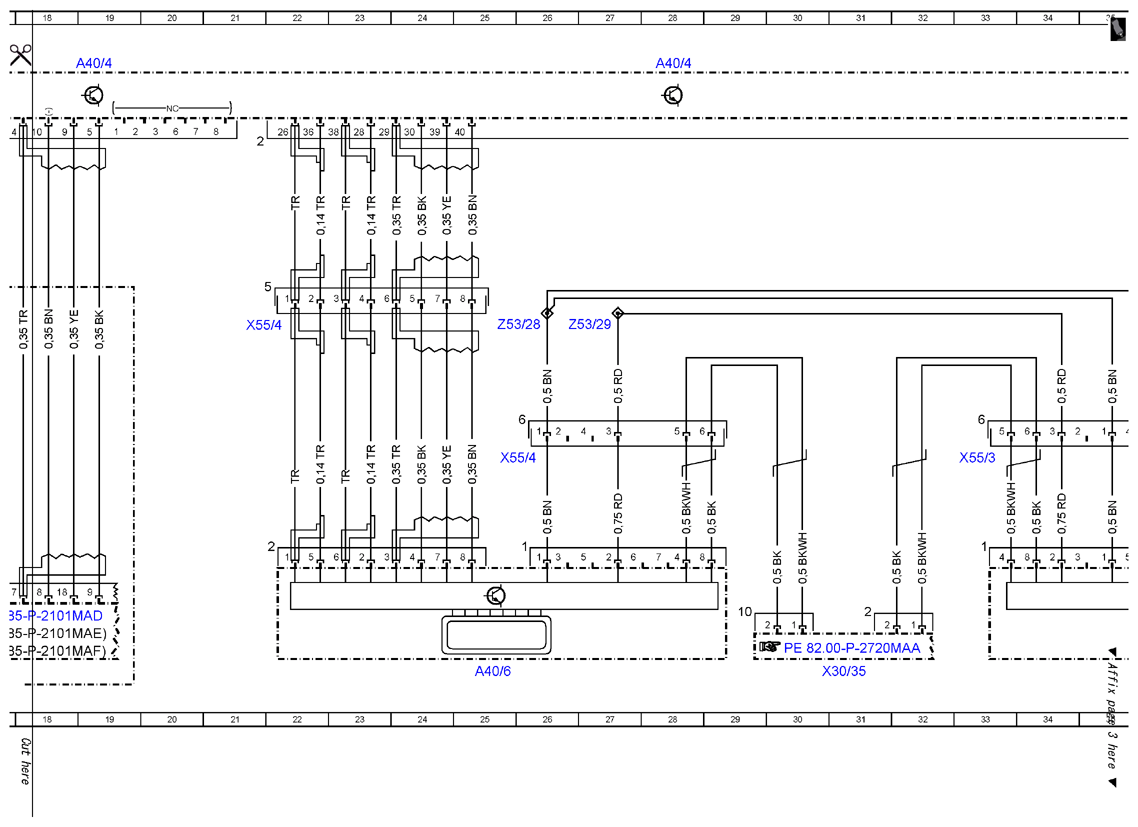

| A40/4 |
DVD player |
19A |
| A40/4 |
DVD player |
28A |
| A40/4 |
DVD player |
44A |

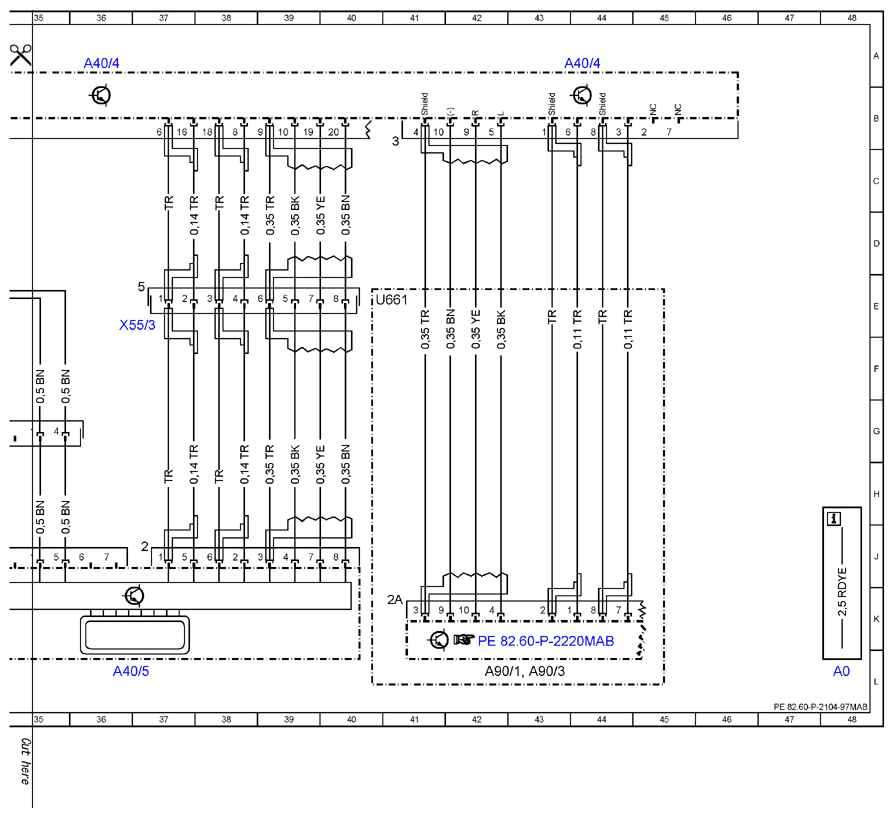

| A40/5 |
Left rear display |
36L |
| A40/6 |
Right rear display |
25L |
| A90/1 |
TV combination tuner (analog/digital) |
42L |
| A90/3 |
TV digital tuner |
43L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f23 |
Fuse 23 |
2L |
| U1 |
Valid for USA |
13E |
| U20 |
Valid for all (except USA Japan) |
13E |
| U661 |
Valid for TV and video in rear |
40E |
| U78 |
Valid for Japan |
13E |
| W17/1 |
Ground (left rear seat) |
12H |
| X30/35 |
Telematics CAN voltage distributor connector |
10L |
| X30/35 |
Telematics CAN voltage distributor connector |
31L |
| X30/7 |
Voltage distributor (CAN) connector |
7L |
| X55/3 |
Left front seat contacting strip |
33H |
| X55/3 |
Left front seat contacting strip |
37E |
| X55/4 |
Right front seat contacting strip |
21E |
| X55/4 |
Right front seat contacting strip |
26H |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
12L |
| Z53/28 |
Telematics circuit 31 interior solder point 2 |
12G |
| Z53/28 |
Telematics circuit 31 interior solder point 2 |
26E |
| Z53/29 |
Rear seat entertainment circuit 30 solder connector |
1E |
| Z53/29 |
Rear seat entertainment circuit 30 solder connector |
27E |
