| A0 |
Color code key |
48L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f35 |
Fuse 35 |
2L |
| H4/27 |
Center cockpit speaker (centerfill) |
35L |
| H4/29 |
Subwoofer |
12L |
| H4/29x1 |
Subwoofer connector |
11H |
| H4/3 |
Left rear door speaker |
25L |
| H4/33 |
Left front door tweeter |
21L |
| H4/34 |
Right front door tweeter |
24L |
| H4/35 |
Left rear door tweeter |
27L |
| H4/36 |
Right rear door tweeter |
30L |

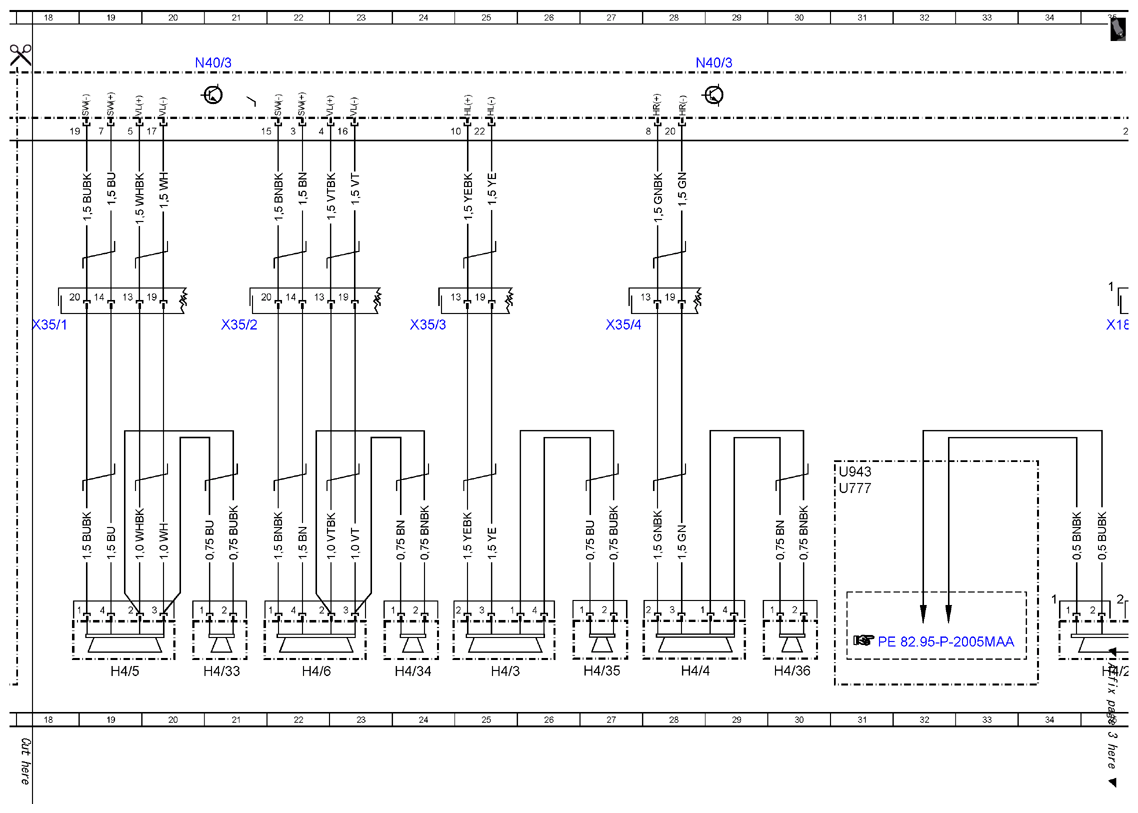

| H4/4 |
Right rear door speaker |
28L |
| H4/5 |
Left front door speaker |
19L |
| H4/54 |
Left rear surround speaker |
37L |
| H4/57 |
Right rear surround speaker |
38L |
| H4/6 |
Right front door speaker |
22L |

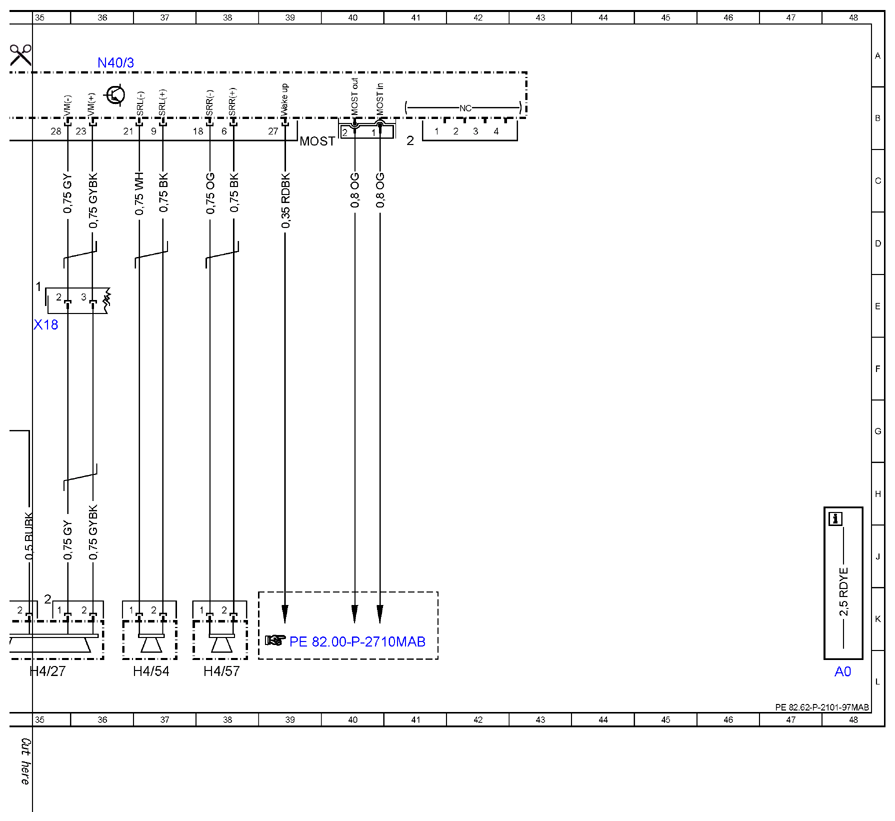

| MOST |
Media Oriented System Transport |
40B |
| N123/4 |
Emergency call system control unit |
15L |
| N40/3 |
Amplifier for sound system |
4A |
| N40/3 |
Amplifier for sound system |
21A |
| N40/3 |
Amplifier for sound system |
12A |
| N40/3 |
Amplifier for sound system |
29A |
| N40/3 |
Amplifier for sound system |
36A |

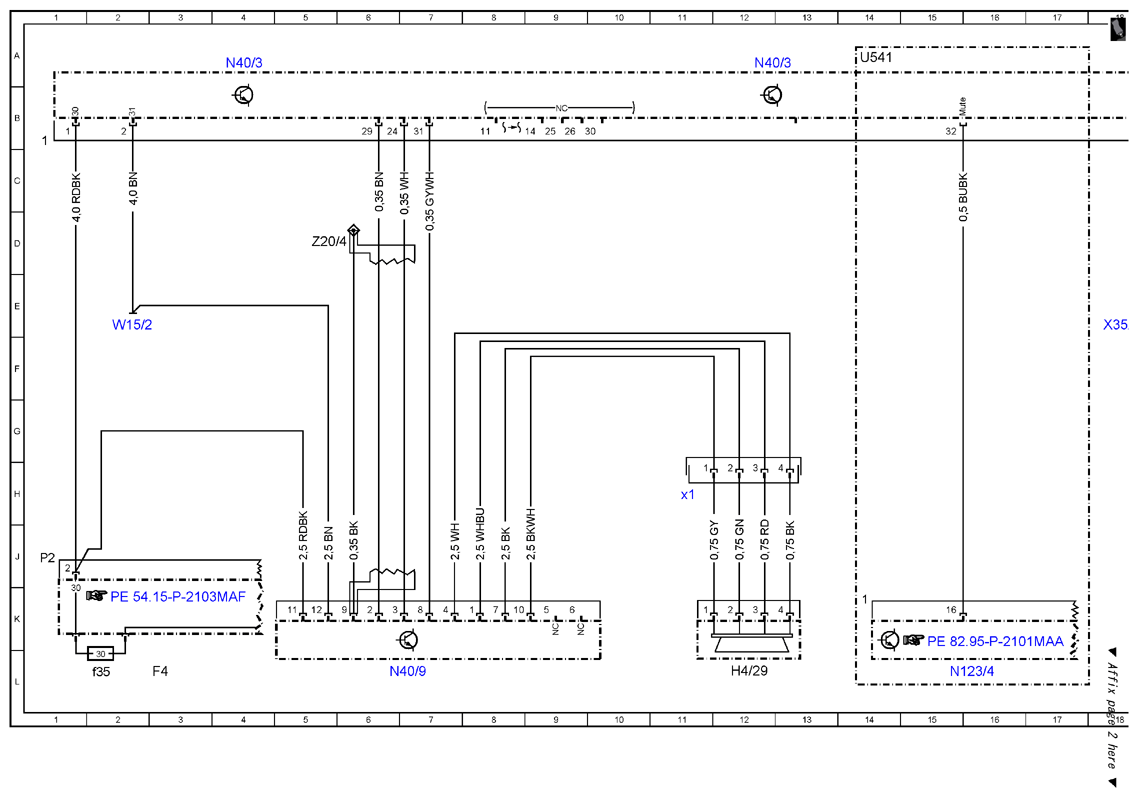

| N40/9 |
Subwoofer amplifier |
6L |
| U541 |
Valid for TELE AID emergency call system |
14A |
| U777 |
Valid for navigation |
31H |
| U943 |
Valid for South Korea |
31H |
| W15/2 |
Ground (left footwell) |
2E |
| X18 |
Interior/cockpit connector |
35E |
| X35/1 |
Left front door separation point |
18E |
| X35/2 |
Right front door separation point |
21E |
| X35/3 |
Left rear door separation point |
24E |
| X35/4 |
Right rear door separation point |
27E |
| Z20/4 |
Cable end insulation not stripped, placed inside insulated tubing |
5D |
