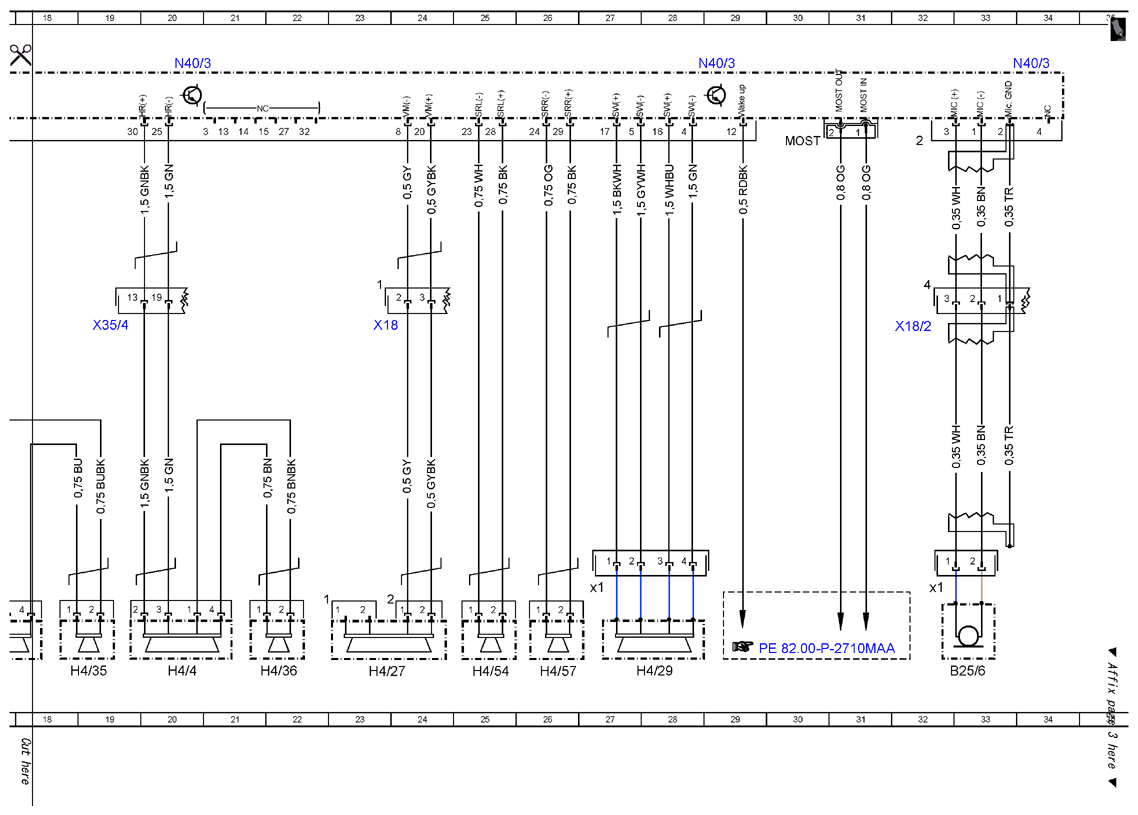

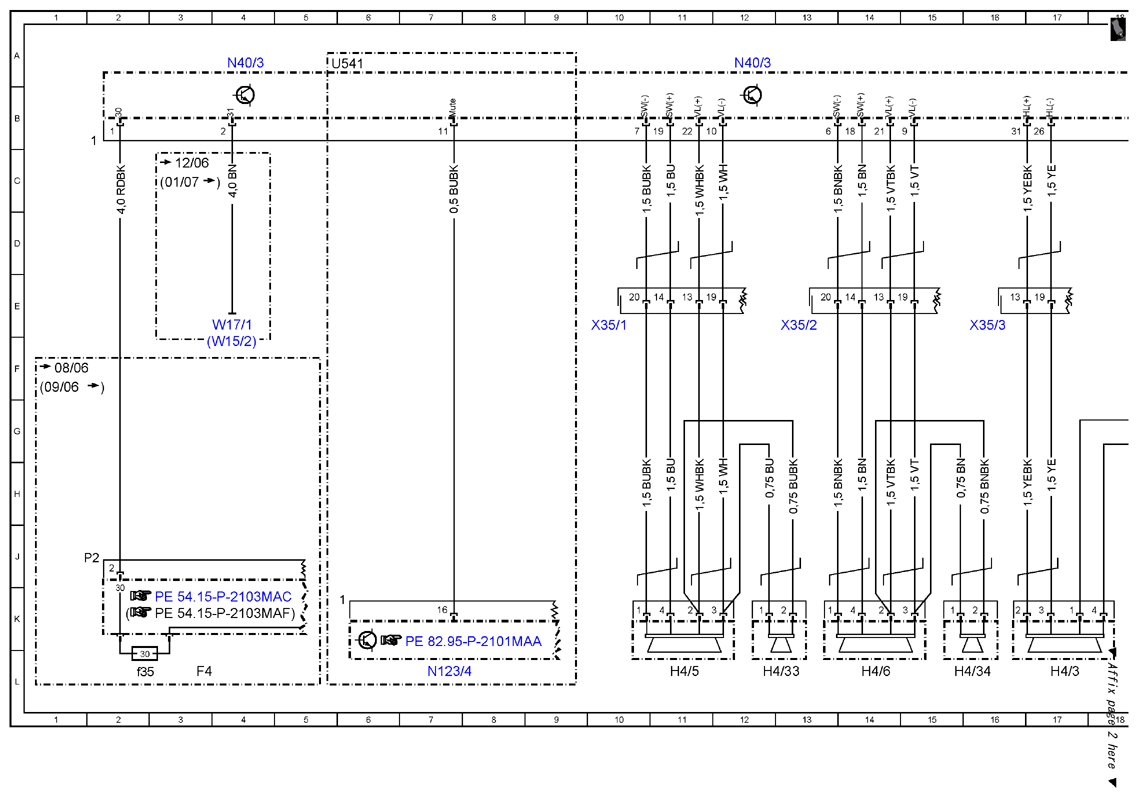

| A0 |
Color code key |
40L |
| B25/6 |
Sound amplifier microphone |
33L |
| B25/6x1 |
Sound amplifier microphone connector |
33K |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f35 |
Fuse 35 |
2L |
| H4/27 |
Center cockpit speaker (centerfill) |
23L |
| H4/29 |
Subwoofer |
28L |
| H4/29x1 |
Subwoofer connector |
27K |
| H4/3 |
Left rear door speaker |
17L |
| H4/33 |
Left front door tweeter |
12L |
| H4/34 |
Right front door tweeter |
16L |
| H4/35 |
Left rear door tweeter |
19L |
| H4/36 |
Right rear door tweeter |
22L |
| H4/4 |
Right rear door speaker |
20L |
| H4/5 |
Left front door speaker |
11L |
| H4/54 |
Left rear surround speaker |
25L |
| H4/57 |
Right rear surround speaker |
26L |
| H4/6 |
Right front door speaker |
14L |
| MOST |
Media Oriented System Transport |
30B |
| N123/4 |
Emergency call system control unit |
7L |
| N40/3 |
Amplifier for sound system |
20A |
| N40/3 |
Amplifier for sound system |
4A |
| N40/3 |
Amplifier for sound system |
12A |
| N40/3 |
Amplifier for sound system |
29A |
| N40/3 |
Amplifier for sound system |
34A |
| U541 |
Valid for TELE AID emergency call system |
5A |
| W15/2 |
Ground (left footwell) |
4F |
| W17/1 |
Ground (left rear seat) |
4E |
| X18 |
Interior/cockpit connector |
23E |
| X18/2 |
Interior/roof connector |
32E |
| X35/1 |
Left front door separation point |
10E |
| X35/2 |
Right front door separation point |
13E |
| X35/3 |
Left rear door separation point |
16E |
| X35/4 |
Right rear door separation point |
19E |
