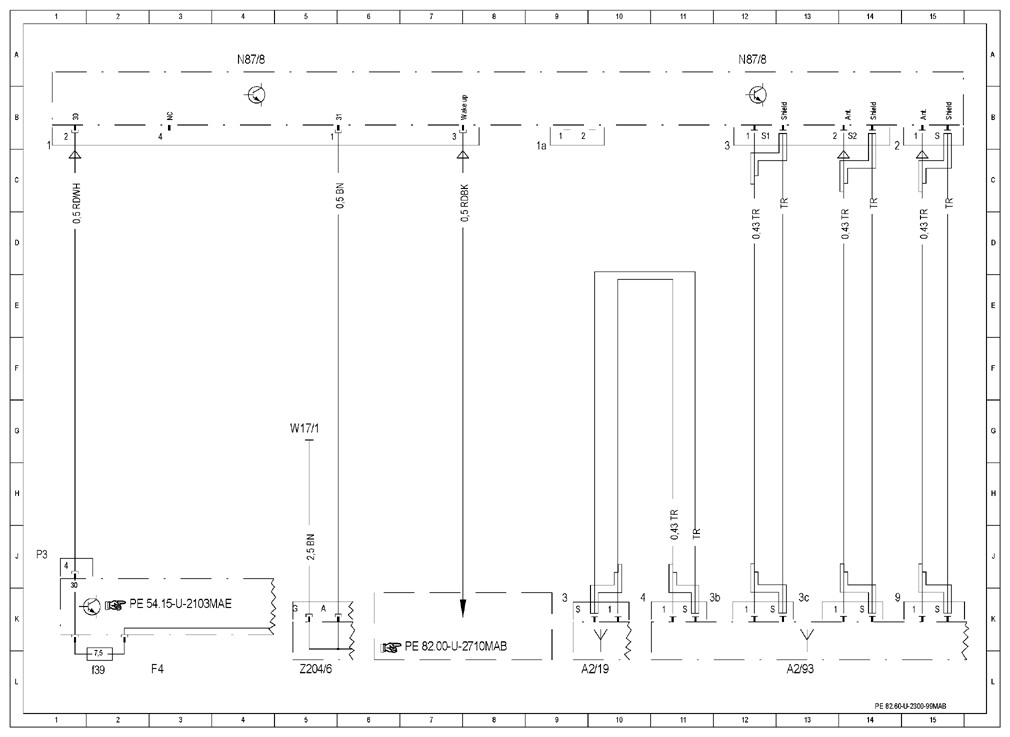

Satellite Digital Audio Radio System (SDAR) wiring diagram - PE82.60-U-2300-99MAB
| Code: | Designation: | Position: |
|---|---|---|
| A2/19 | FM rear window antenna amplifier | 9 L |
| A2/93 | Roof antenna module | 13 L |
| F4 | Load compartment fuse and relay box | 3 L |
| F4f39 | Fuse 39 | 2 L |
| N87/8 | High-definition tuner control unit | 4 A |
| N87/8 | High-definition tuner control unit | 12 A |
| W17/1 | Ground (left rear seat) | 5 G |
| Z204/6 | Circuit 31 left rear seat voltage distributor connector | 5 L |
