Satellite Digital Audio Radio System (SDAR) wiring diagram - PE82.60-U-2300-99MAA

Code:	Designation:	Position:
A2/93	Roof antenna module	12 L
F4	Load compartment fuse and relay box	4 L
F4f39	Fuse 39	3 L
N87/5	SDAR control unit	4 A
N87/5	SDAR control unit	12 A
W17/1	Ground (left rear seat)	6 H
Z204/6	Circuit 31 left rear seat voltage distributor connector	6 L

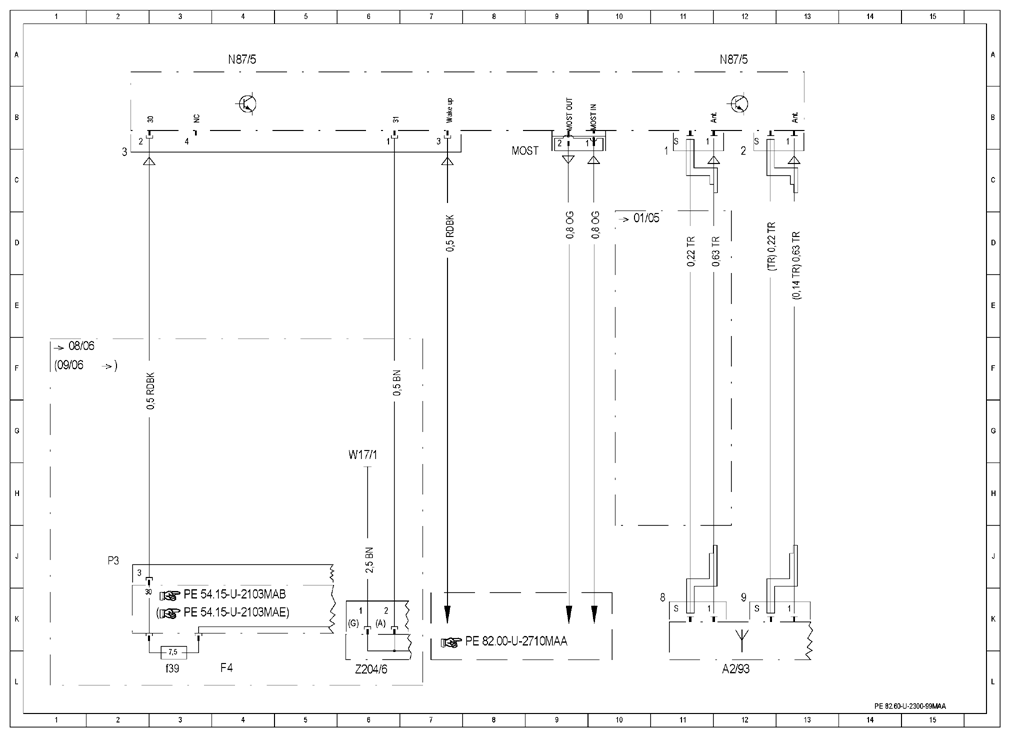

Fig 1: Satellite Digital Audio Radio System Wiring Diagram

Courtesy of MERCEDES-BENZ USA
