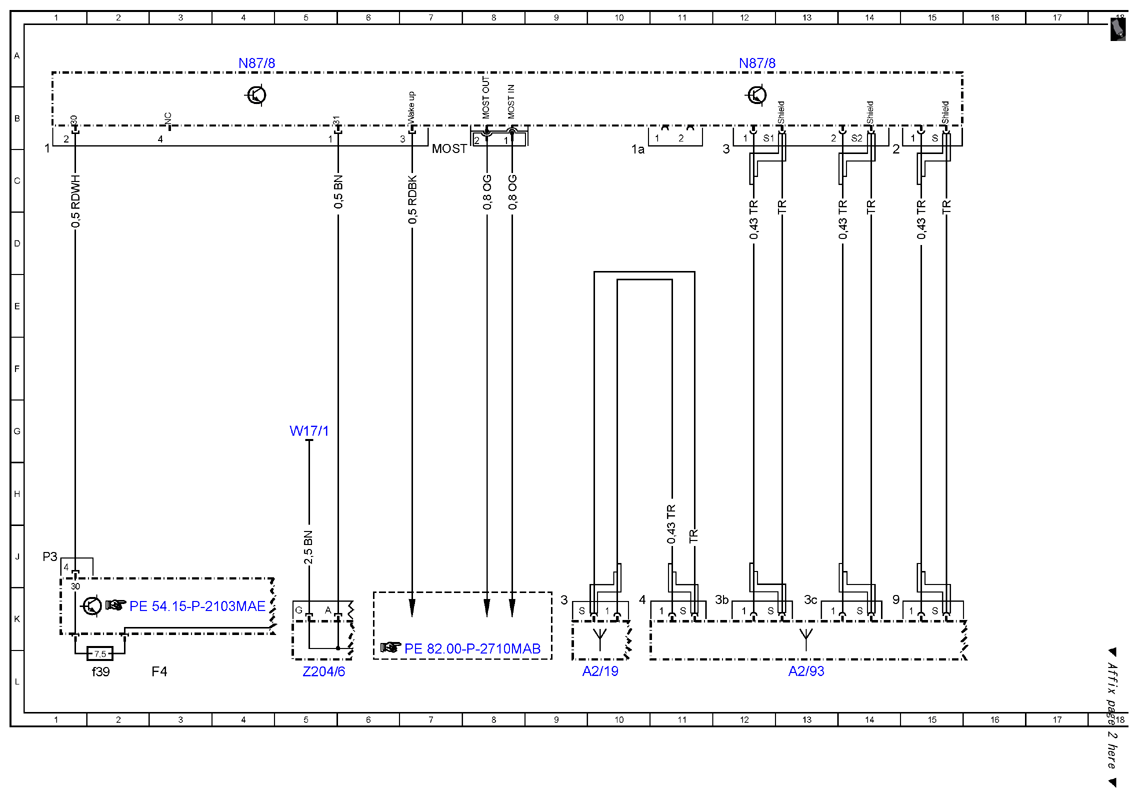

Satellite Digital Audio Radio System (SDAR) wiring diagram - PE82.60-P-2300-97MAB
| Code: | Designation: | Position: |
|---|---|---|

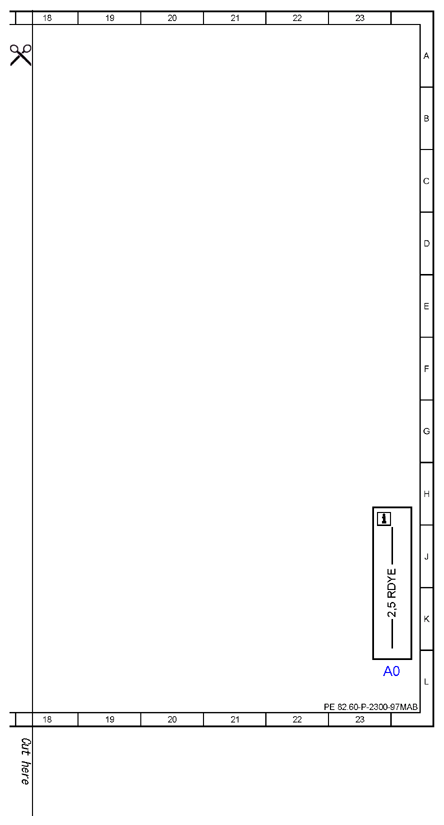

| A0 | Color code key | 23L |
| A2/19 | FM rear window antenna amplifier | 10L |
| A2/93 | Roof antenna module | 13L |
| F4 | Load compartment fuse and relay box | 3L |
| F4f39 | Fuse 39 | 2L |
| MOST | Media Oriented System Transport | 8B |
| N87/8 | High-definition tuner control unit | 12A |
| N87/8 | High-definition tuner control unit | 4A |
| W17/1 | Ground (left rear seat) | 5G |
| Z204/6 | Circuit 31 left rear seat voltage distributor connector | 5L |
