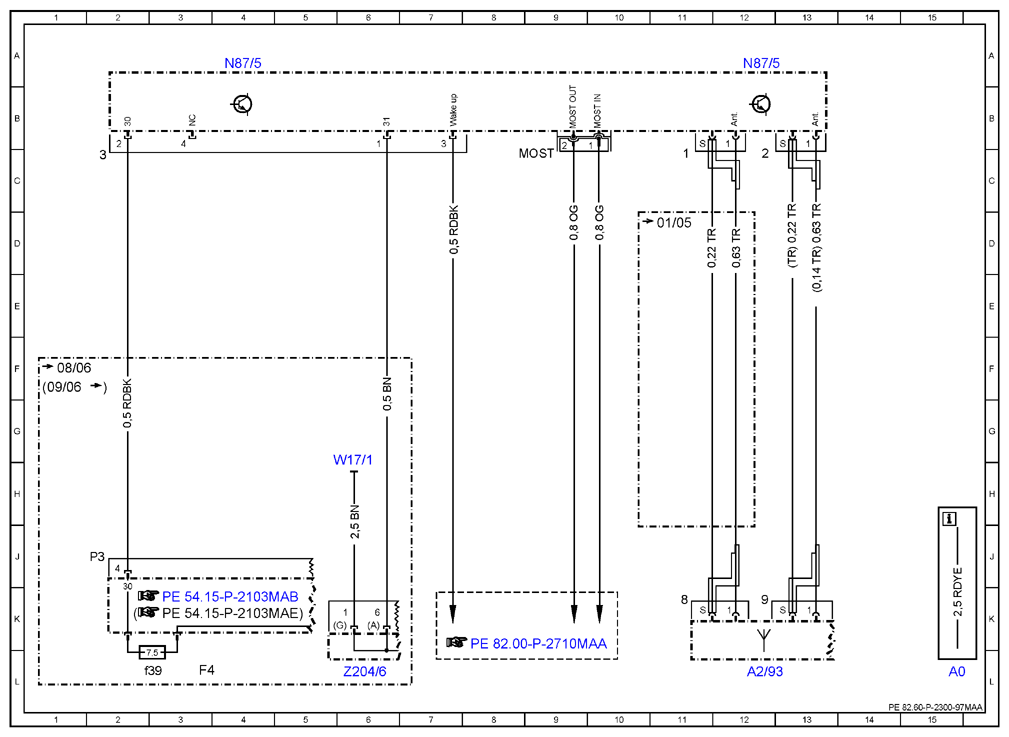

Satellite Digital Audio Radio System (SDAR) wiring diagram - PE82.60-P-2300-97MAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2/93 | Roof antenna module | 12L |
| F4 | Load compartment fuse and relay box | 3L |
| F4f39 | Fuse 39 | 3L |
| MOST | Media Oriented System Transport | 9B |
| N87/5 | SDAR control unit | 4A |
| N87/5 | SDAR control unit | 12A |
| W17/1 | Ground (left rear seat) | 6H |
| Z204/6 | Circuit 31 left rear seat voltage distributor connector | 6L |
