Electrical function schematic for mobile phone, switch on and switch off characteristics - PE82.70-P-2054-97MAB

Code:	Designation:	Position:
1	Telephone, signal	9B
1	Telephone, signal	7G
1	Telephone, signal	7C
1	Telephone, signal	5B
2	Circuit 15R, status	5H
3	Instrument cluster, message	11H
4	Switch on/off, signal	7G
4	Switch on/off, signal	7D
4	Switch on/off, signal	6B
A1	Instrument cluster	12H
A2/93a3	Telephone antenna	10B
A40/3	COMAND operating, display and control unit	7H
A8/1	Transmitter key	3J
CAN B	Interior CAN	4J
CAN B	Interior CAN	10J
N123/6	Communication control unit	7E
N73	EIS [EZS] control unit	2H
X39/37	CTEL separation point	7B

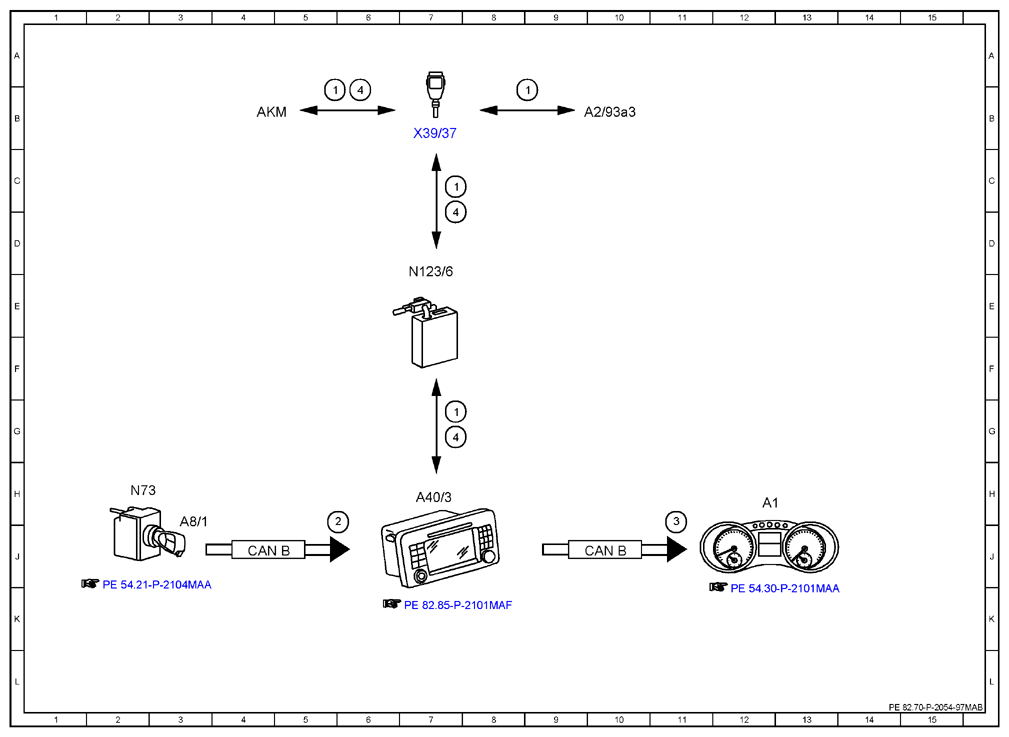

Fig 1: Mobile Phone, Switch On And Off Characteristics Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
