Electrical function schematic for mobile phone, switch on and switch off characteristics - PE82.70-P-2054-97MAA

Code: Designation: Position:
1 Telephone, signal 11D
1 Telephone, signal 18F
1 Telephone, signal 19H
1 Telephone, signal 20H
1 Telephone, signal 21F
1 Telephone, signal 21G
2 Bluetooth, signal 14D
3 Circuit 15R, status 5G
4 Instrument cluster, message 12G
5 Voice input, signal 5E
5 Voice input, signal 17E
A1 Instrument cluster 14G
A2 Radio 8C
A2/53 Telephone/portable CTEL/STH radio remote control antenna splitter 21H
A2/56 Radio and navigation unit 8F
A2/91 Bluetooth antenna 12E
A2/93a3 Telephone antenna 21F
A28/3 E-net compensator 18G
A34/15 UHI portable CTEL holder (Universal Handy Interface) 16D
A34/7 Bluetooth module 16E
A40/3 COMAND operating, display and control unit 8J
A40/3 COMAND operating, display and control unit 8H
A67b1 Hands-free system microphone group 2F
A8/1 Transmitter key 3H
CAN B Interior CAN 4H
CAN B Interior CAN 11H
Code 228 Stationary heater 19C
Code 386 Mobile phone preinstallation with universal interface 16B
Code 389 Mobile phone preinstallation with universal interface, USA/Canada 16B
Code 510 Audio 20 with CD changer 6B
Code 511 Audio 50 APS incl. DVD changer 6E
Code 512 COMAND APS with DVD changer 6H
Code 523 Audio 20 radio 6C
Code 525 Audio 50 APS radio (CD) 6F
Code 527 COMAND APS (with navigation) 6H
Code 528 HIGH Class USA 6J
N73 EIS [EZS] control unit 2G

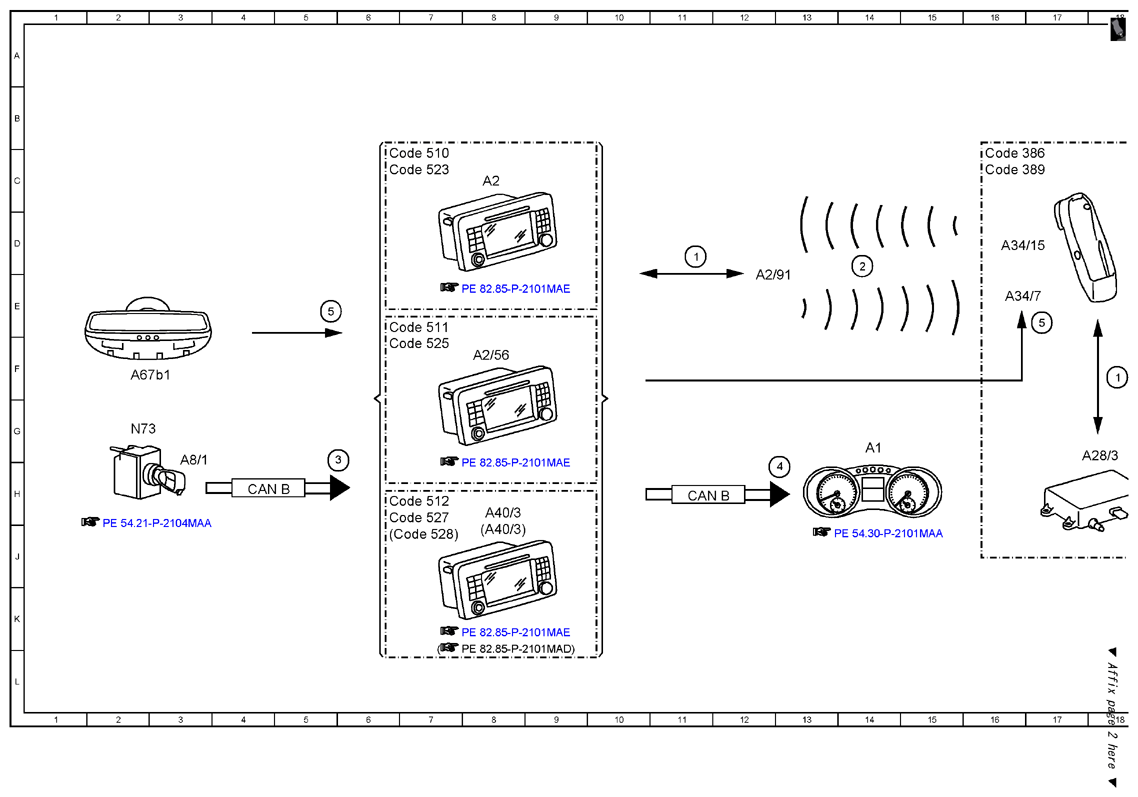

Fig 1: Mobile Phone, Switch On And Off Characteristics Electrical Function Schematic (1 Of 2)
G10118661Courtesy of MERCEDES-BENZ USA

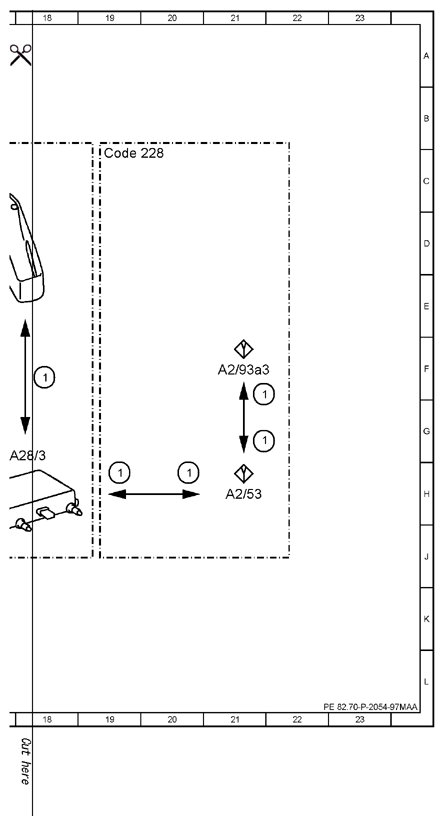

Fig 2: Mobile Phone, Switch On And Off Characteristics Electrical Function Schematic (2 Of 2)
G10118662Courtesy of MERCEDES-BENZ USA
